Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Grounds >> G103 >> With Digital Cluster

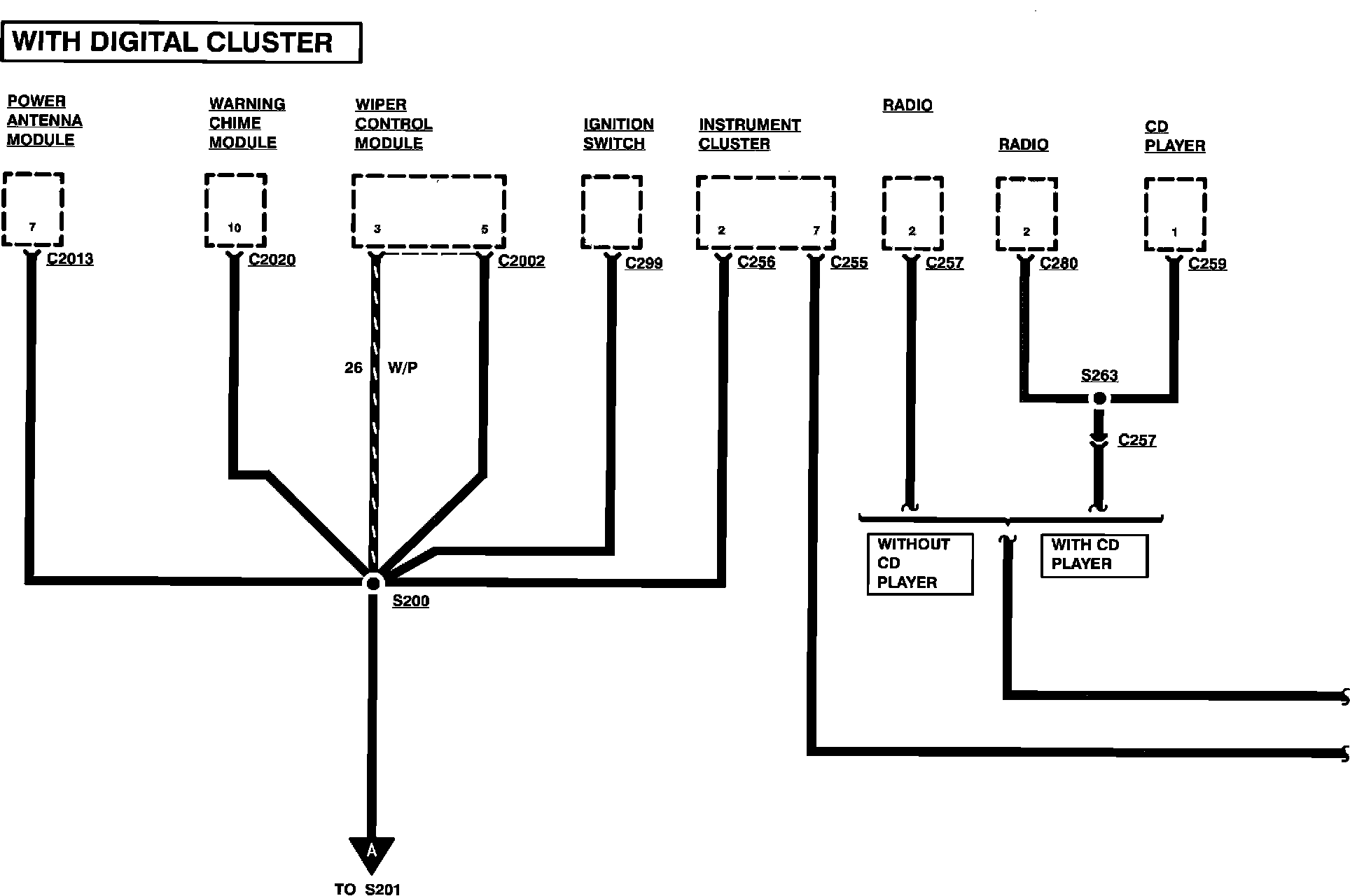

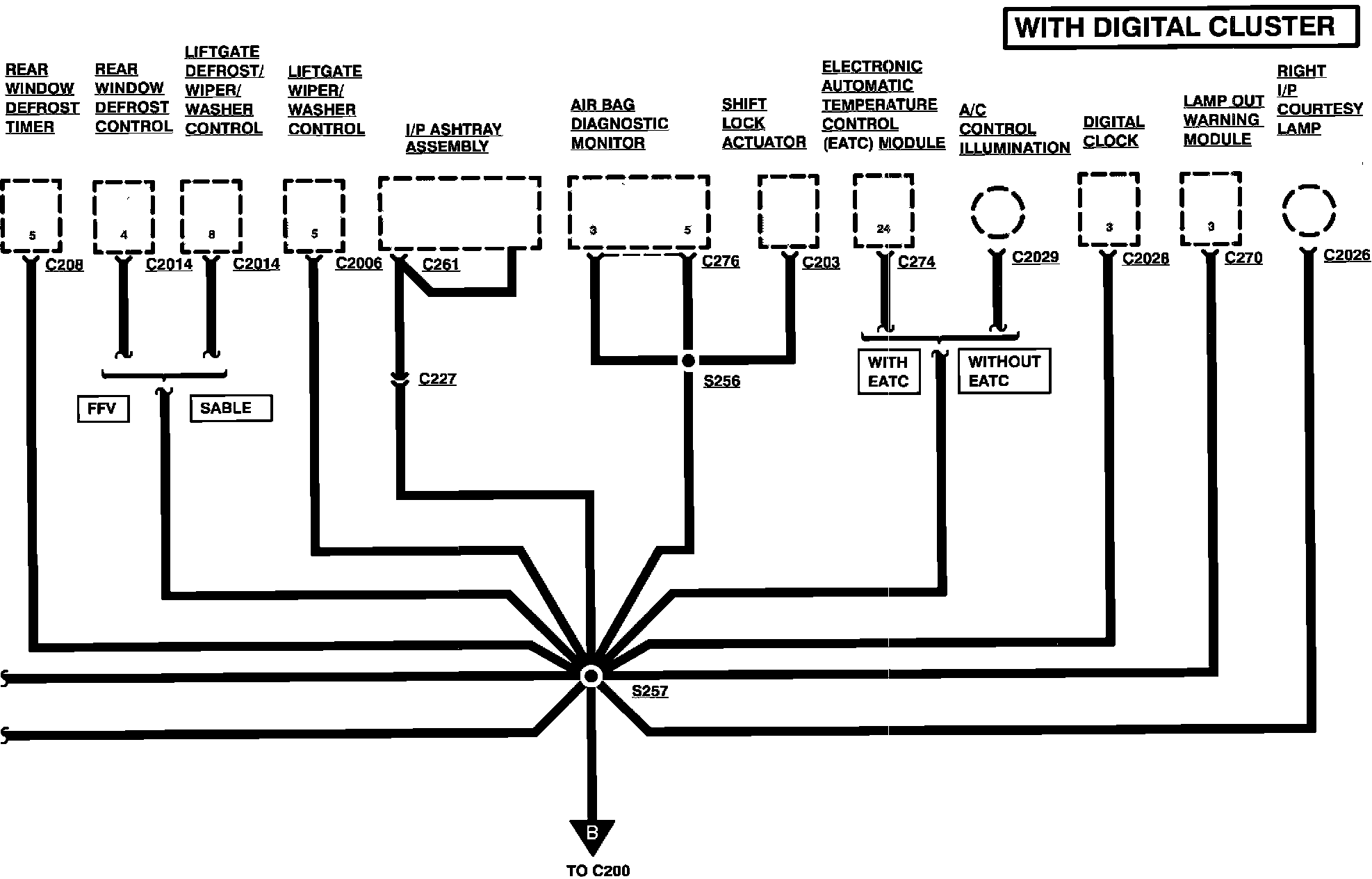

With Digital Cluster

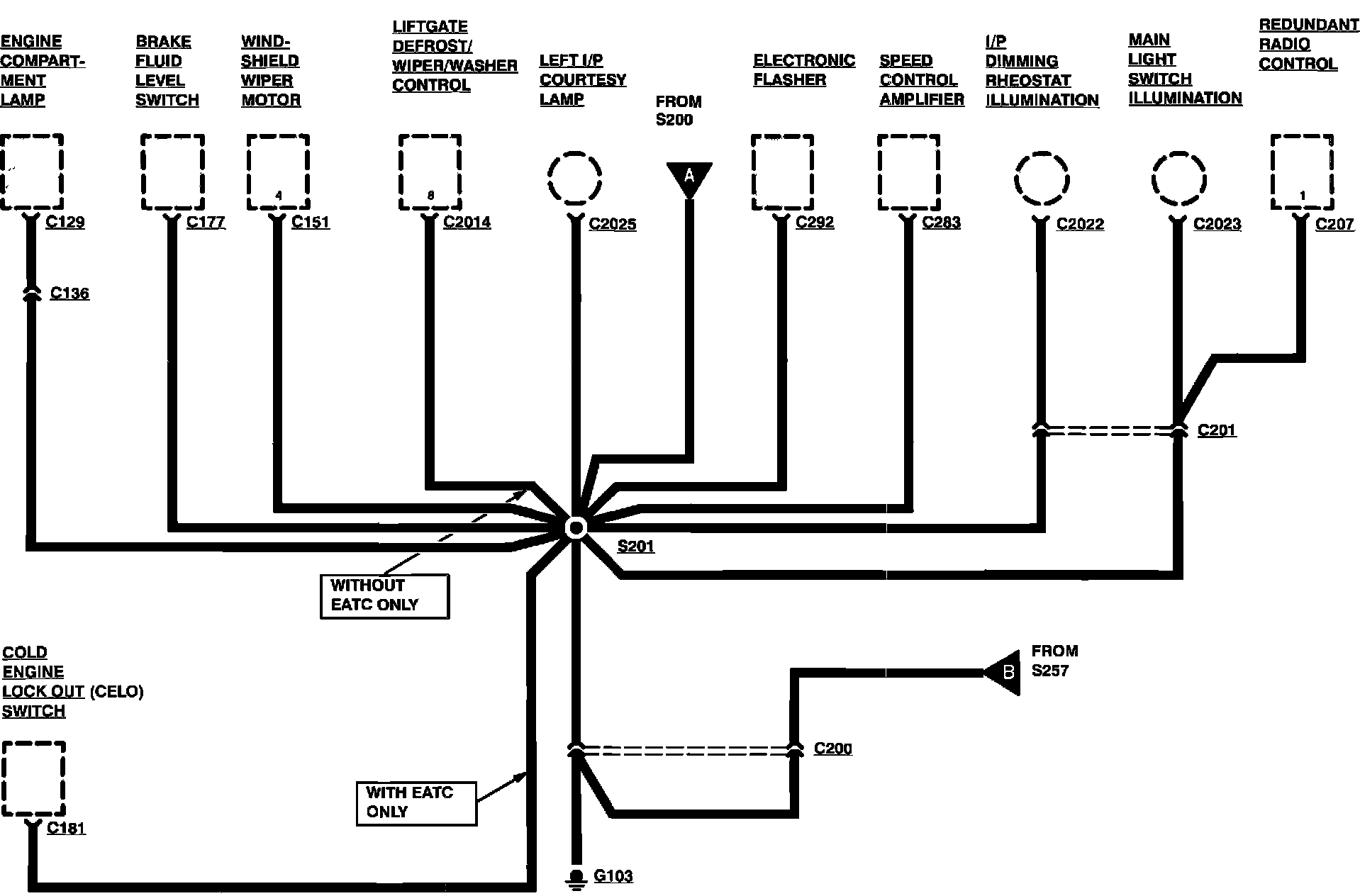

Grounds:






Grounds:






Grounds:






Grounds:
