Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination >> Without Autolamps

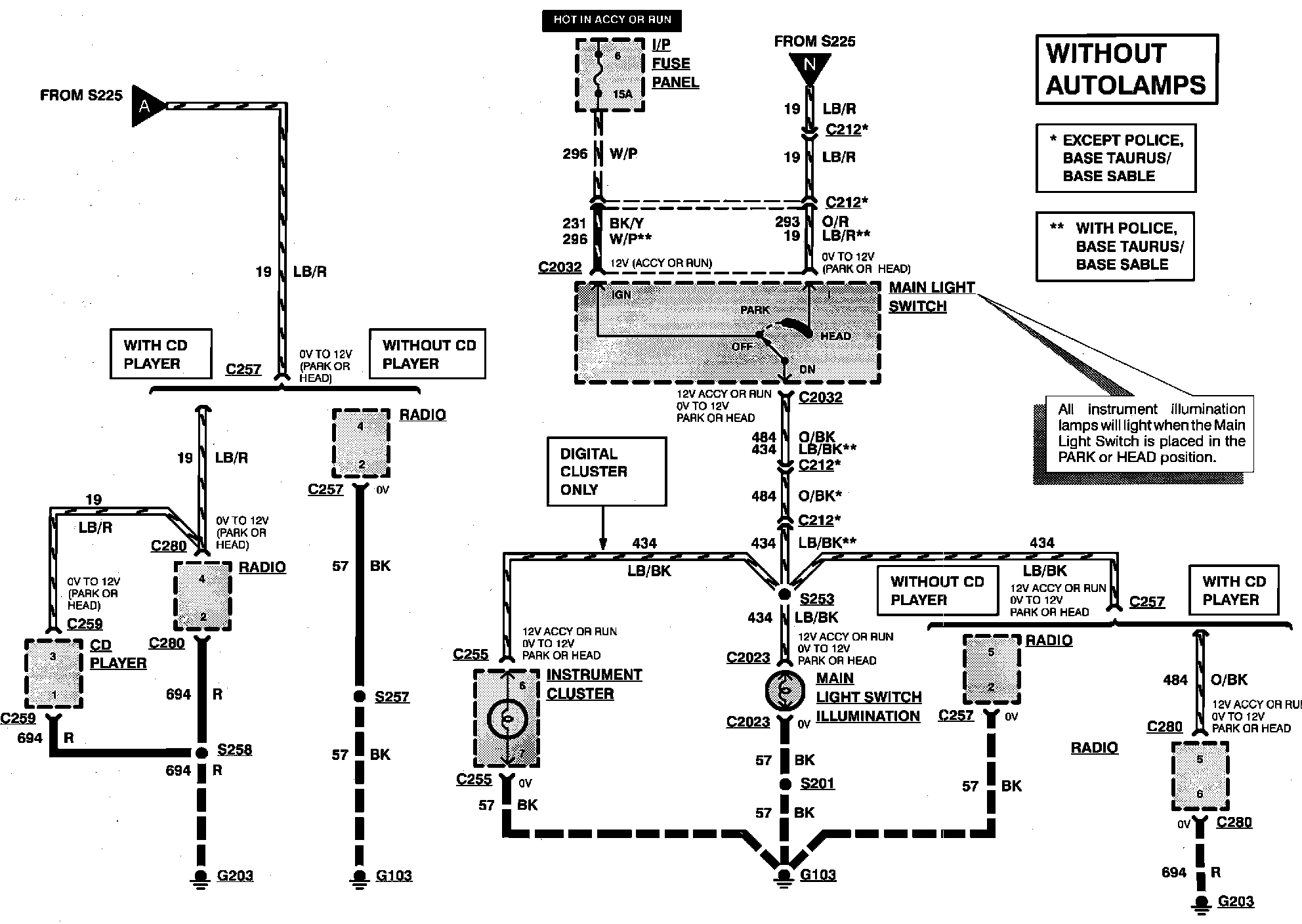

Without Autolamps

Instrument Illumination:





Instrument Illumination:





Instrument Illumination:
