Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Daytime Running Lamp

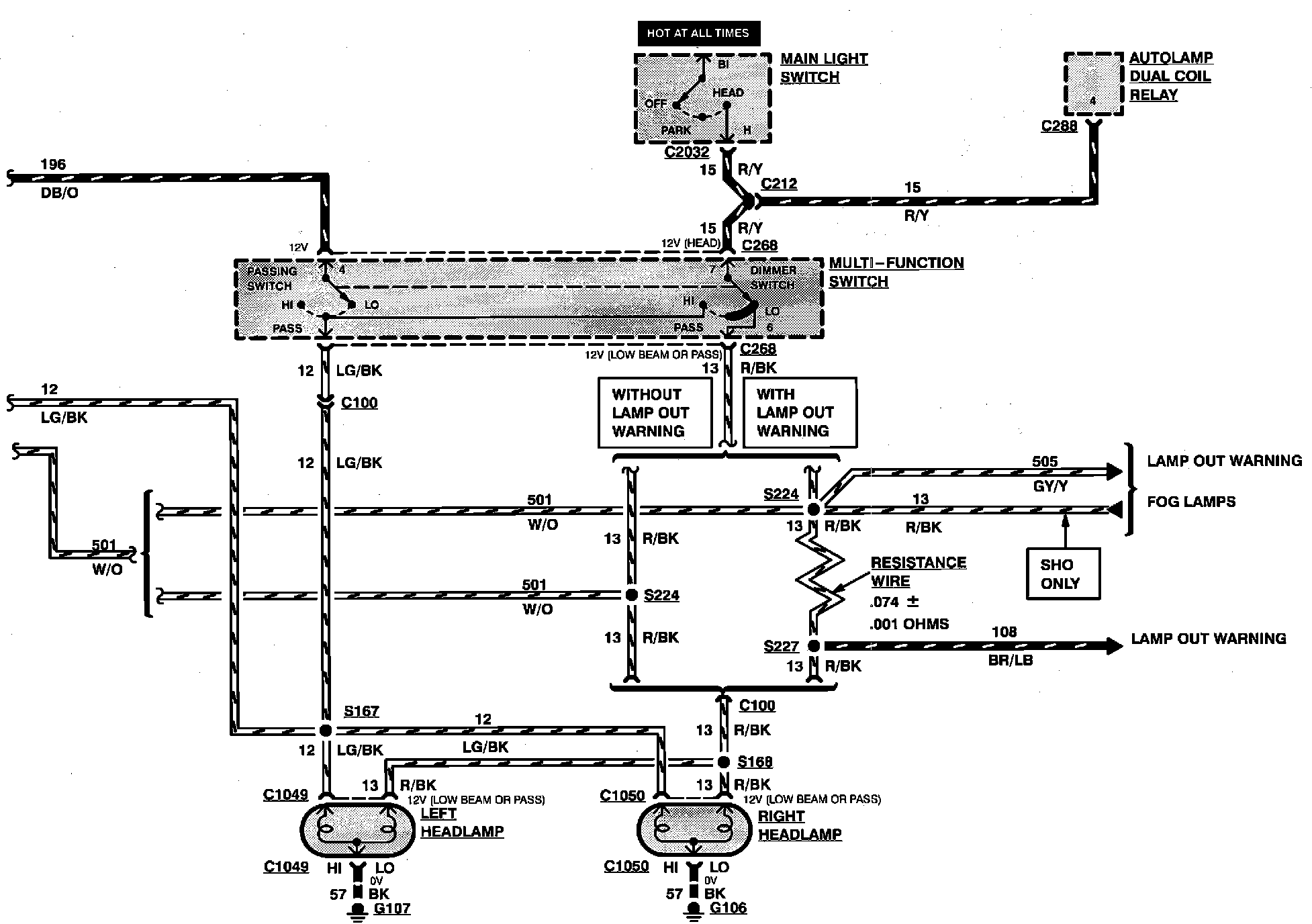

Daytime Running Lamp

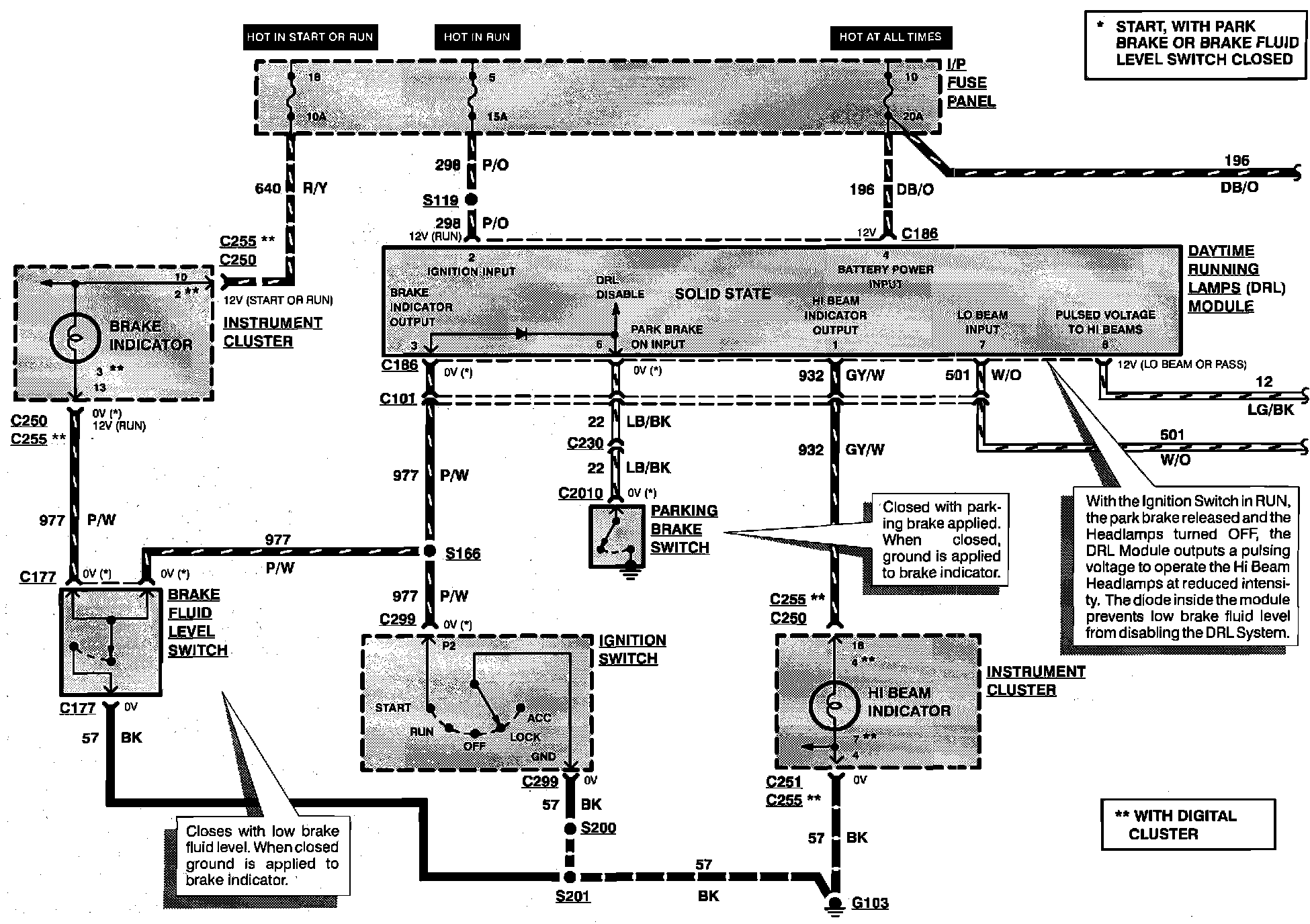

Daytime Running Lamps:



Daytime Running Lamps:
