System Diagram

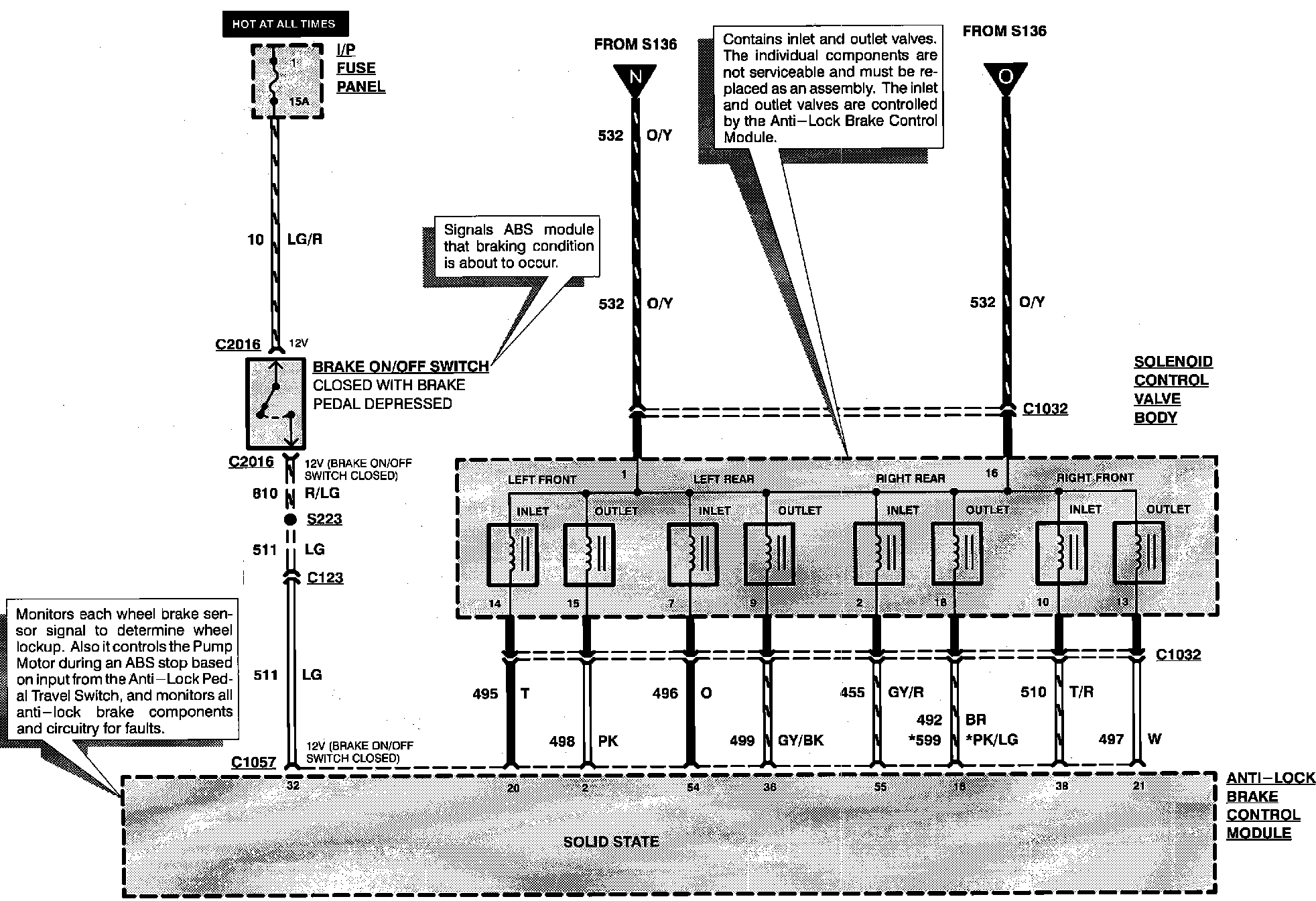

Anti-Lock Brake System:

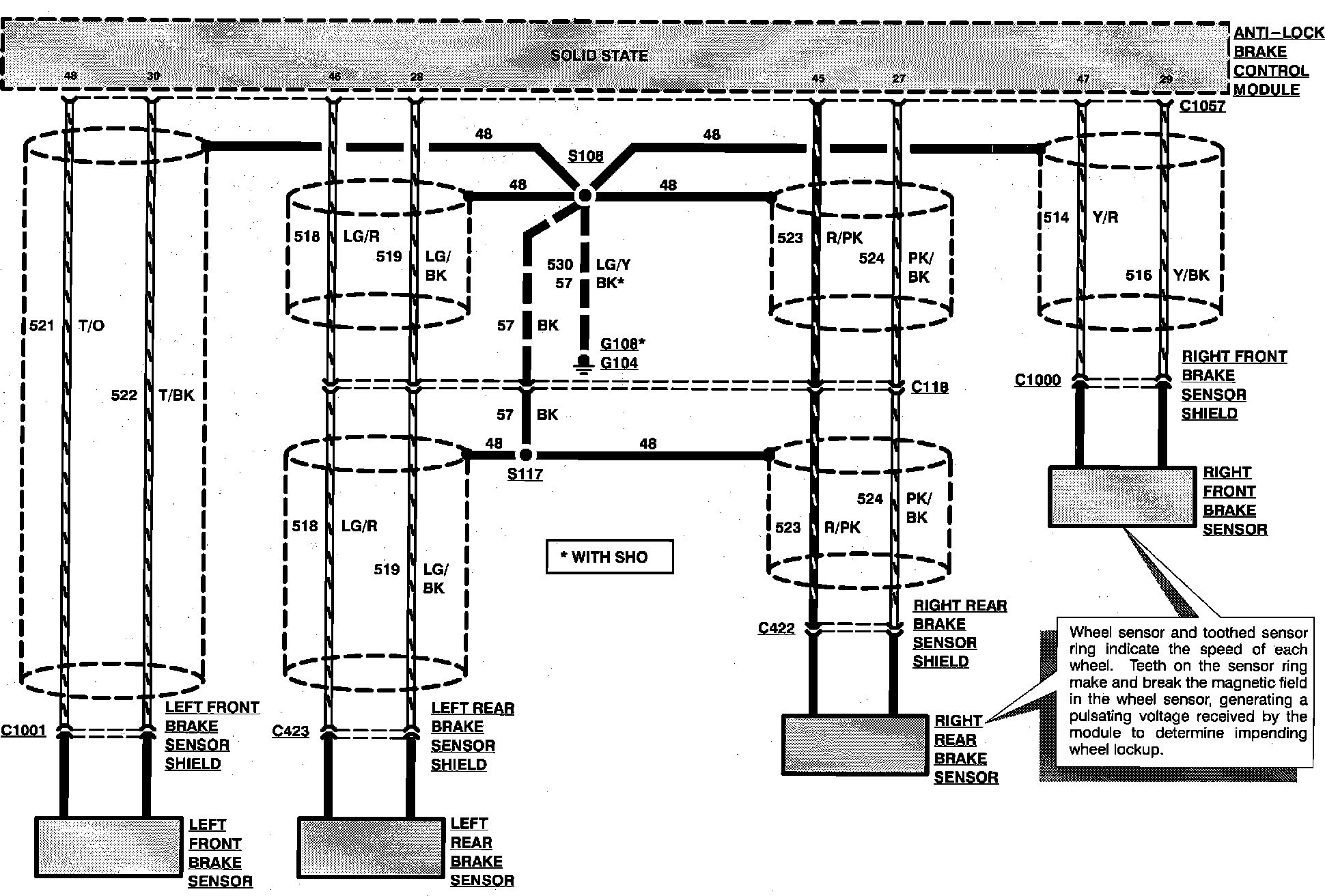

Anti-Lock Brake System:

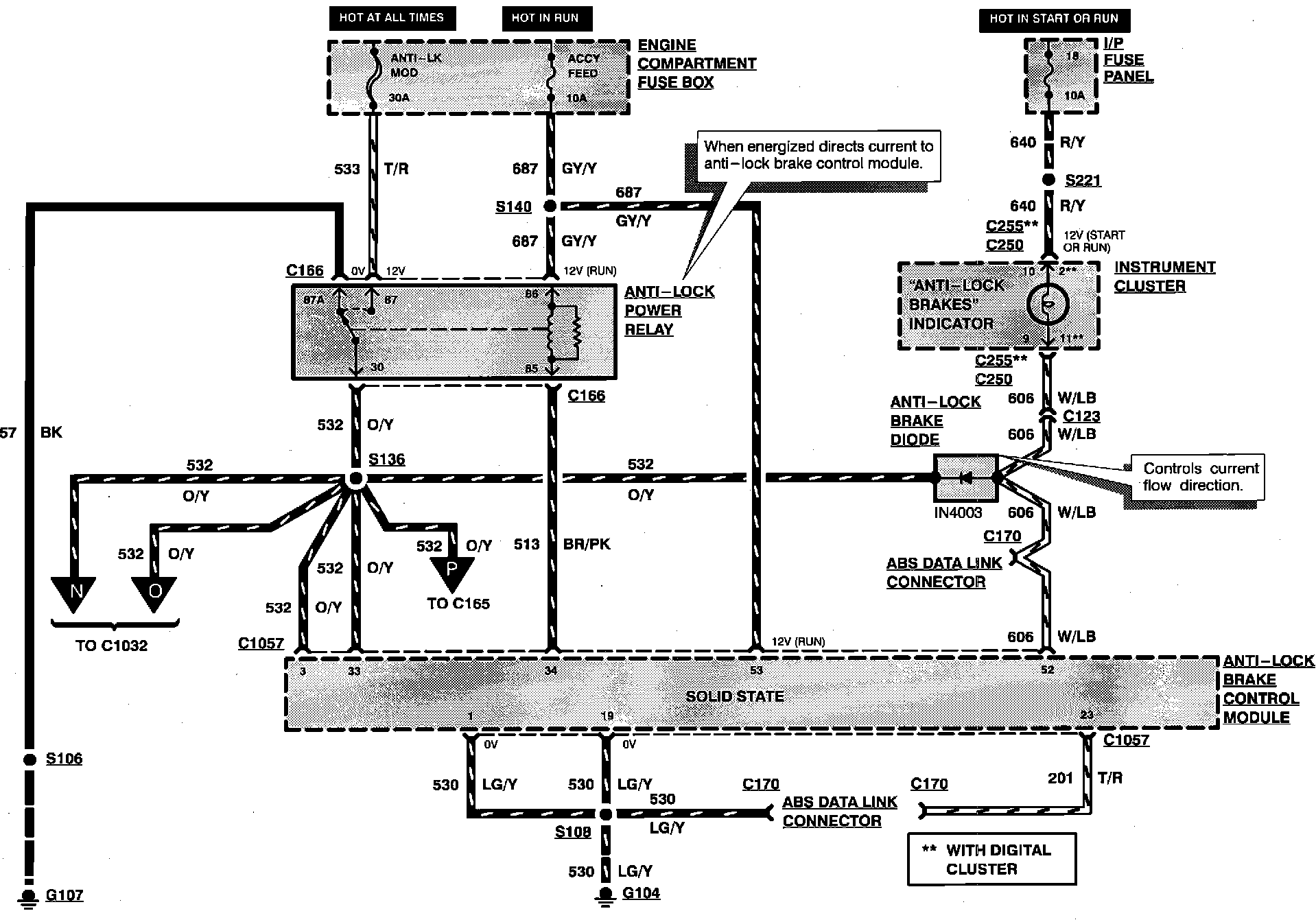

Anti-Lock Brake System:

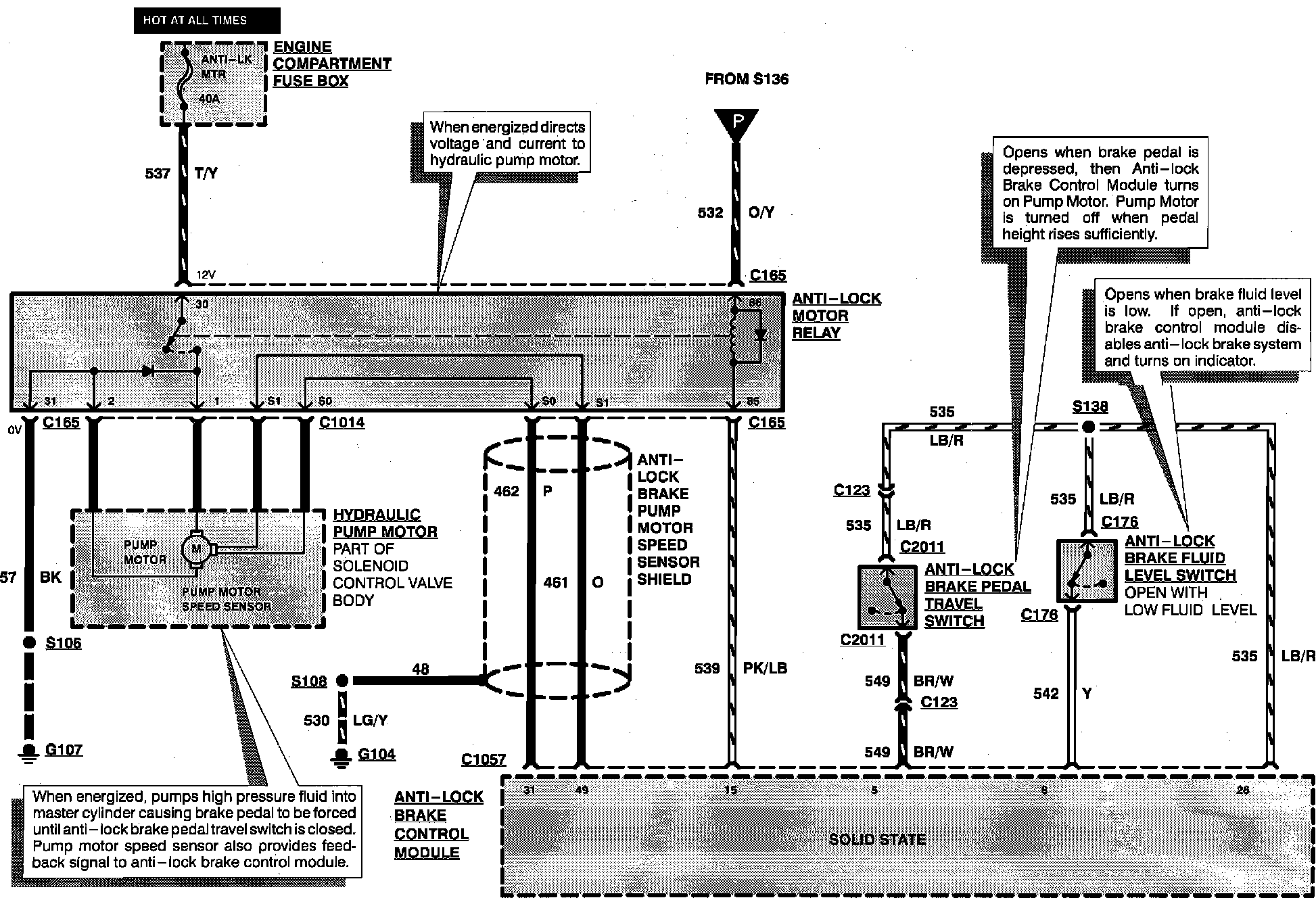

Anti-Lock Brake System:
