Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> D: Does Not Disengage When Brakes Applied

D: Does Not Disengage When Brakes Applied

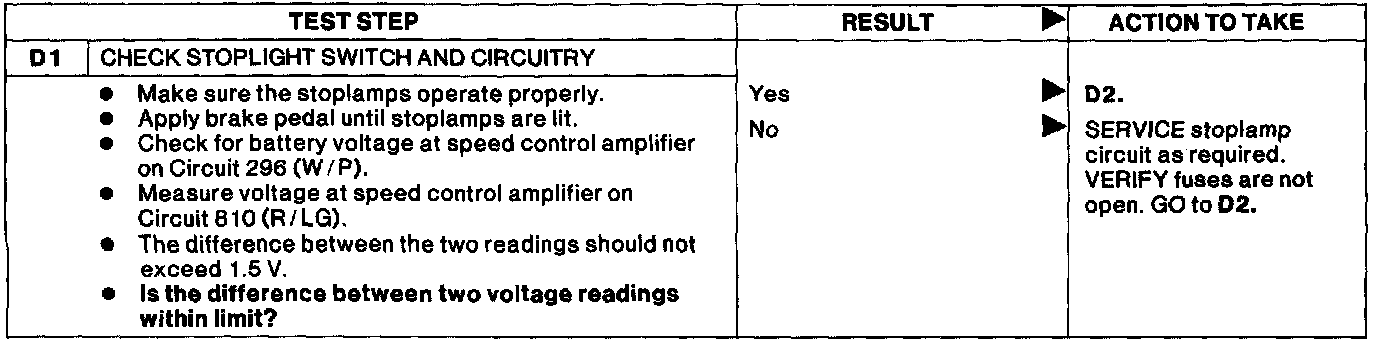

D1:




Part 1 of 2

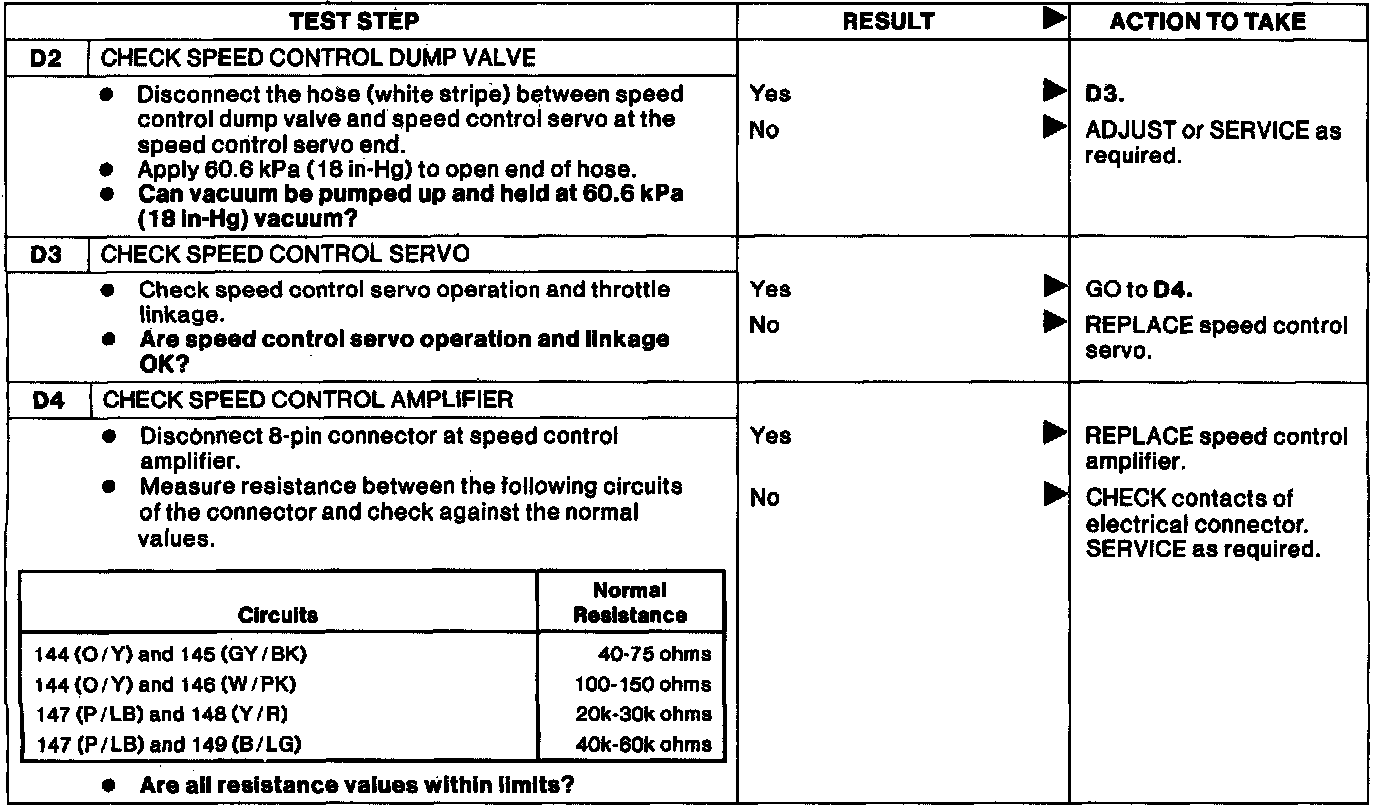

D2 - D4:




Part 2 of 2
