B1 Check Continuity of Circuits 518 and 519

- Turn ignition switch to OFF.

Anti-Lock Control Module:

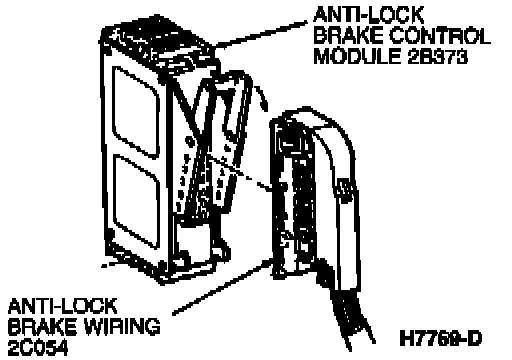

- Disconnect anti-lock brake wiring plug from anti-lock brake control module.

Breakout Box:

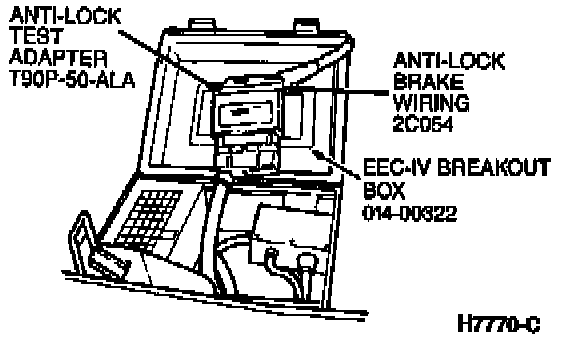

- Connect EEC-IV Breakout Box 014-00322 with Anti-Lock Test Adapter T90P-50-ALA or equivalent to the anti-lock brake wiring plug on the anti-lock brake wiring.

- Check continuity between breakout box pins 28 and 60.

- Is continuity present?

YES -- Go to B2. B2 Check LH Rear Sensor to Ground

NO -- Go to B3. B3 Check Continuity of Circuits 523 and 524
