A7 Check Main Relay Coil

- Remove main power relay.

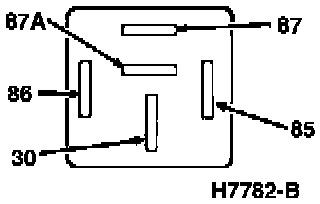

Relay Terminals:

- Measure resistance between main relay pins 85 and 86.

- Is resistance between 45 and 90 ohms?

YES -- Service or replace cable harness circuit 513 or 687.

NO -- Replace main relay.
