Passenger Doors

Removal and Installation

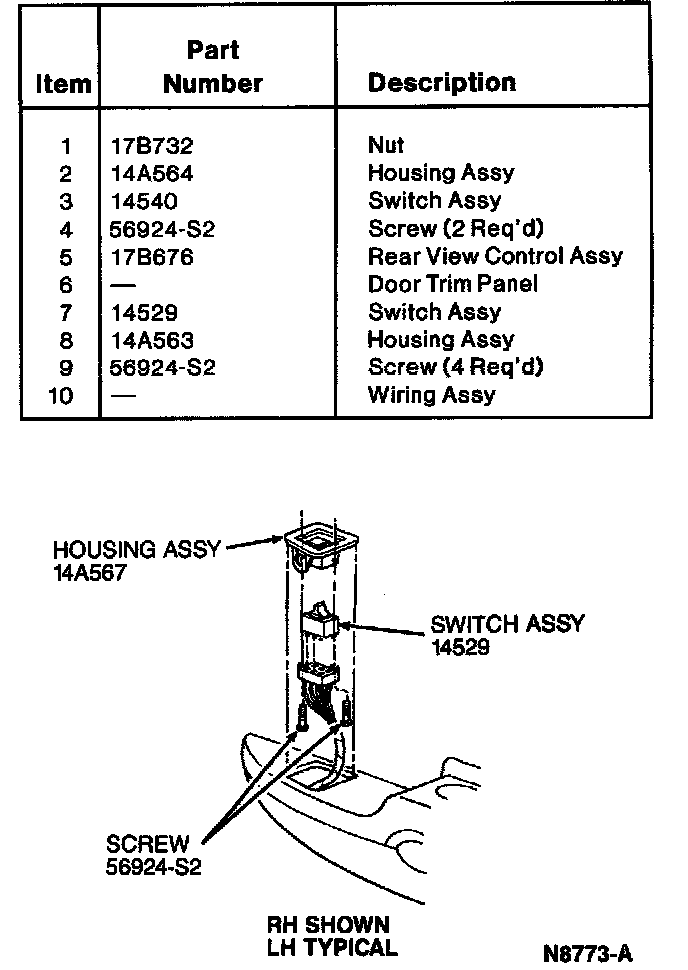

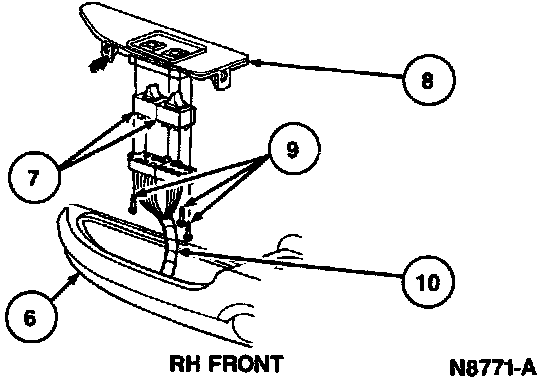

1. Gently pry up the front portion of the switch housing.

2. Remove the two screws retaining the connector to the switch housing.

3. Carefully pry the switch from the connector with a small screwdriver. Take care not to damage the electrical contact pins.

4. To install, reverse Removal procedure.
