Mercury
>>
1994
>>
Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Relays and Modules - Windows and Glass
>>
Power Window Control Module
>>
Locations
Power Window Control Module: Locations

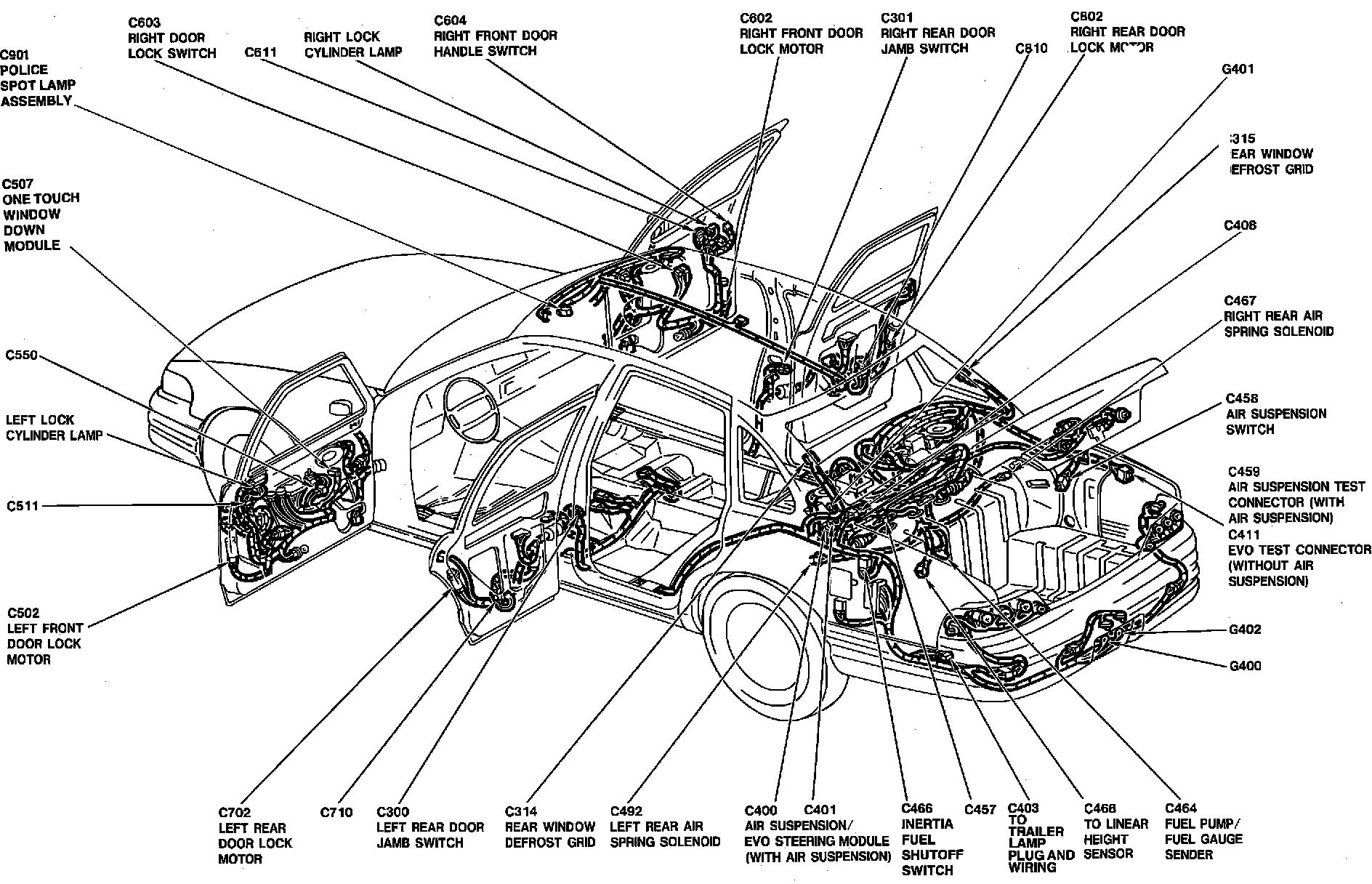

Component Locations:
The One Touch Window Down Module is located in center of LH front door, near master window/door lock control switch.
