Home >> Mercury >> 1994 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> L

L

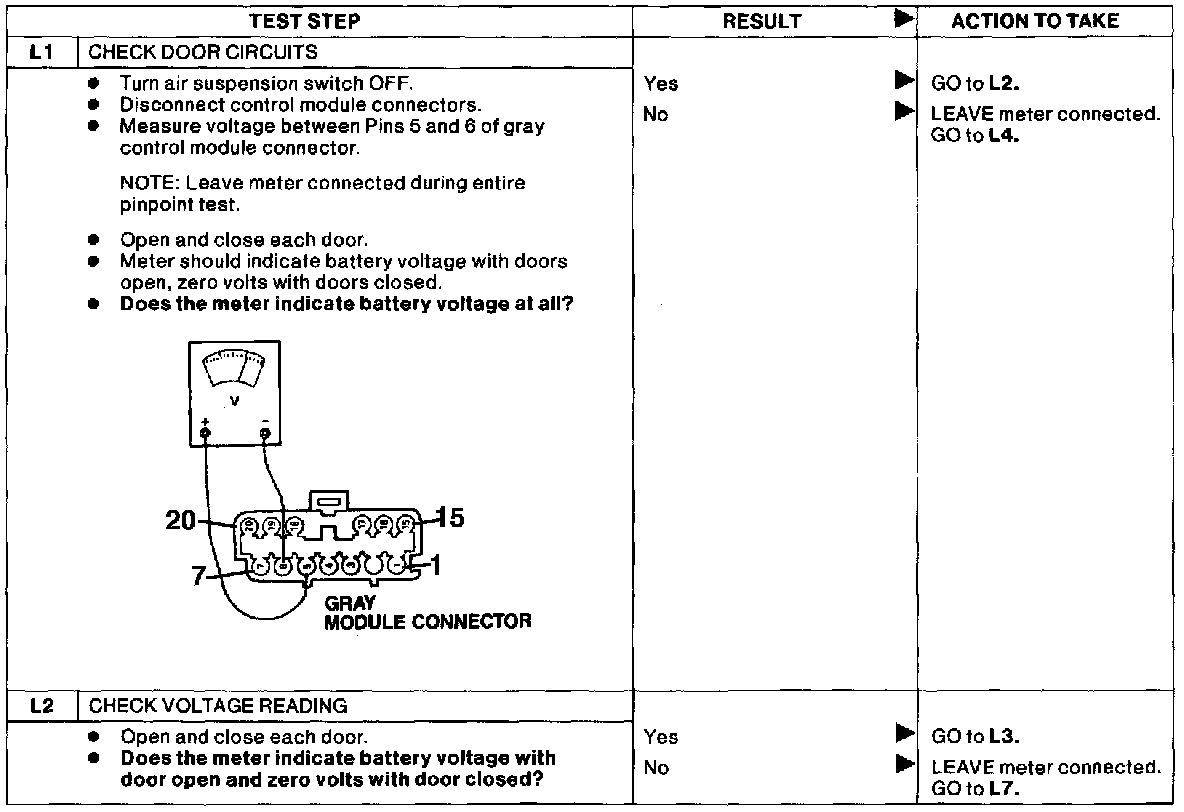

Test L1-L2

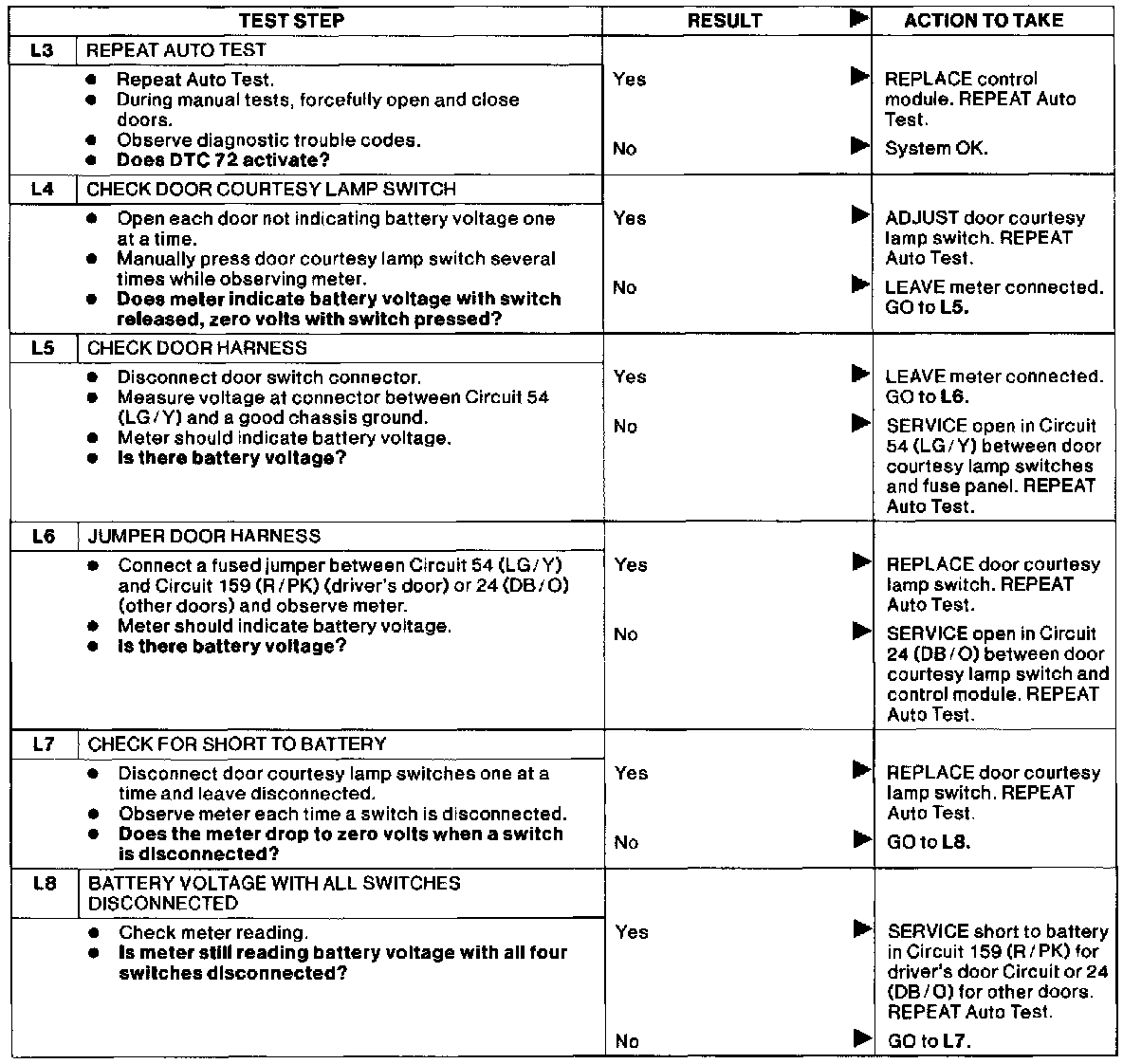

Test L3-L8
