Home >> Mercury >> 1994 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> H

H

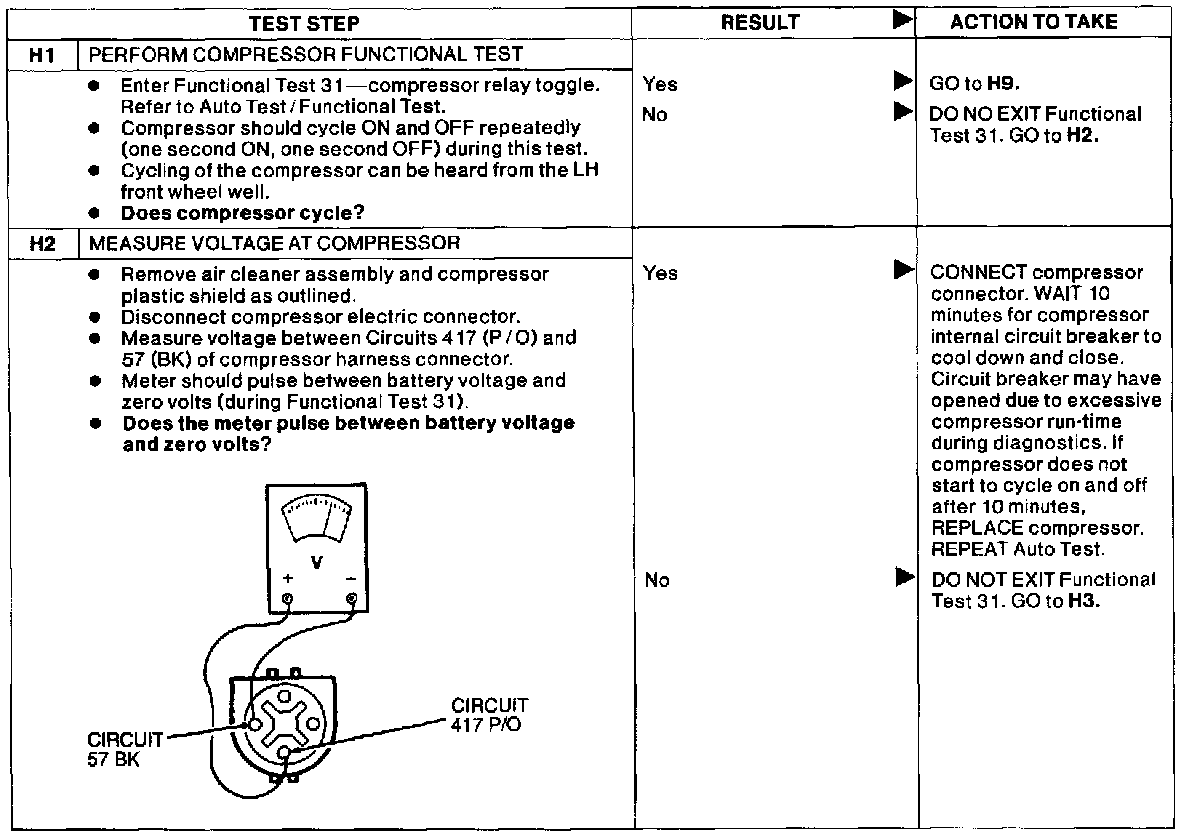

Test H1-H2

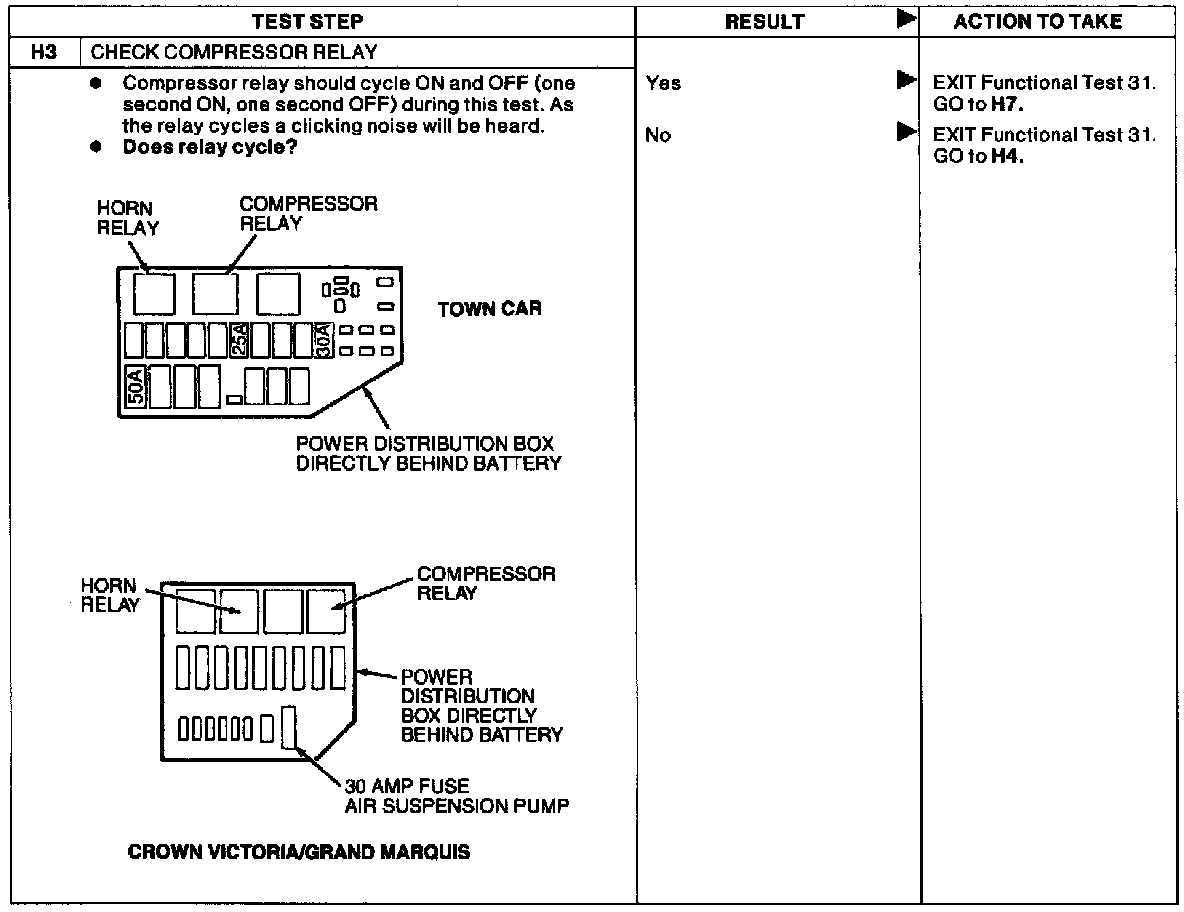

Test H3

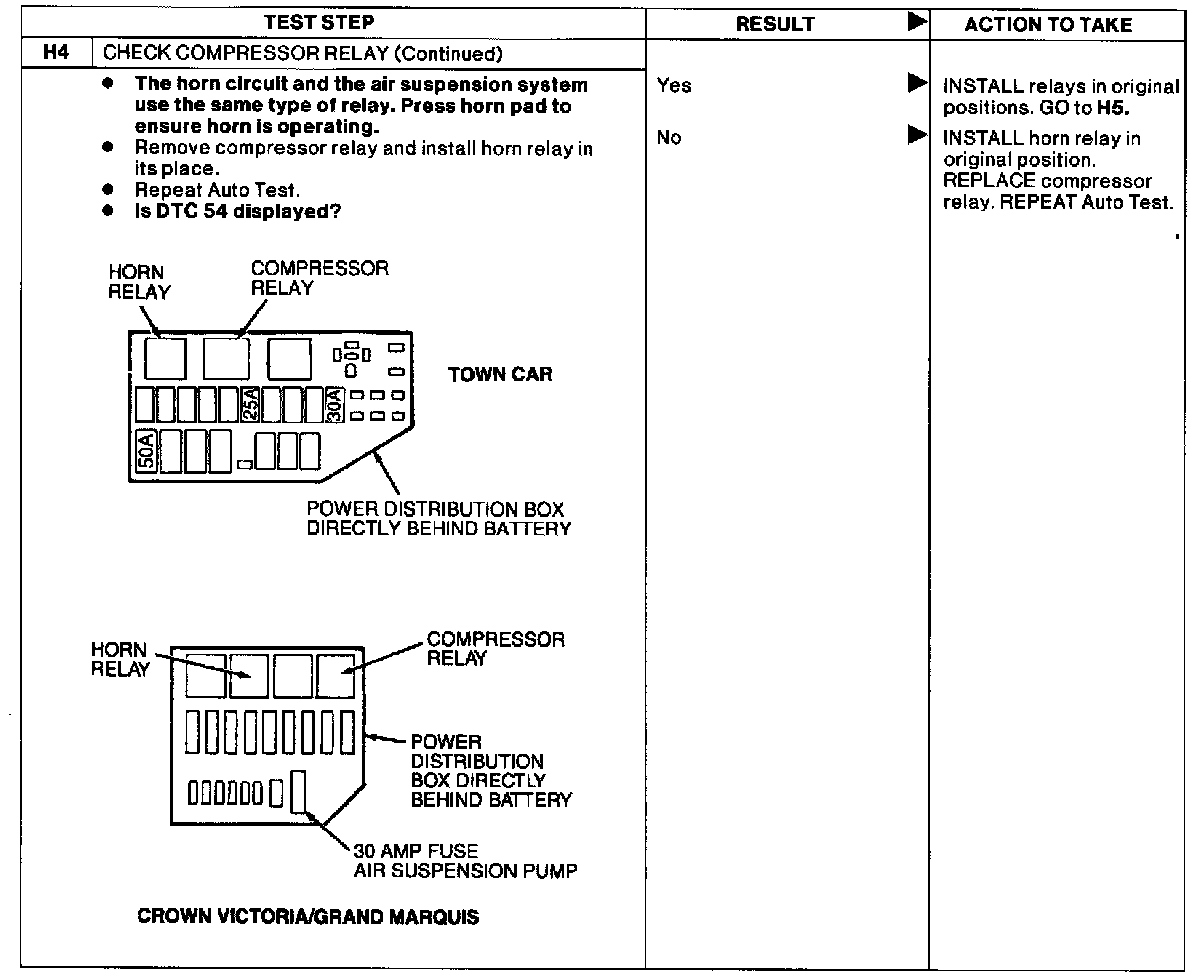

Test H4

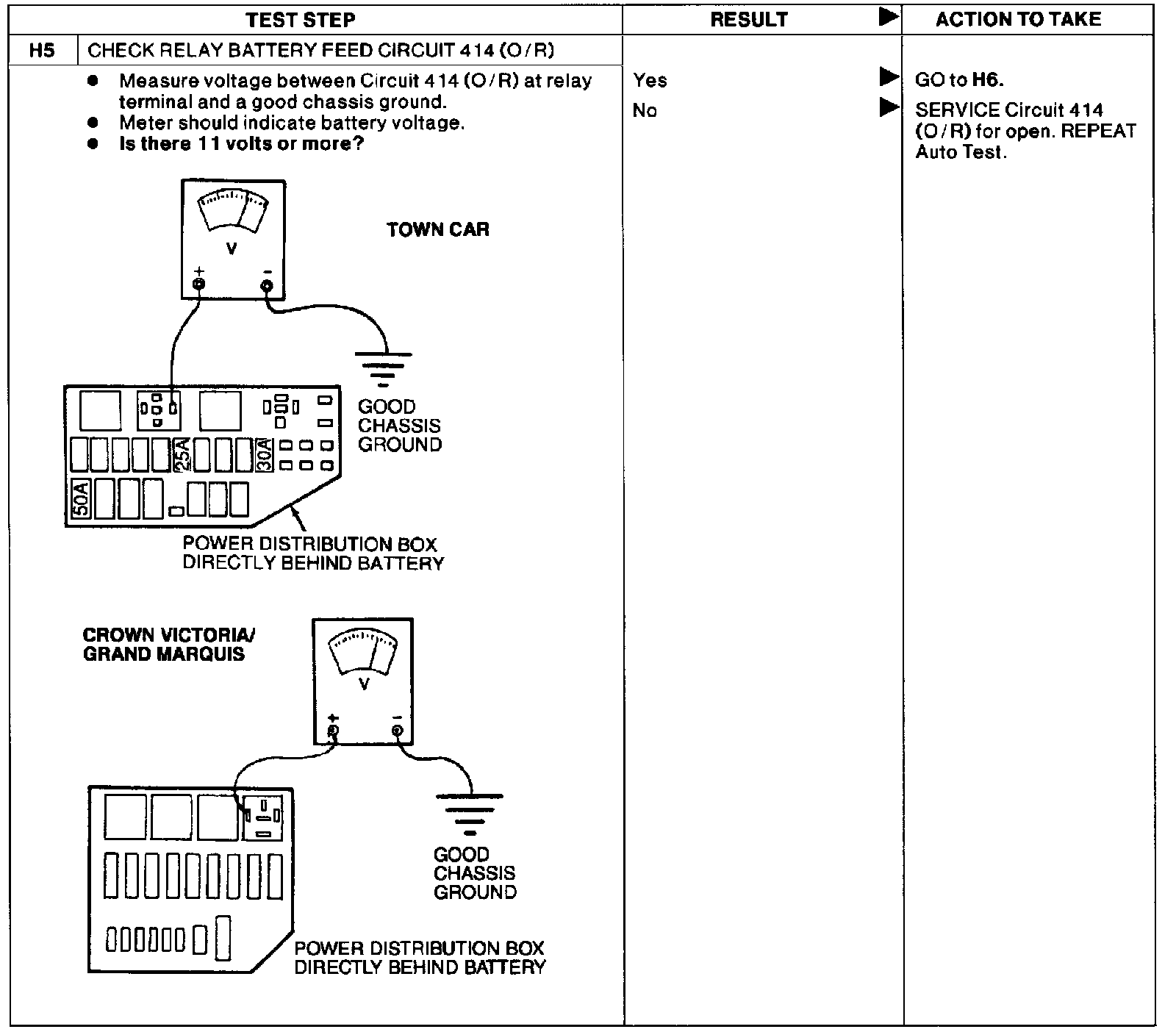

Test H5

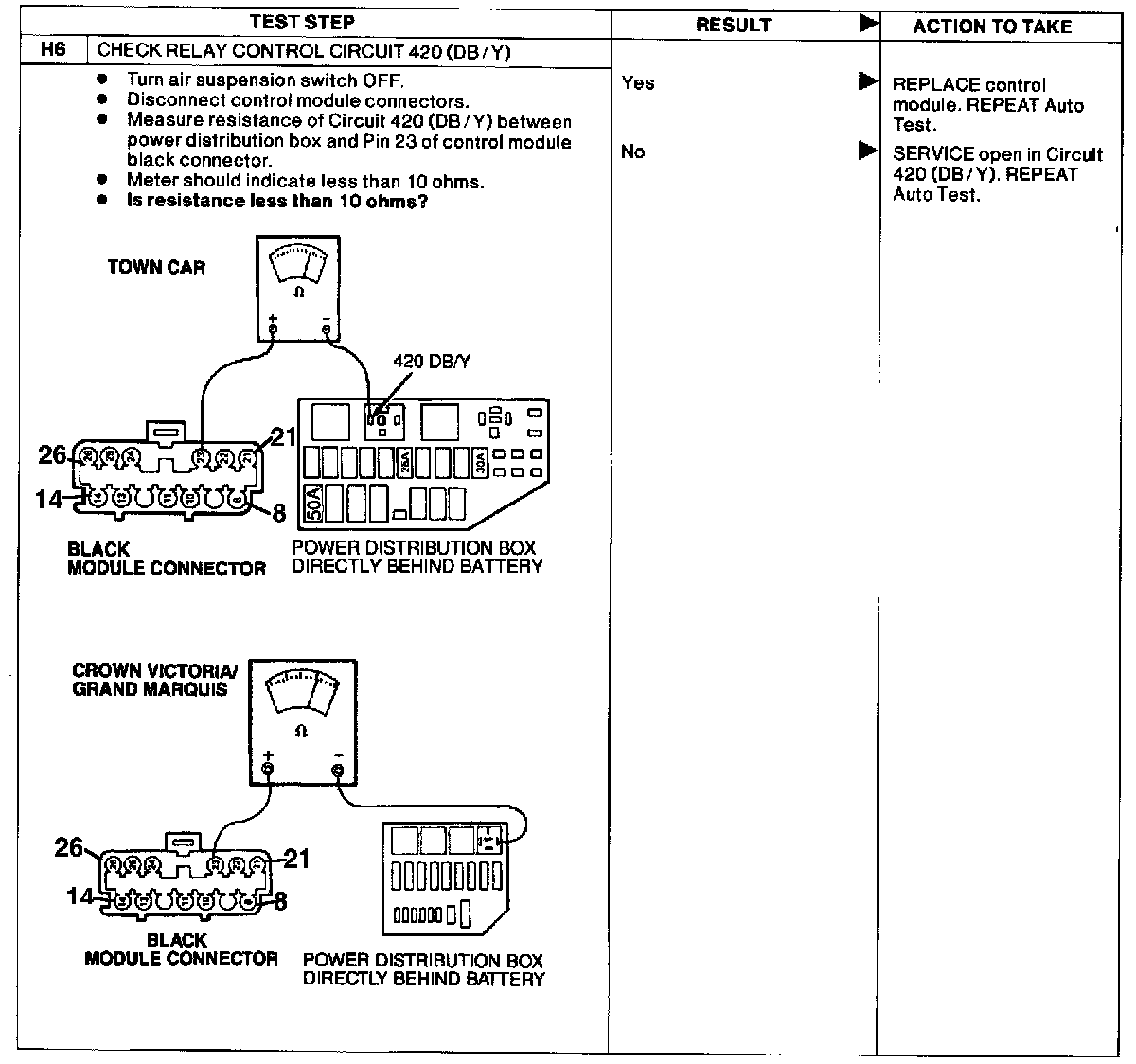

Test H6

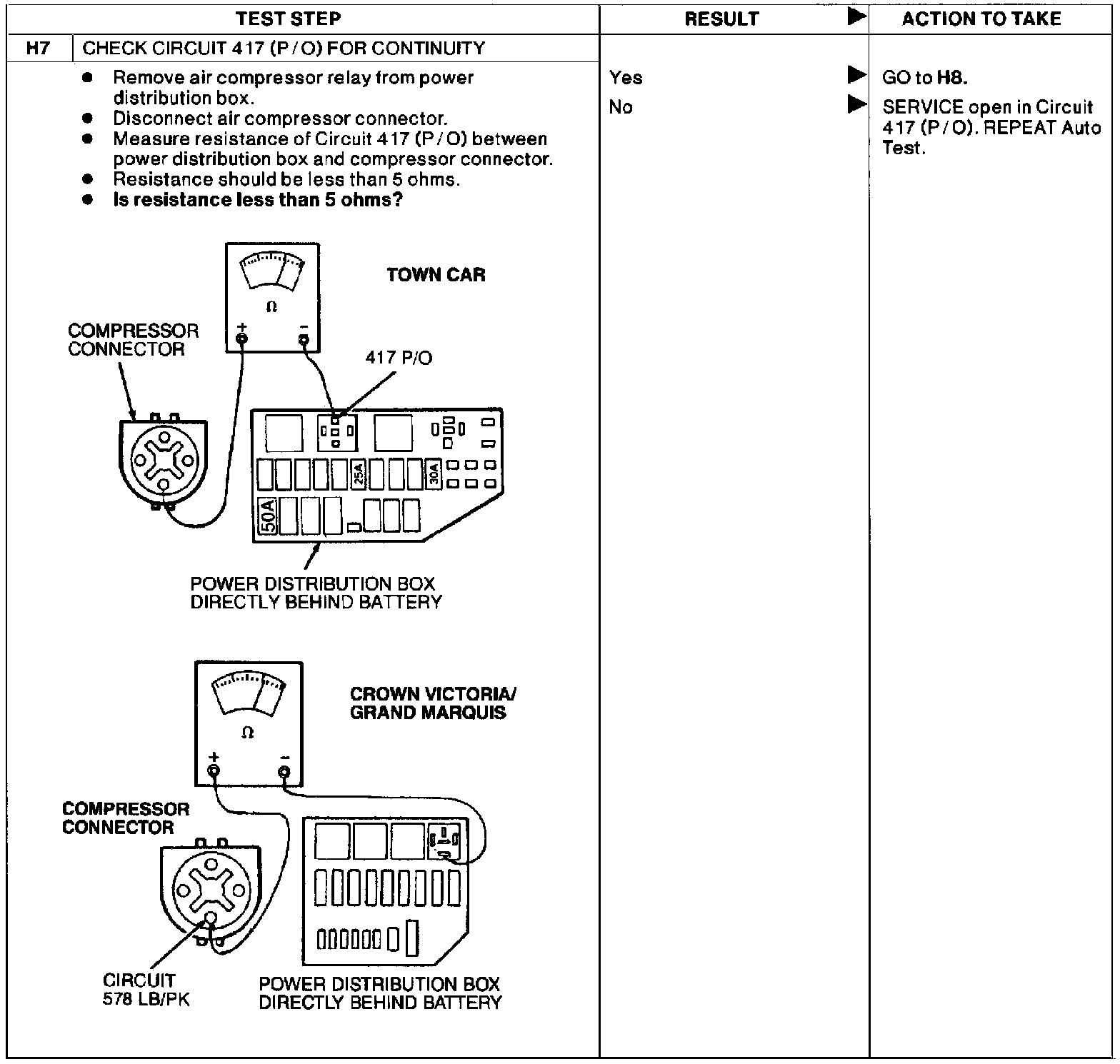

Test H7

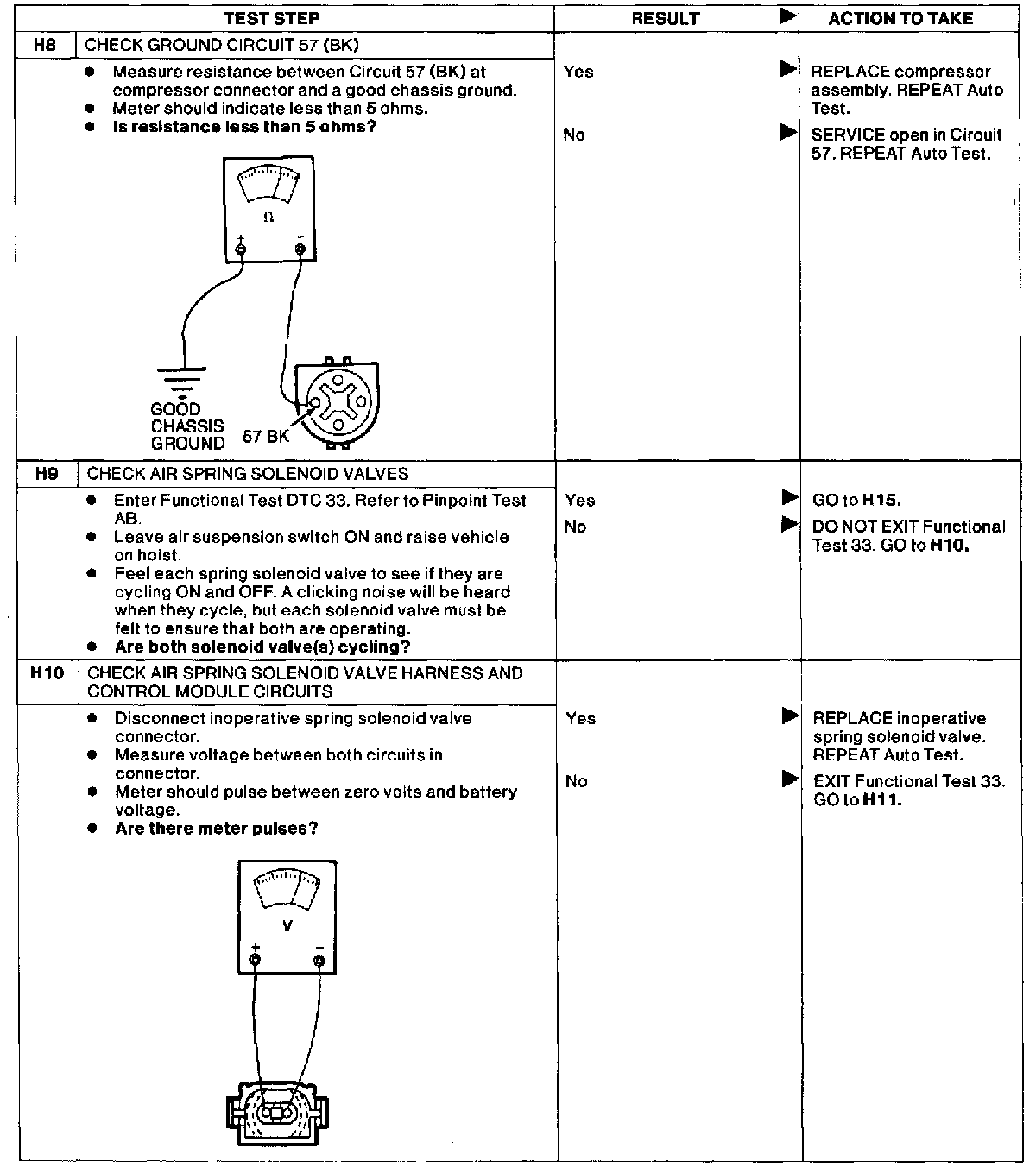

Test H8-H10

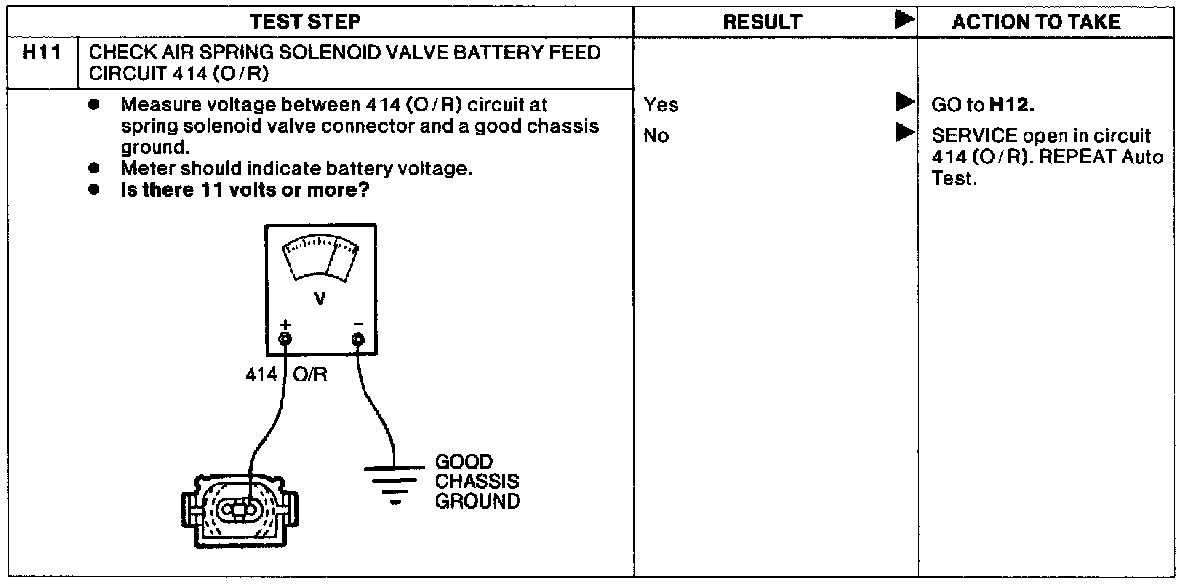

Test H11

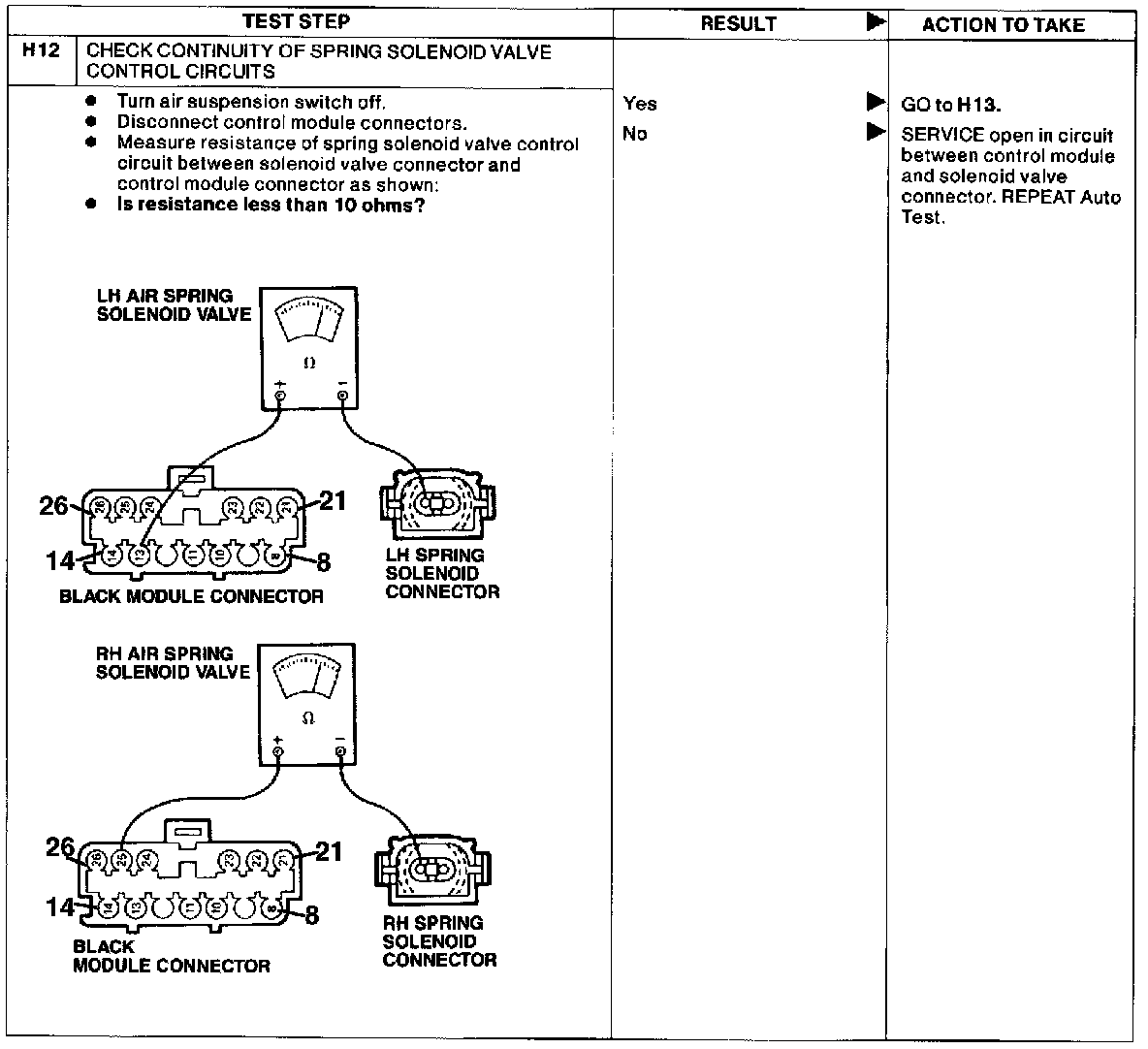

Test H12

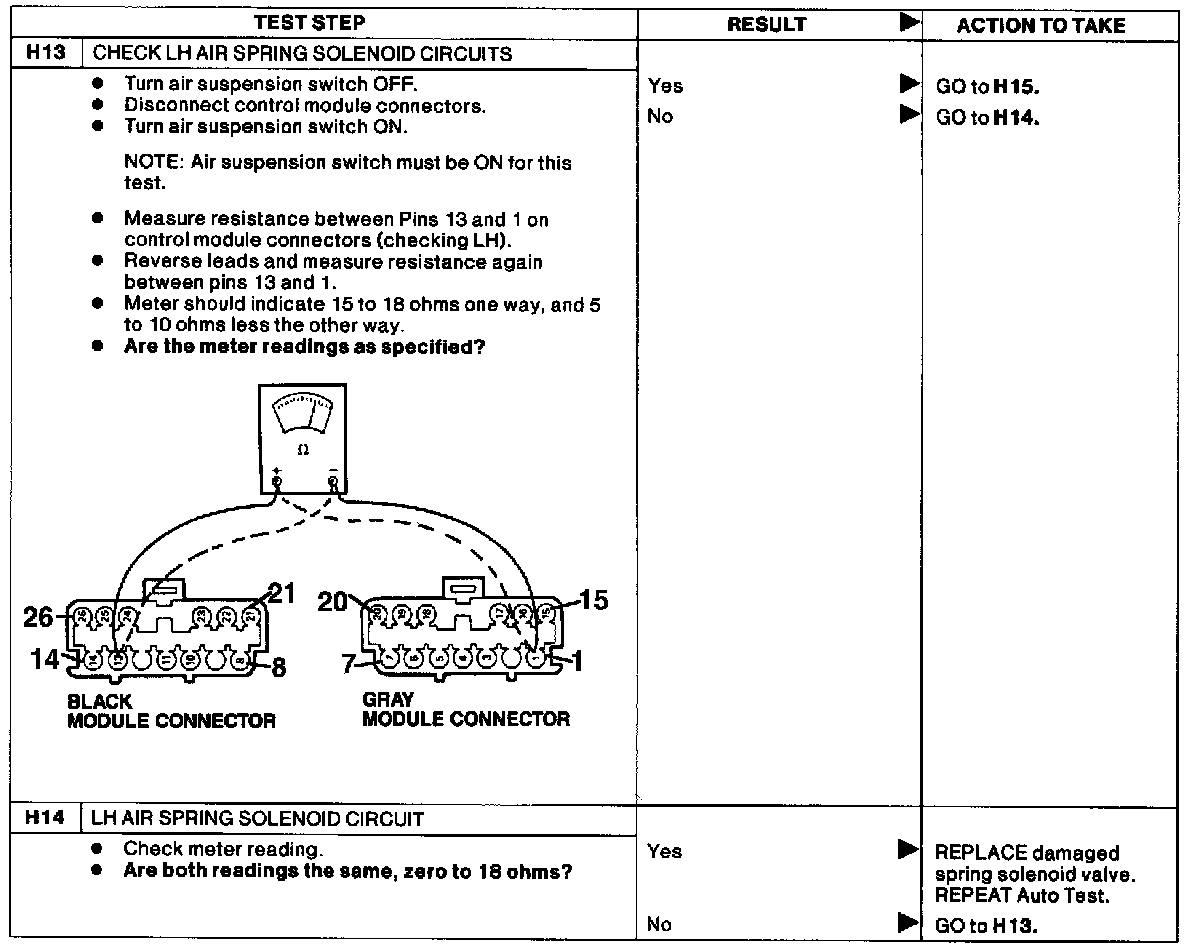

Test H13-H14

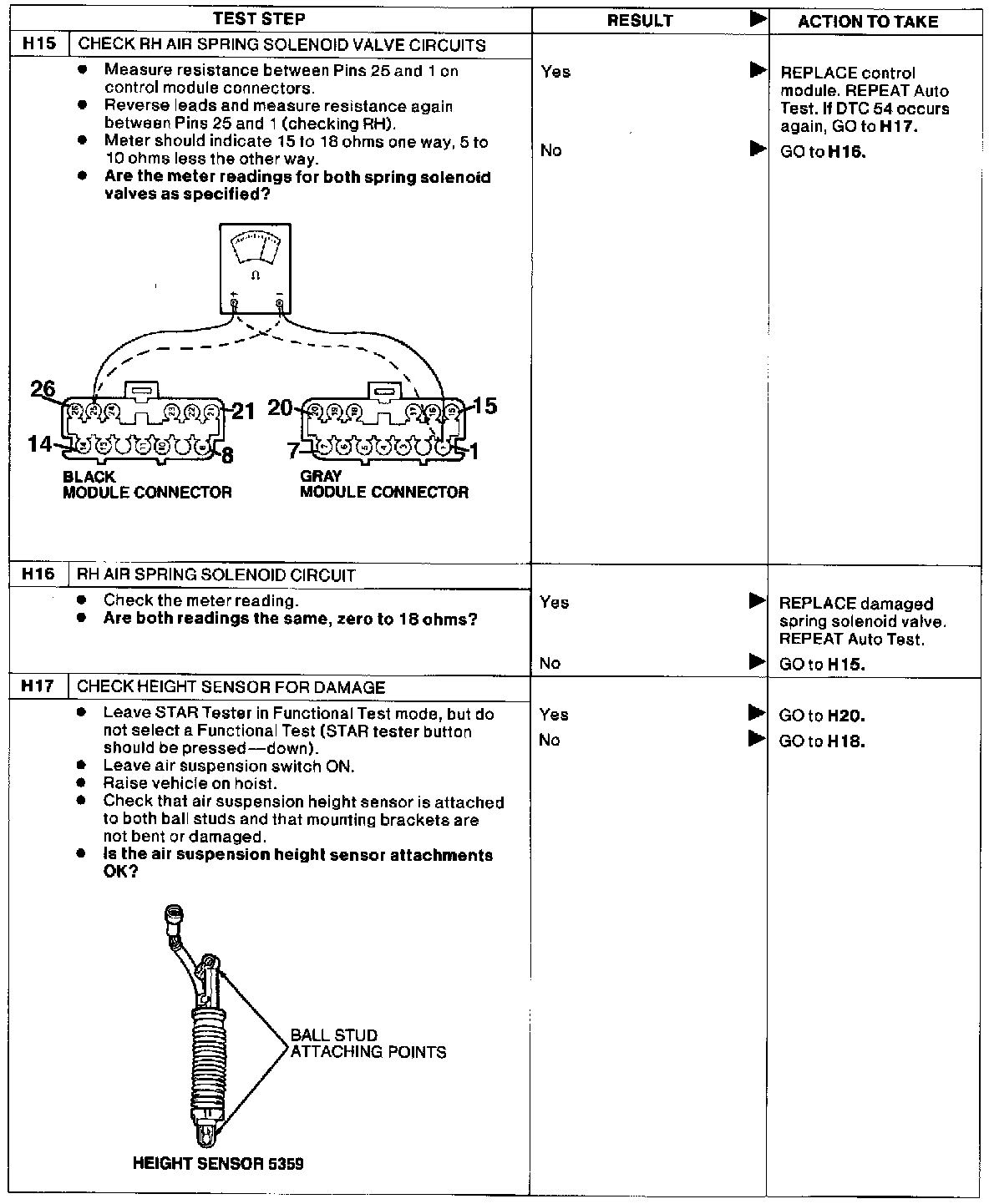

Test H15-H17





Test H18-H21

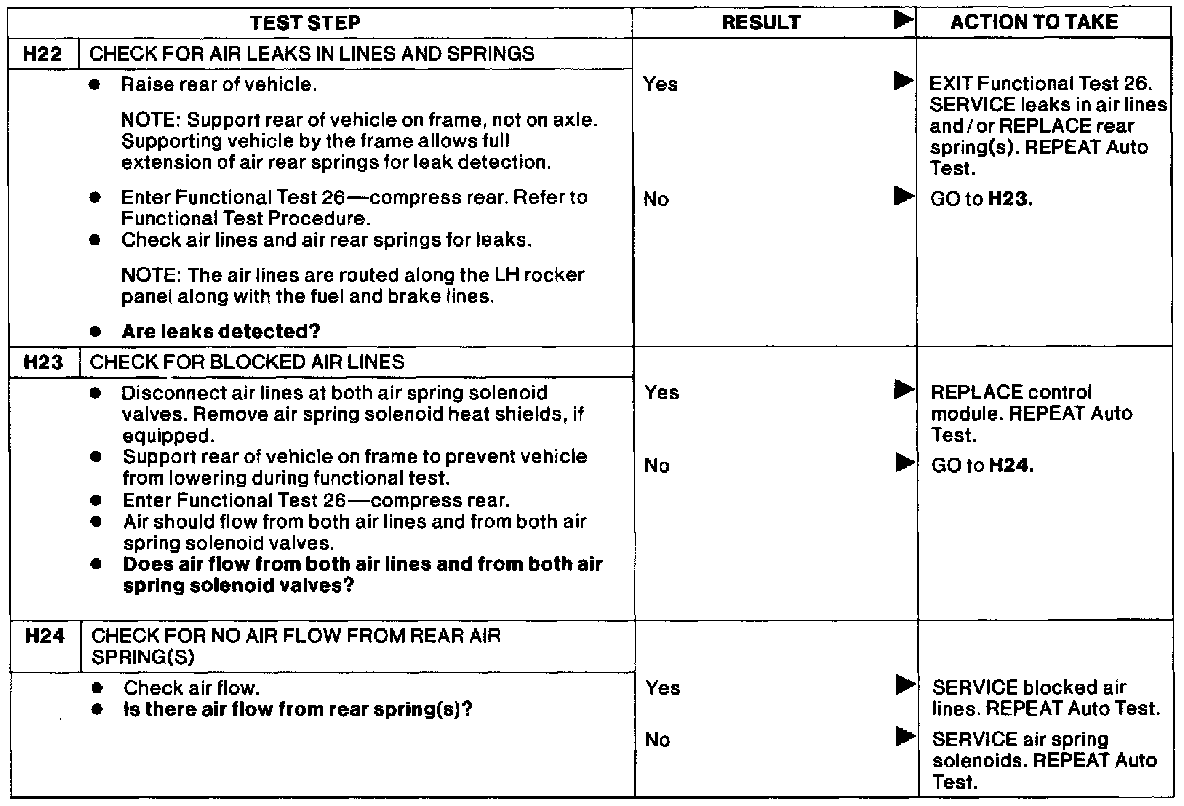

Test H22-H24
