Home >> Mercury >> 1994 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> E

E

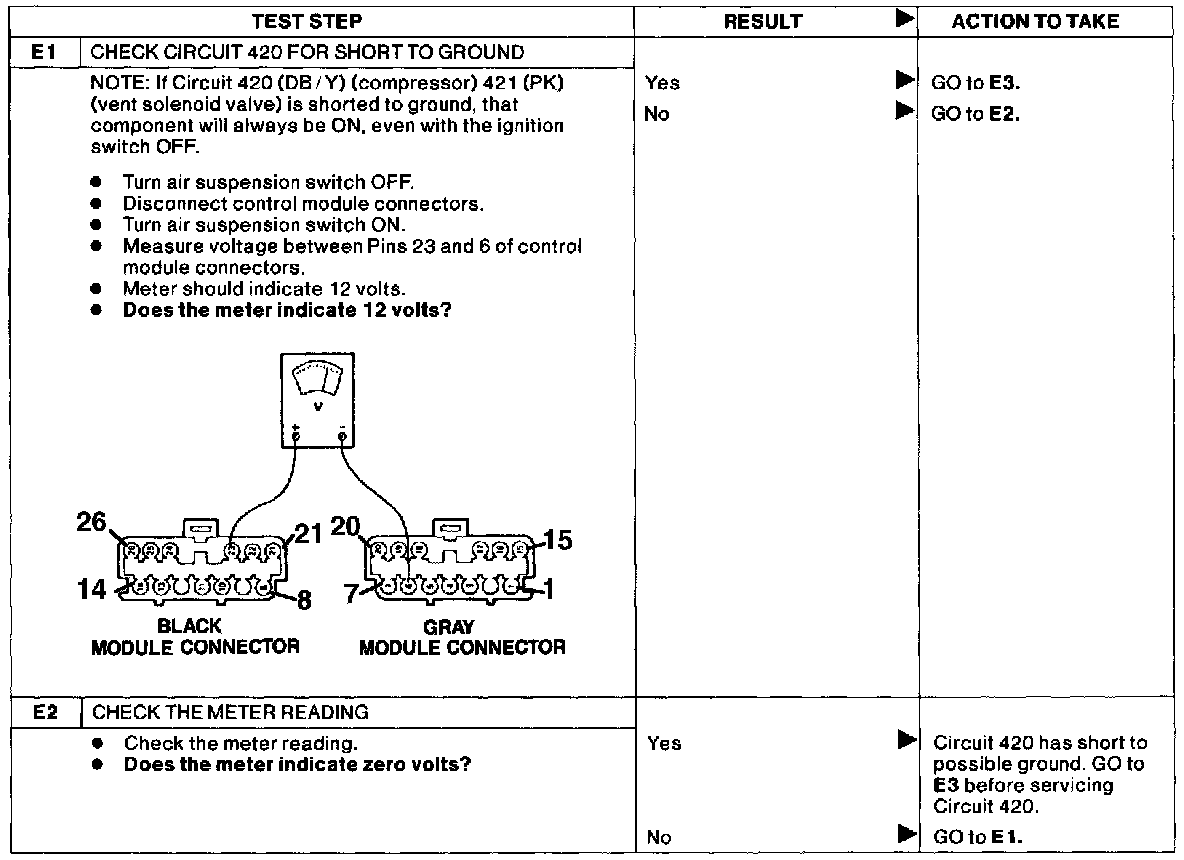

Test E1-E2

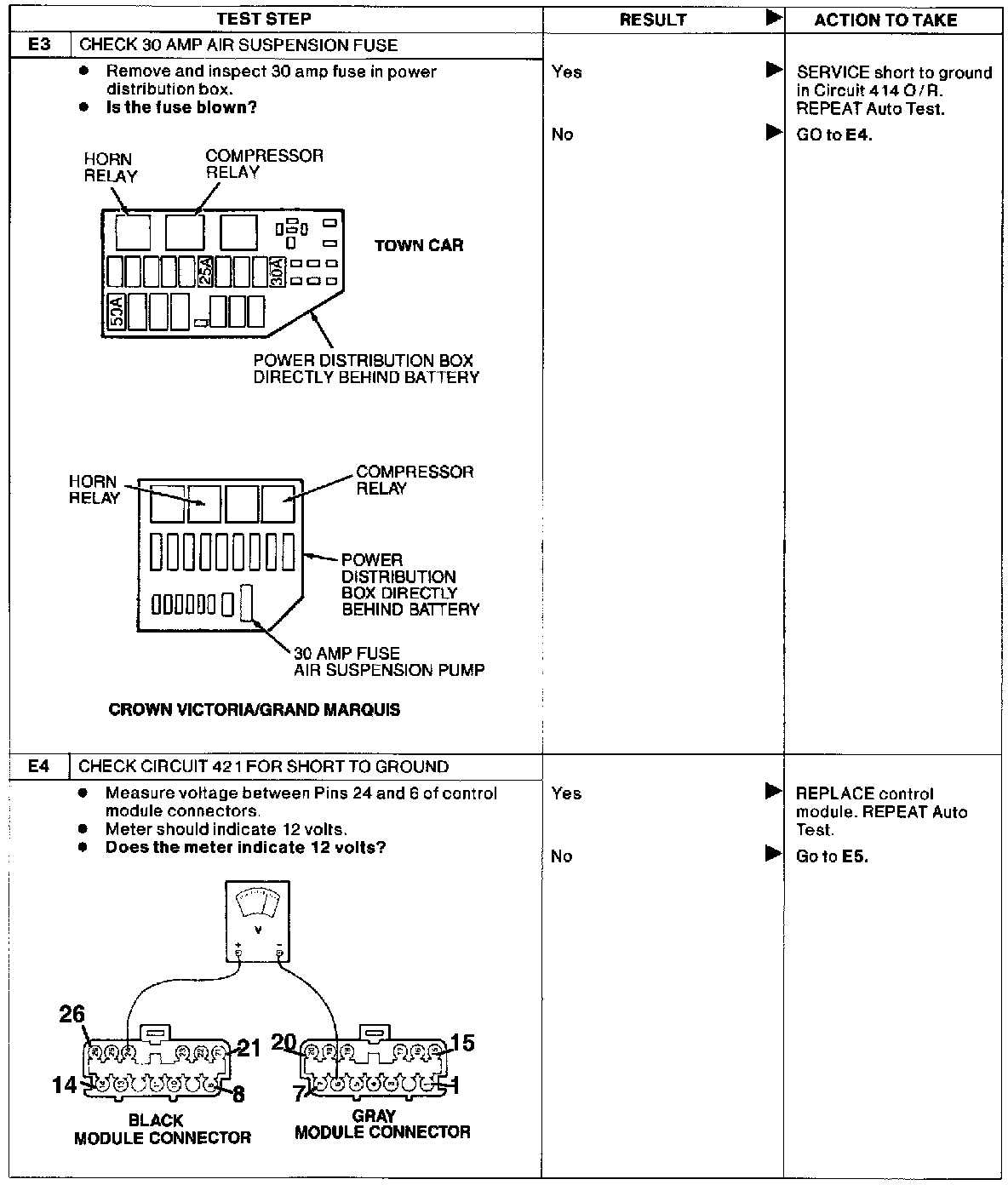

Test E3-E4

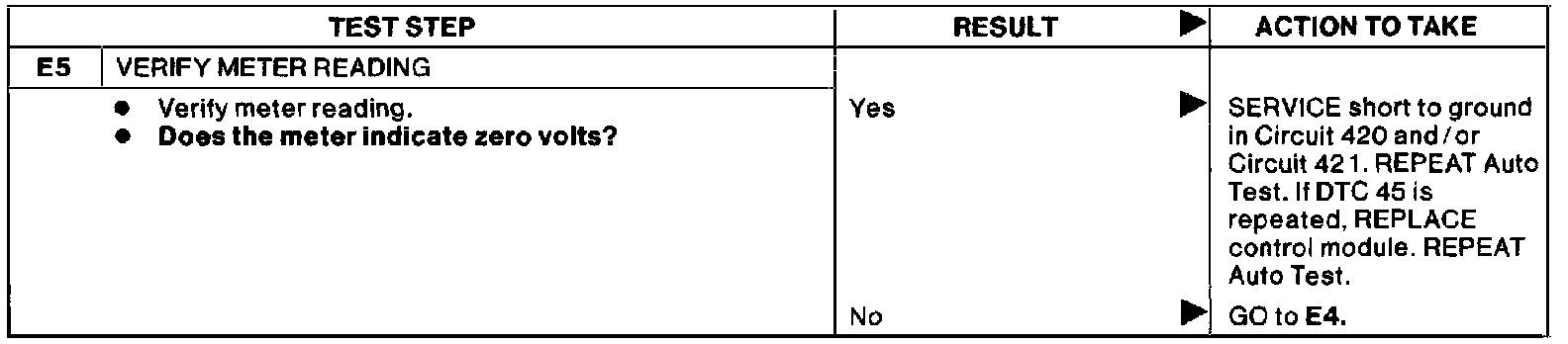

Test E5
