Home >> Mercury >> 1994 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> B

B

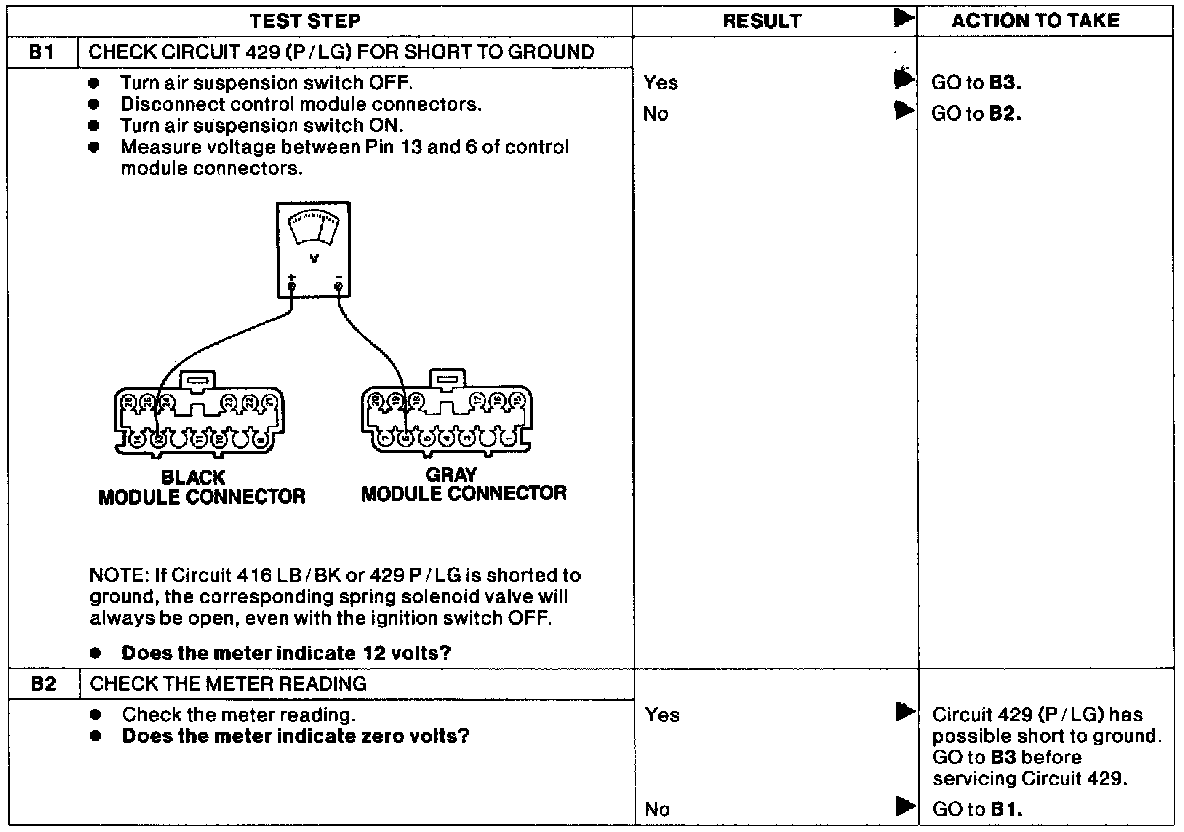

Test B1-B2

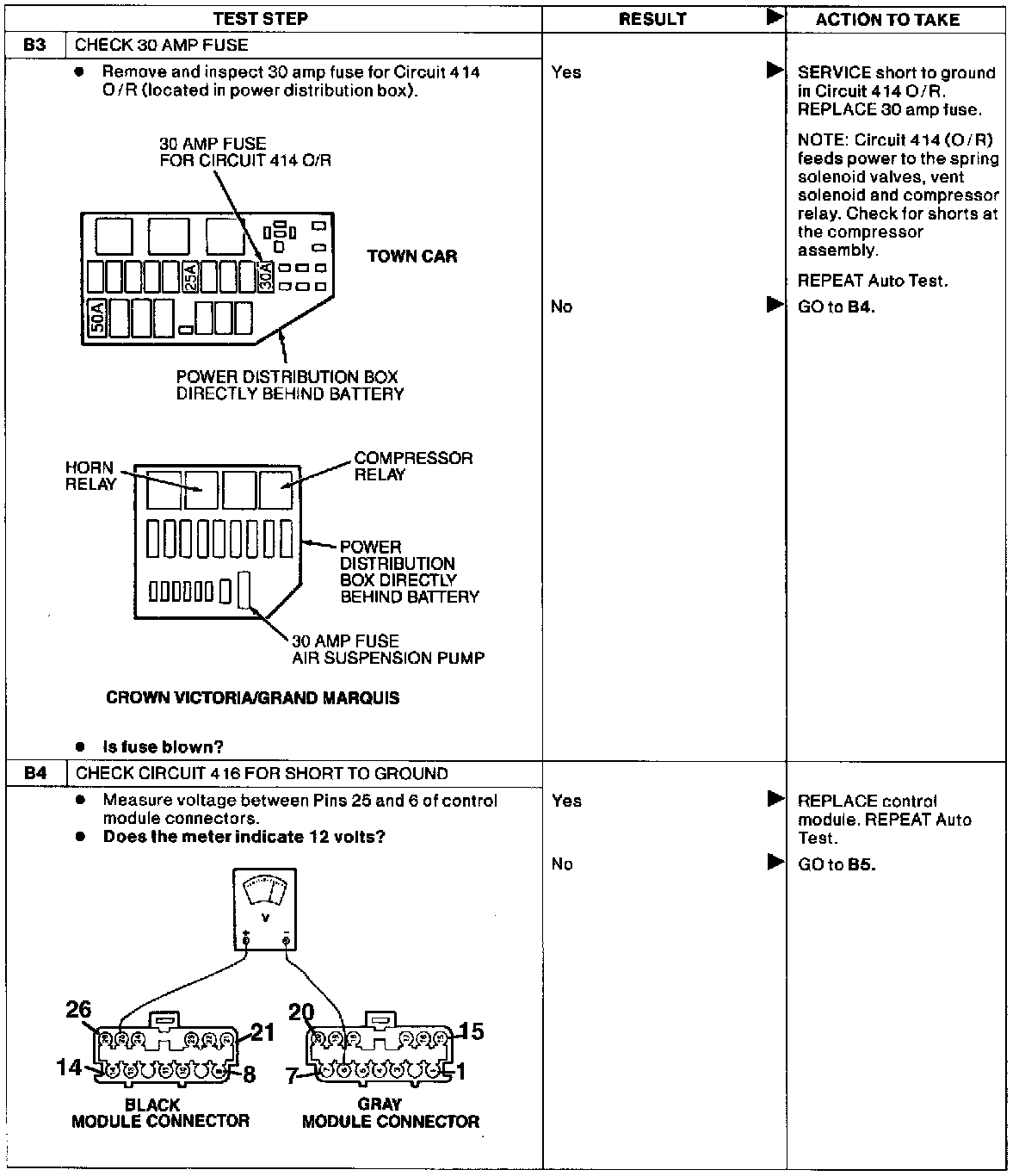

Test B3-B4

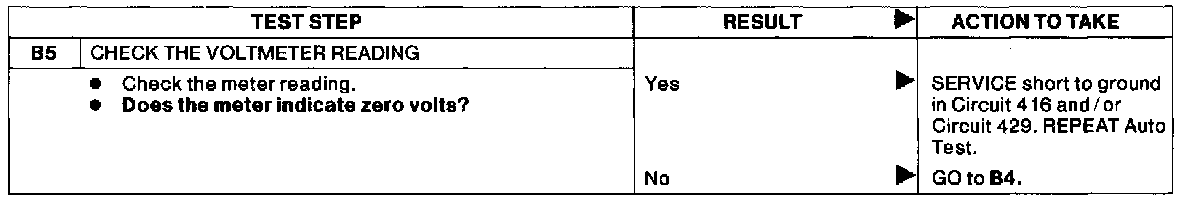

Test B5
