Fuse IGN. COIL

Fuse IGN. COIL - protects the following circuits:
- Left and Right Ignition Coils

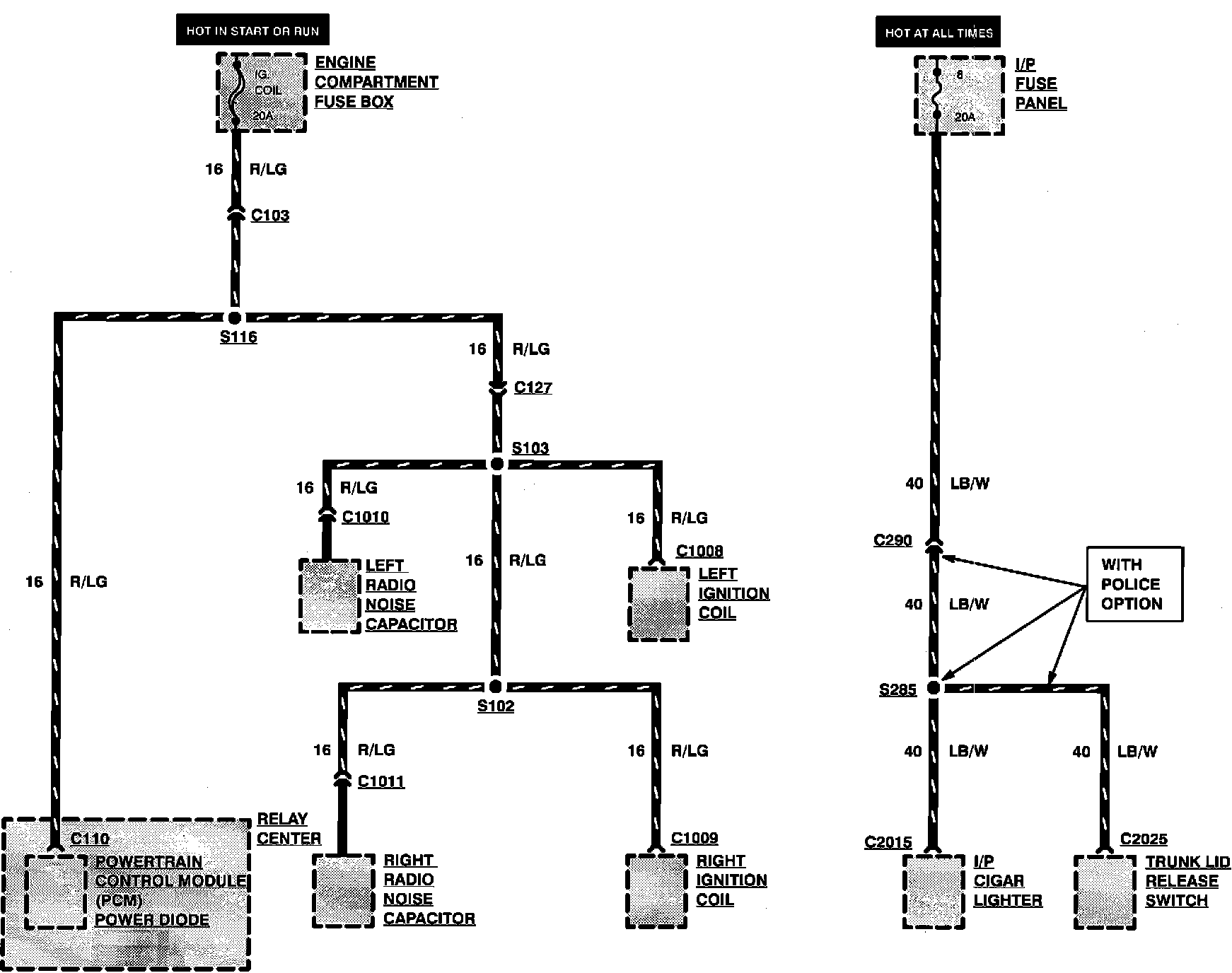

Power Distribution:




Power Distribution:
