Power Window Switch: Testing and Inspection

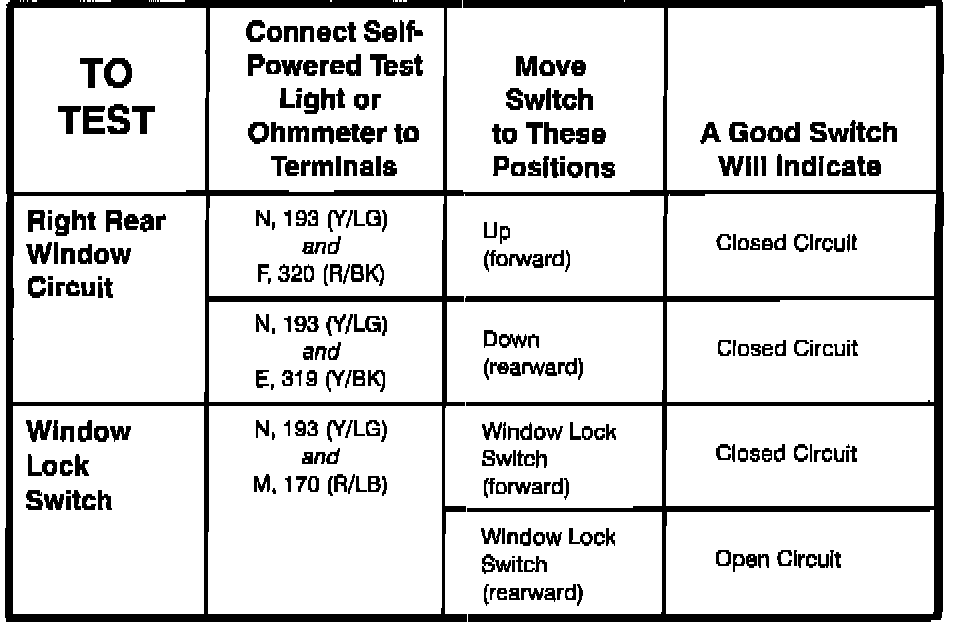

Component Testing Procedure-Window Circuits:




Component Testing Procedure-Window Circuits:




Terminal ID On Switch:




Schematic:
