Headlamp Switch
>>
Testing and Inspection
>>
With Auto-lamps
With Auto-lamps

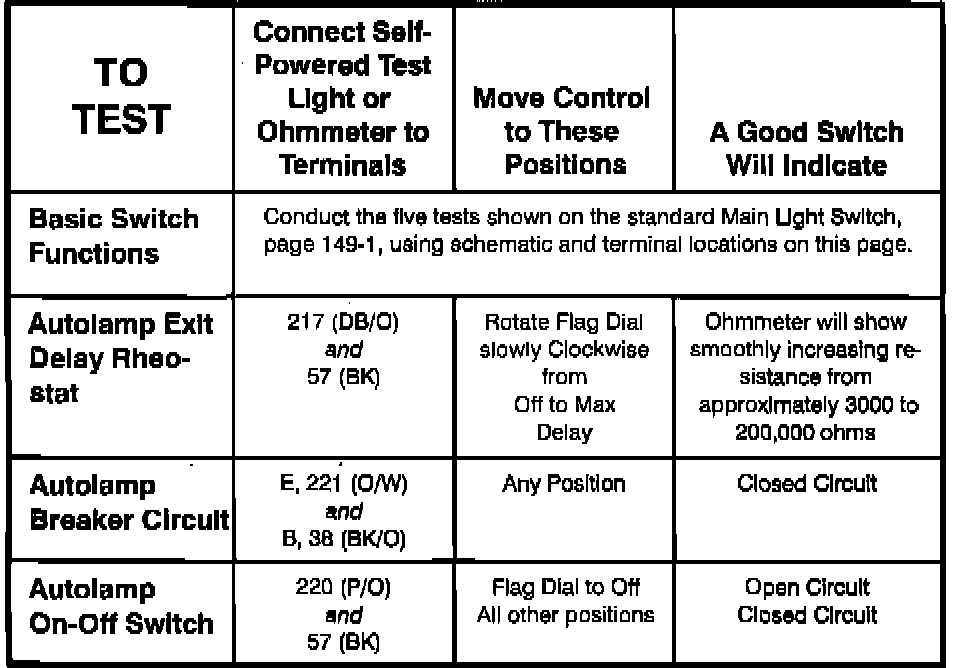

Component Testing Procedure:

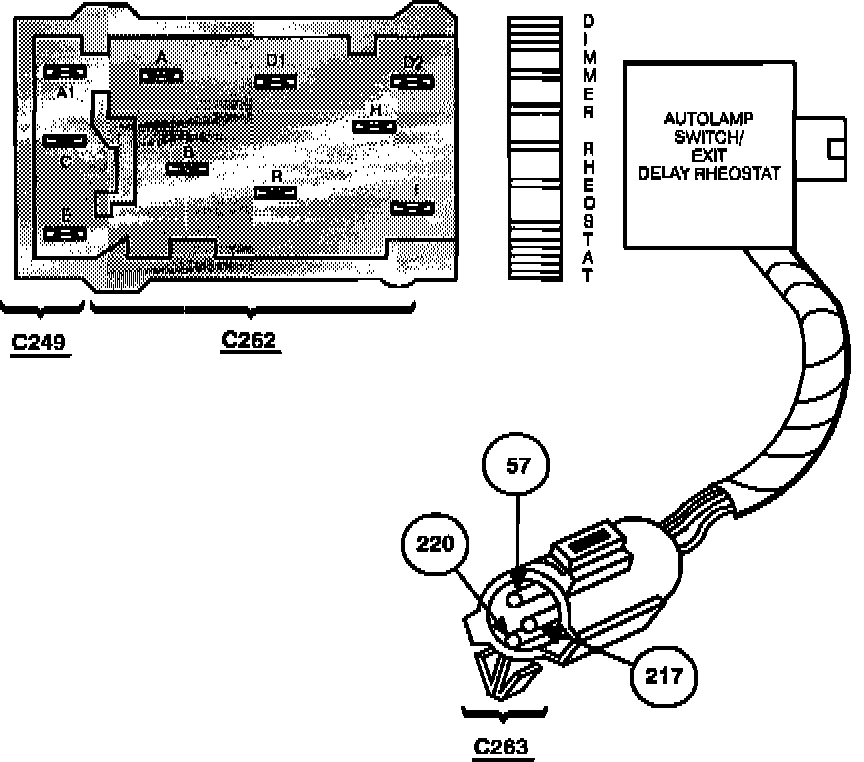

Terminal ID:

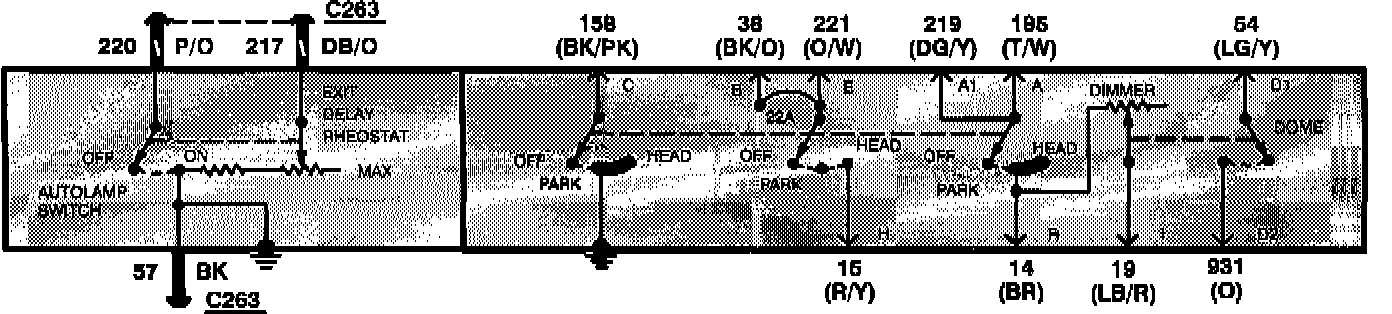

Schematic:
