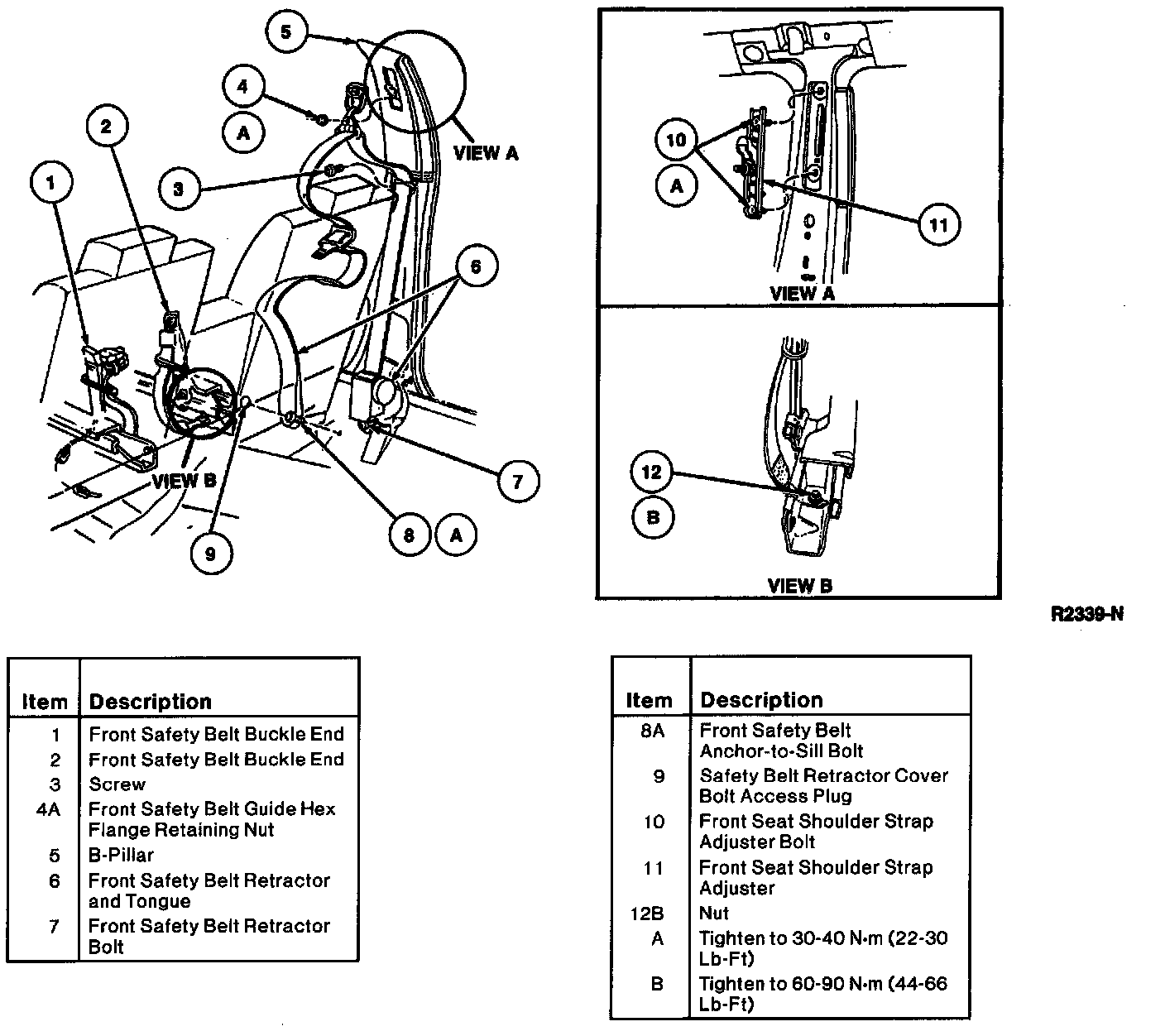

Center Front Seat Belt Assemblies

Removal and Installation
1. Remove front track end cover.
2. Remove front center safety belt anchor nuts and washers (on LH side disconnect safety belt warning chime wire).
3. Slide the center front safety belt assemblies through the slots in front seat and remove from vehicle.
4. To install, Removal procedure. Tighten front center safety belt anchor nuts to 60-90 Nm (44-60 lb-ft).
