Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KM - WOT A/C Cut-Off (WAC) A/C Demand
>>
KM - Test Schematic
KM - Test Schematic

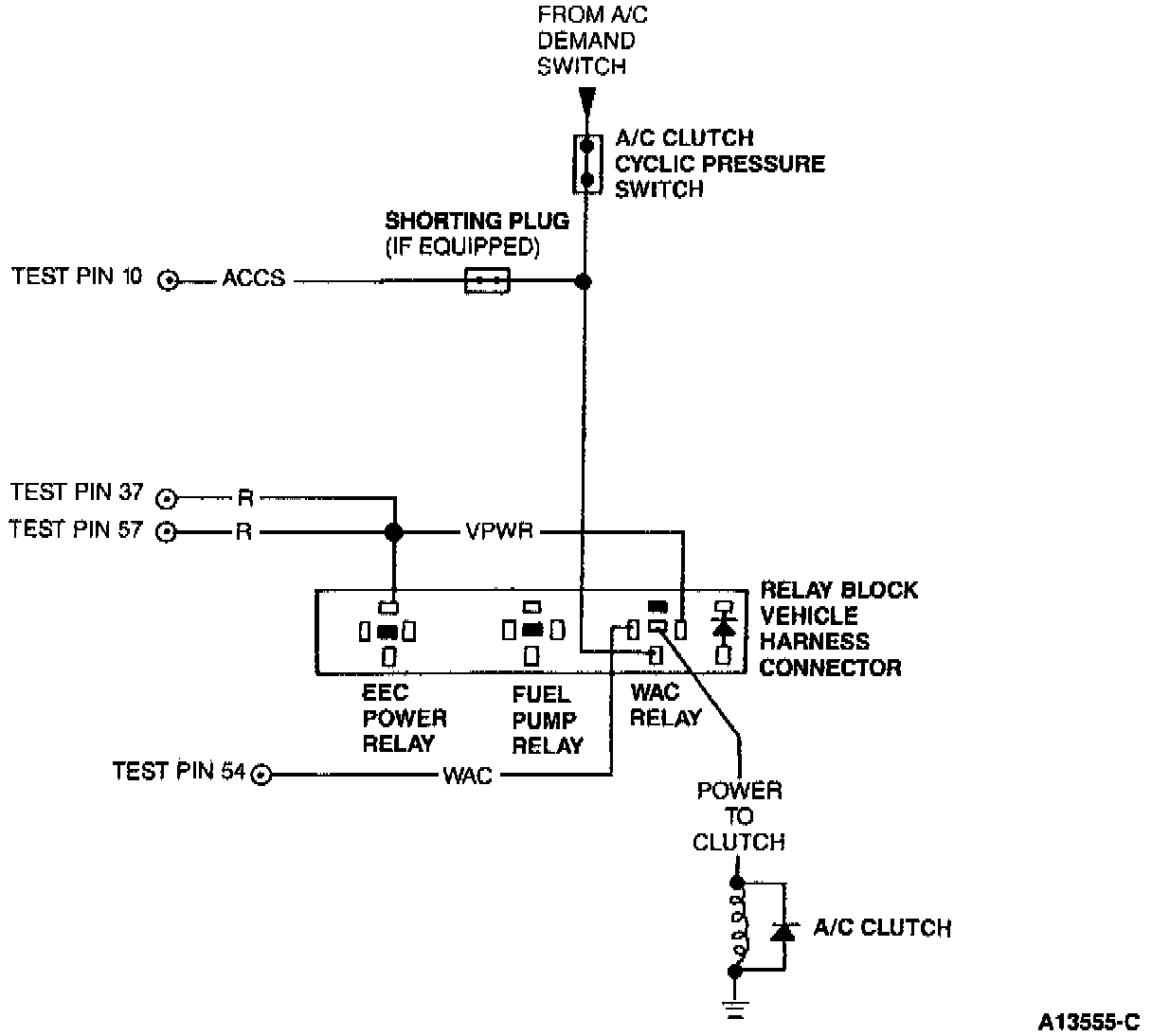

Testing Schematic:
CIRCUIT / PIN / WIRE COLOR
ACCS / 10 / dark green/orange
WAC / 54 / orange/light blue
