Main Relay (Computer/Fuel System): Locations

Component Locations:

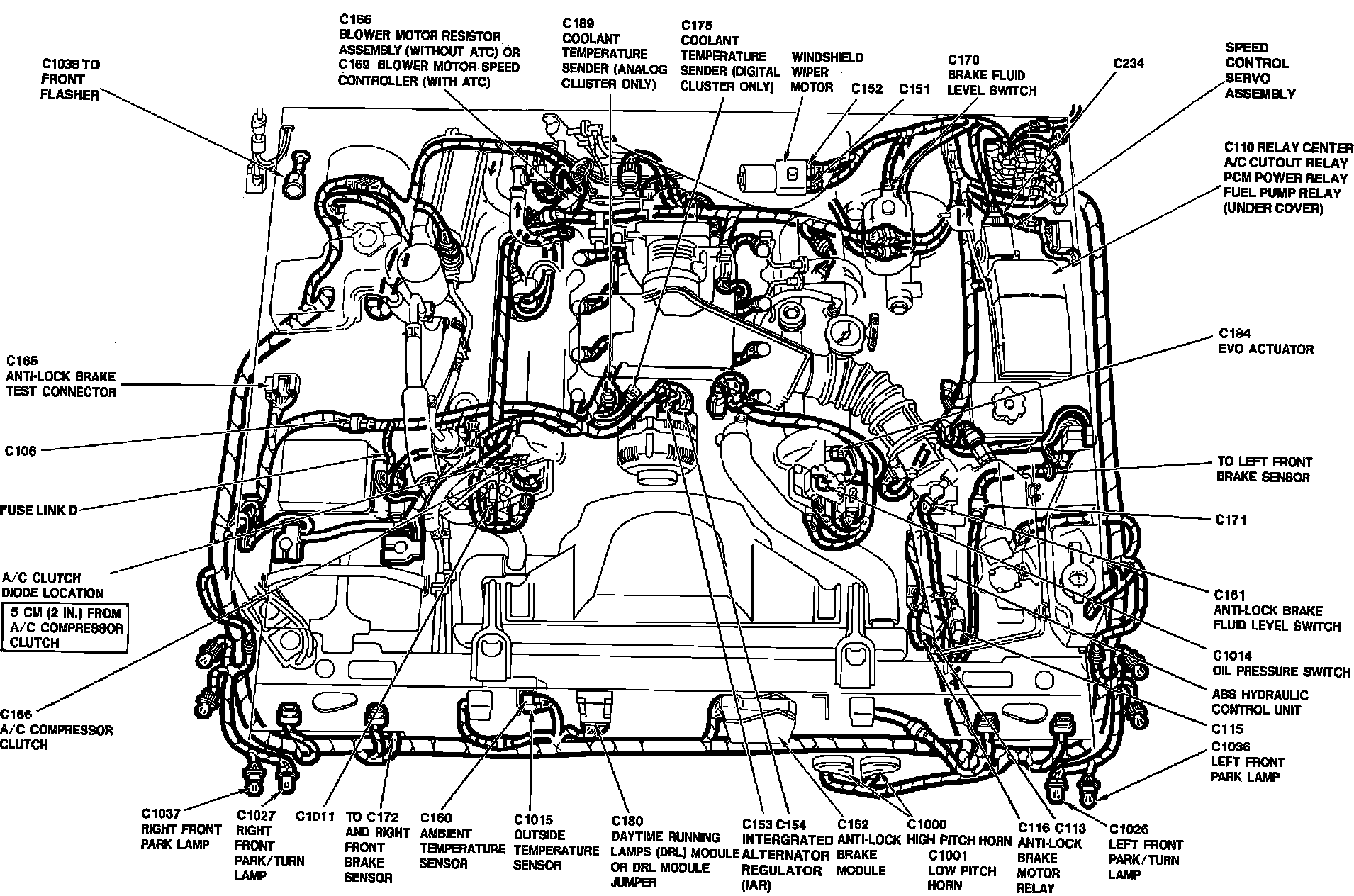

UNDERHOOD VIEW
Left side of engine compartment, in relay center.
