Engine Control Module: Locations

Component Locations:

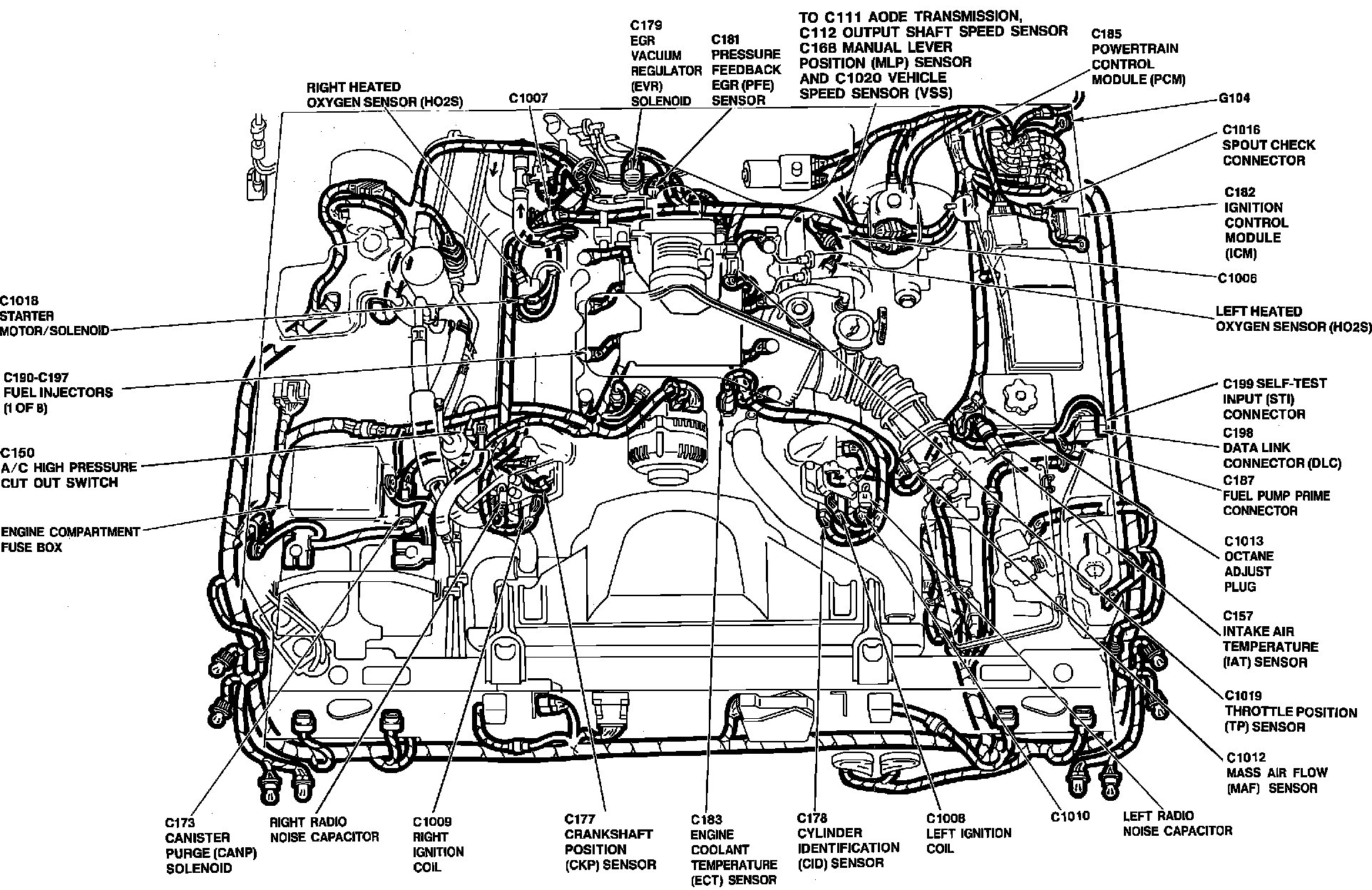

UNDERHOOD VIEW
Behind left side of instrument panel, on left side of safety wall.
