Fuse 17

Fuse 17 - protects the following circuits:
- Backup Lamps
- Variable Assist Power Steering (VAPS)
- Rear Defrost
- Air Suspension
- Daytime Running Lamps
- Trailer Battery Charging
- Electronic Day/Night Mirror
- Shift Lock

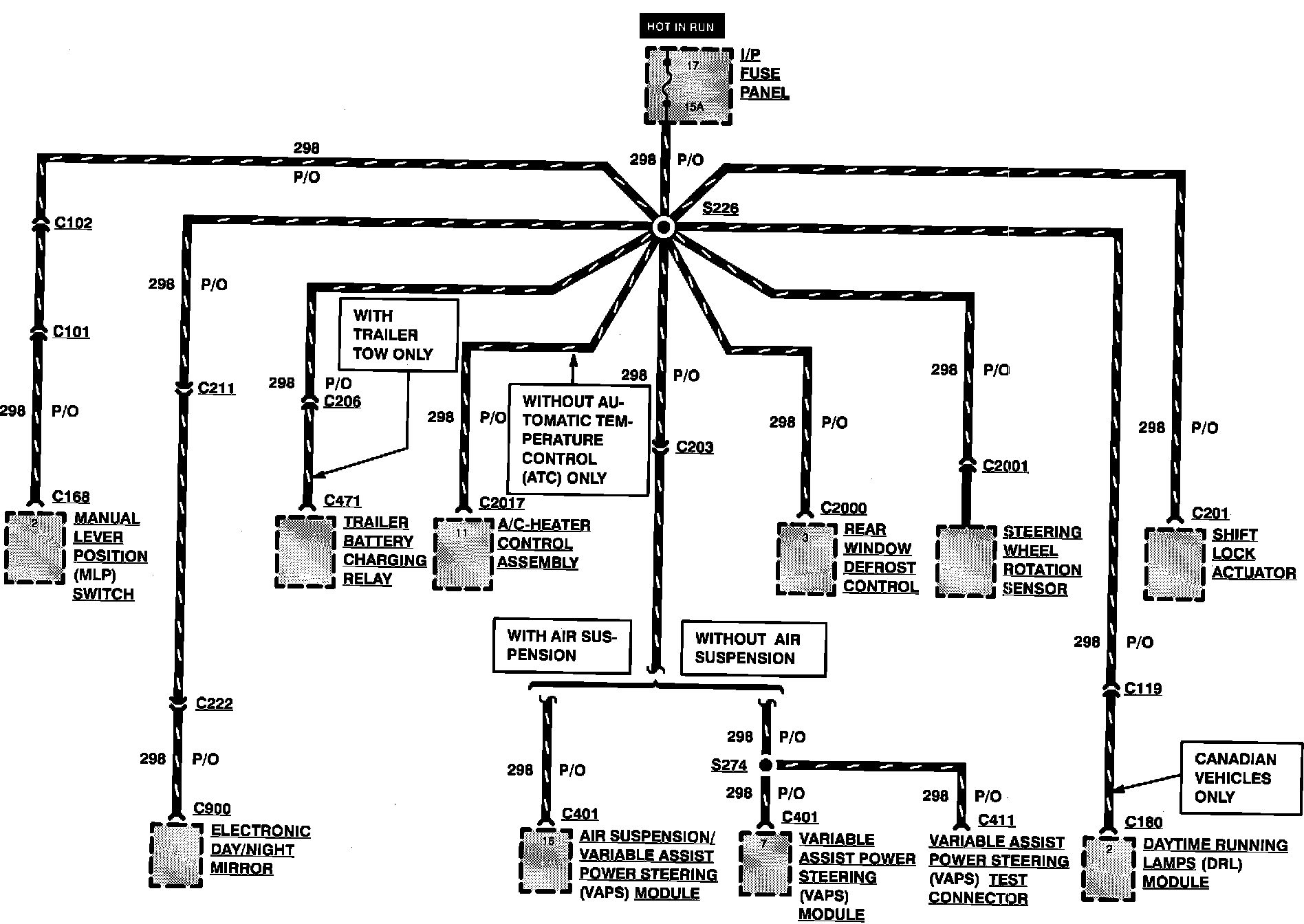

Power Distribution:




Power Distribution:
