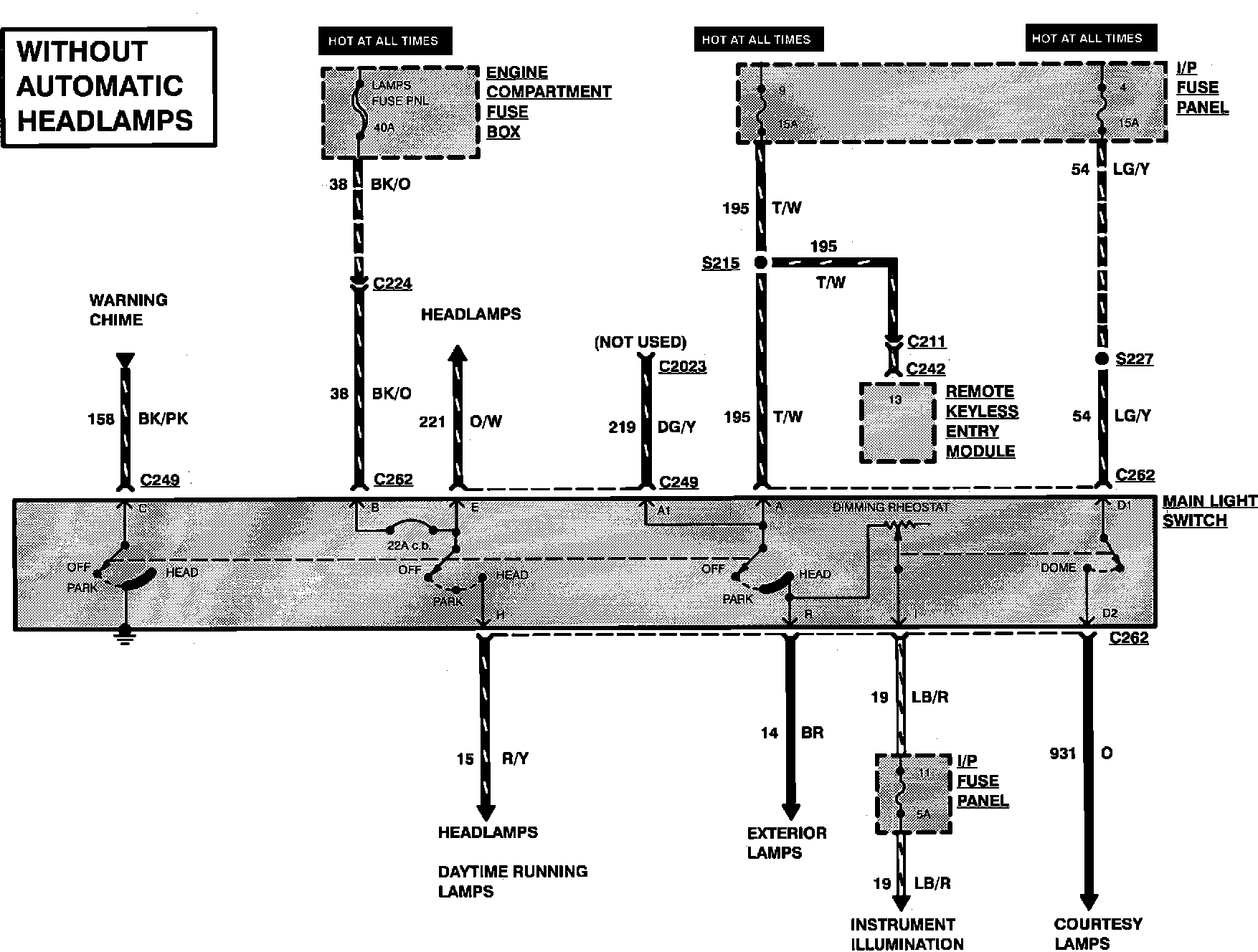

Without Automatic Headlamps

Fuse 11 - protects the following circuits:
- Instrument Cluster Illumination
- Instrument Panel Switch Illumination


Power Distribution:
