Fuse 10

Fuse 10 - protects the following circuits:
- Air Conditioner-Heater
- Automatic Temperature Control (ATC)
- Turn Signal Lamps

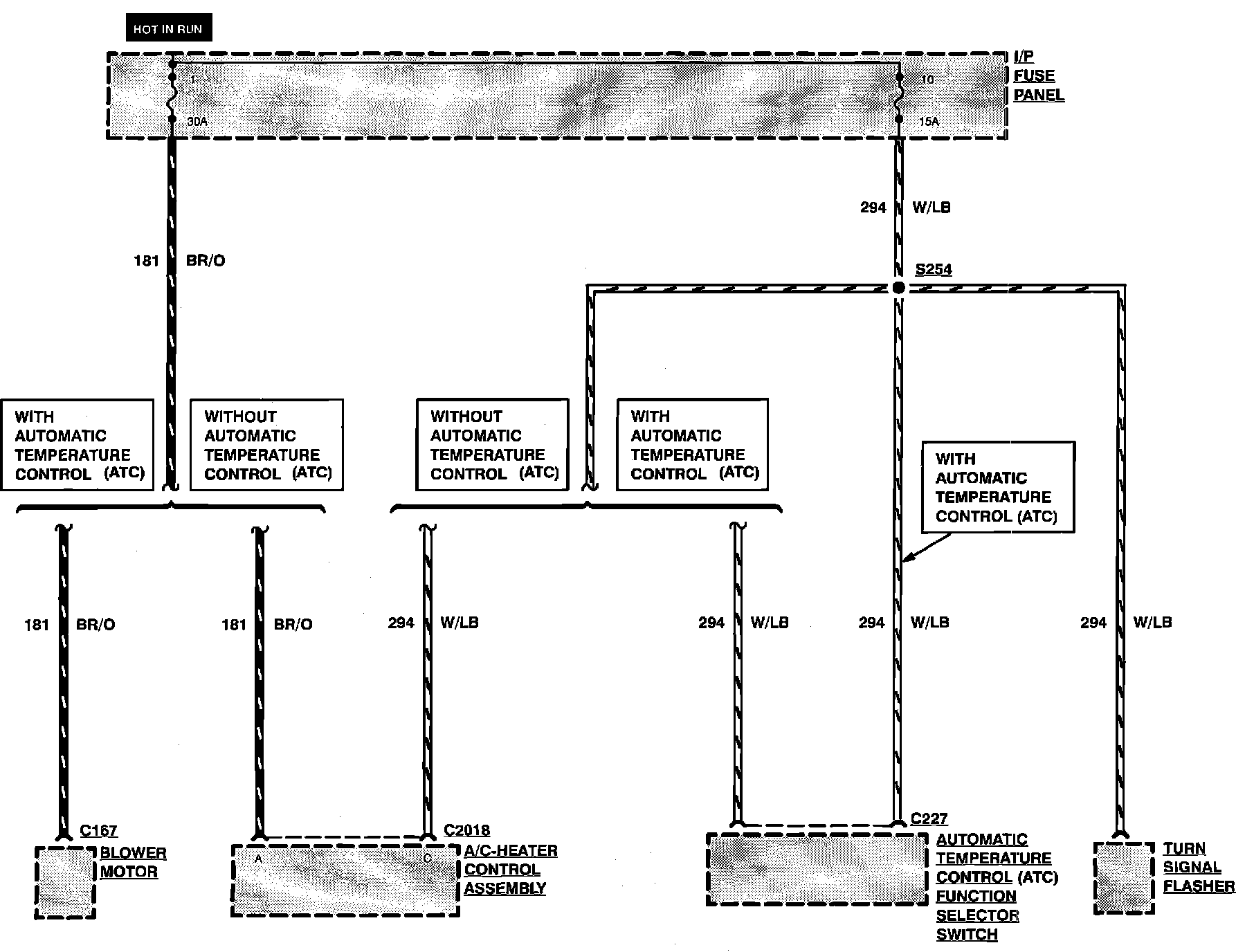

Power Distribution:




Power Distribution:
