Home >> Mercury >> 1994 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> Engine Compartment Fuse Box >> Circuit Breaker Circuits >> Circuit Breaker DOOR LOCK/SEAT MOTORS

Circuit Breaker DOOR LOCK/SEAT MOTORS

Circuit Breaker DOOR LOCKS/SEAT MOTORS - protects the following circuits:
- Power Door Locks
- Power Seats

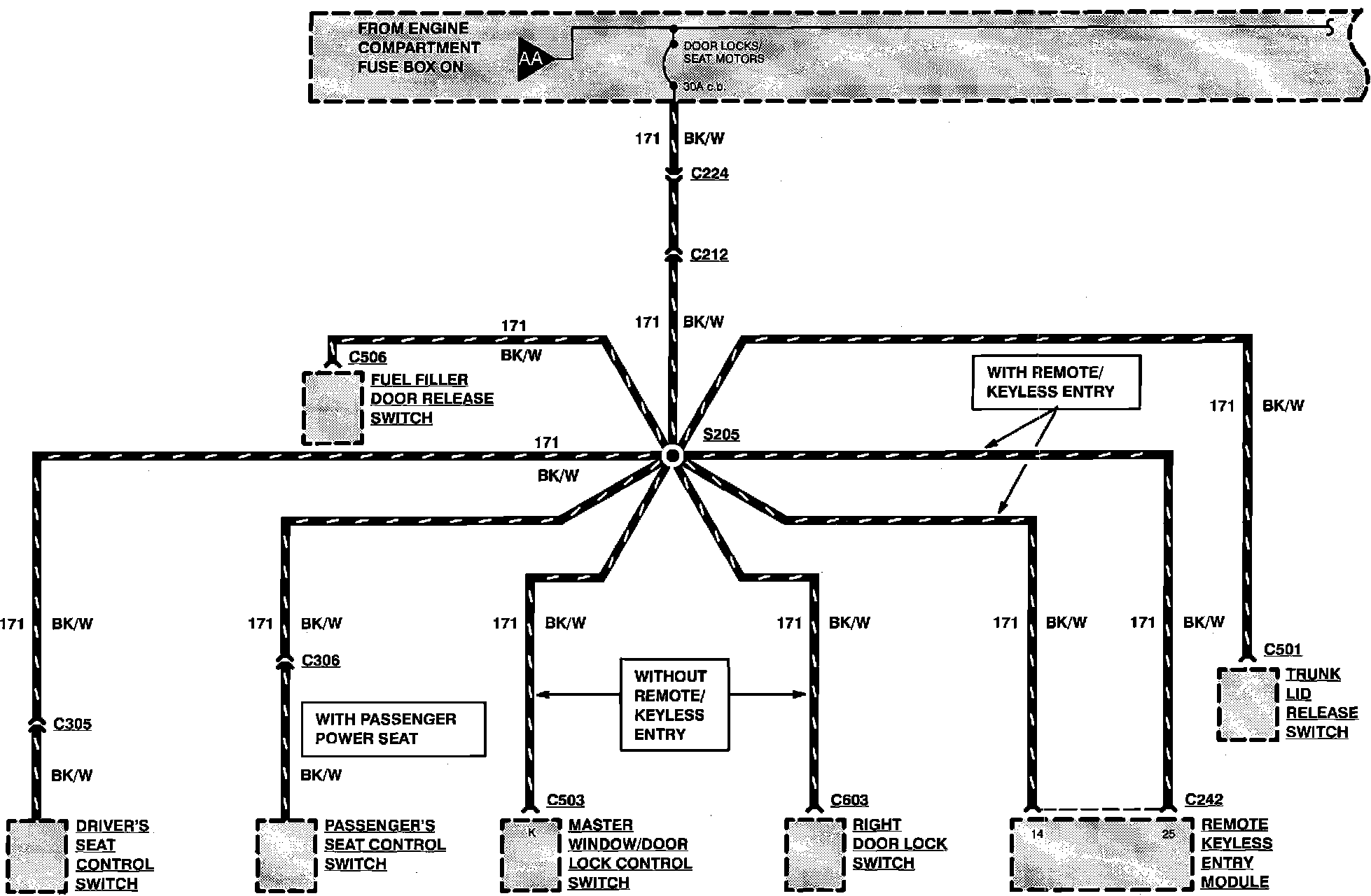

Power Distribution:
