Home >> Mercury >> 1994 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Control Assembly, HVAC >> Without Automatic Temperature Control

Without Automatic Temperature Control

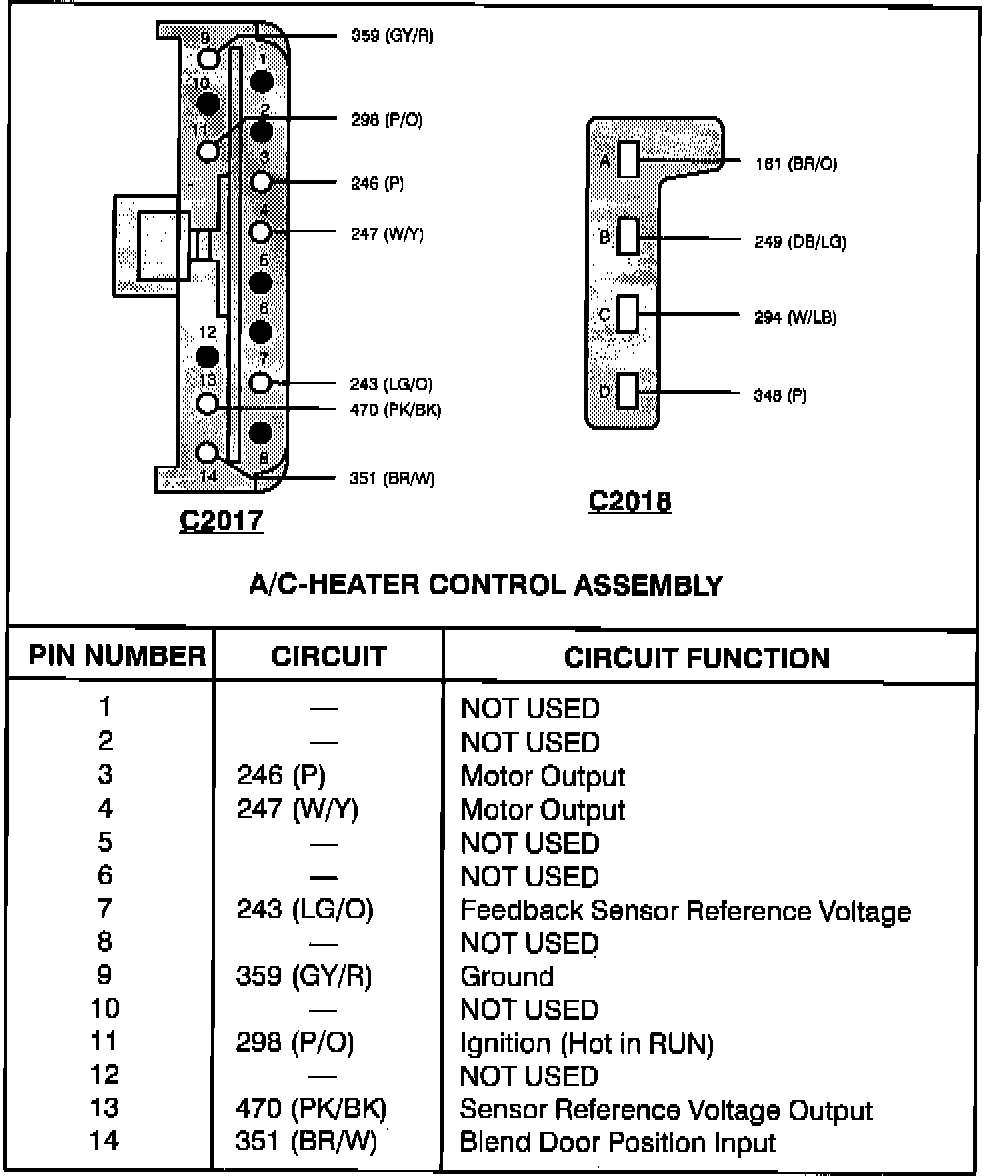

A/C-Heater Control Assembly:
