C35 Check Power to Relay

- Disconnect wire harness from pump motor relay.

Connector:

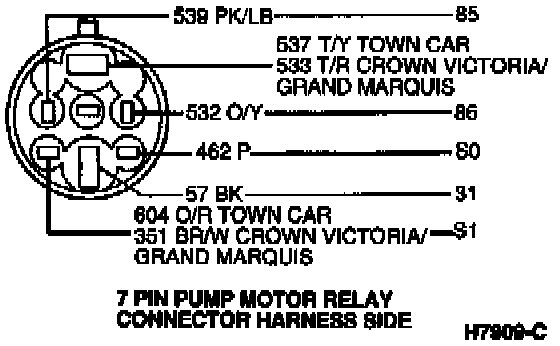

- Check voltage between pin 30 on wire harness to pump motor relay connector and ground.

- Is voltage reading over 10 volts?

YES -- Go to C36. C36 Check Power to Relay Coil

NO -- Service or replace battery, fuse, or harness.
