Pinout Values and Diagnostic Parameters

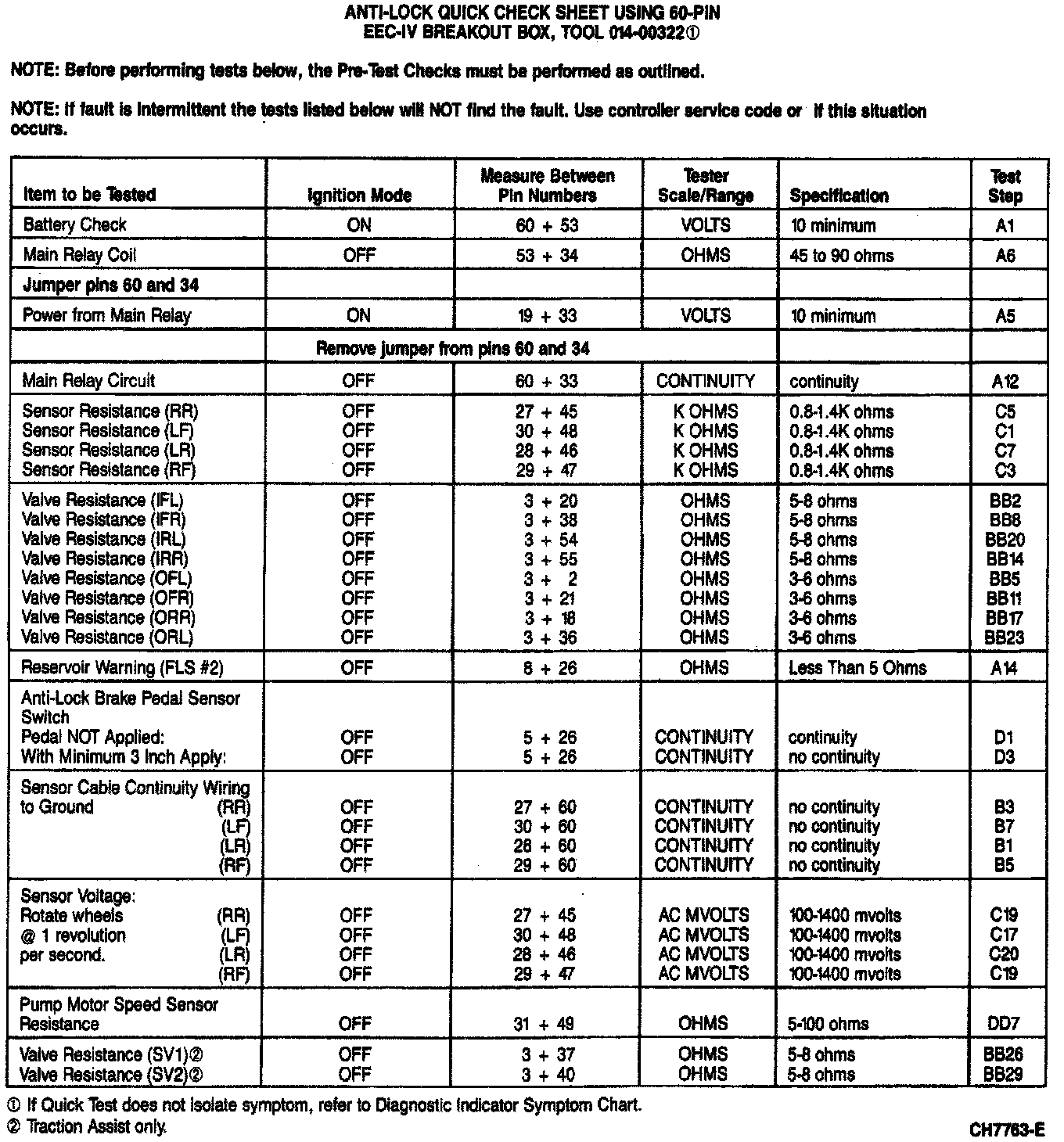

Quick Check Sheet:
NOTE:
Tests are performed using 60-Pin EEC-IV Breakout Box 01400322.
