Power Door Lock Switch: Testing and Inspection

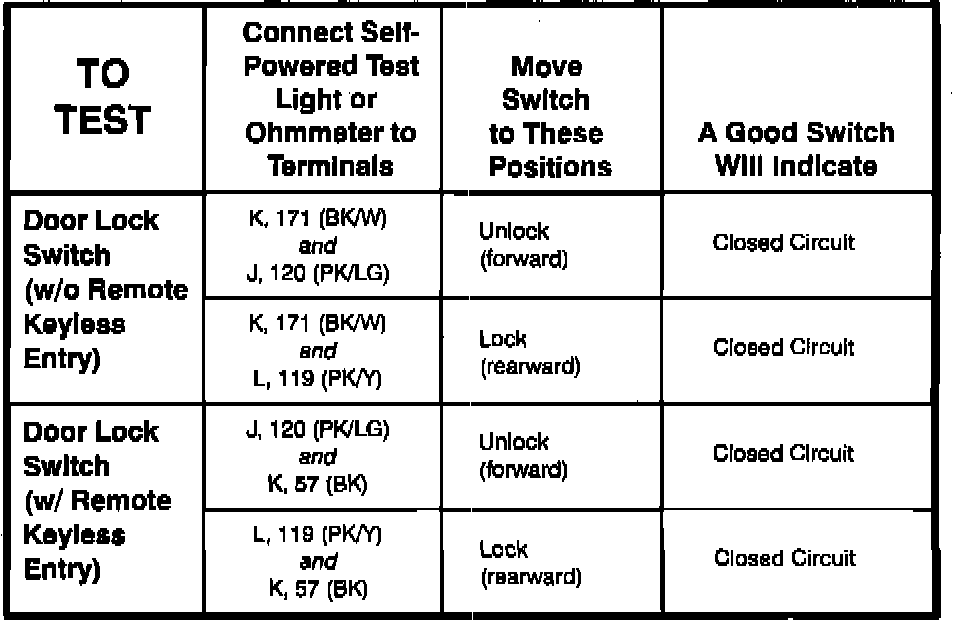

Component Testing Procedure-Lock Circuits:

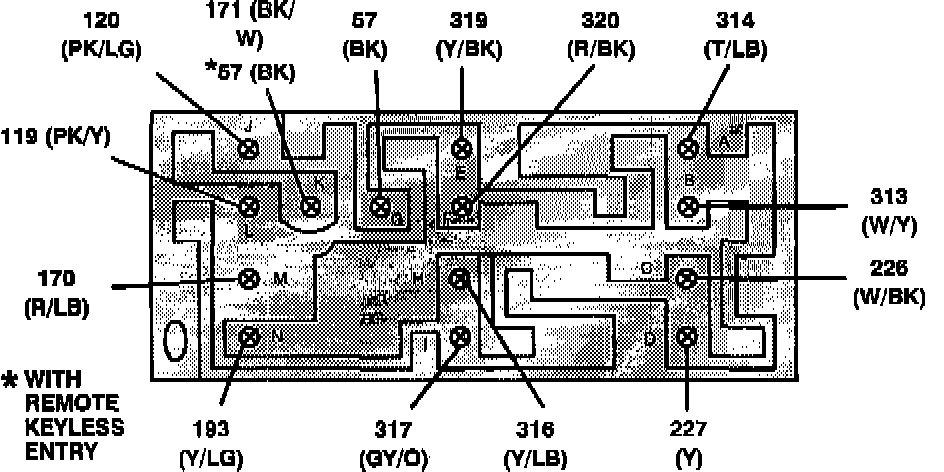

Terminal ID On Switch:




Schematic:
