Front Door Panel: Service and Repair

Removal

1. Remove outside rear view mirror remote control unit.

2. Remove window regulator control switch housing by gently prying up, starting at the front.

3. Disconnect all connectors from window regulator control switch housing.

4. Remove inside door handle cup (22634) by gently prying at screwdriver slot with a screwdriver.

5. Remove push pin from front door trim panel upper front extension and remove screw.

6. Remove lower self-tapping screw retaining front door trim panel to door inner panel.

7. On Grand Marquis only, pry up screw covers from door pull handle and remove screws and handle.

8. Lift front door trim panel upward and snap out trim panel.

9. Disconnect wire harnesses from door panel as required and remove front door trim panel.

Installation

1. Connect wire harnesses to front door trim panel as required.

2. Install front door trim panel by pushing in and down until it snaps into place.

3. Install all self-tapping screws retaining front door trim panel to door inner panel.

4.On Grand Marquis only, install door pull handle, tighten screws and install screw covers.

5.Install push pin covering screw on trim panel upper front extension.

6. Install inside door handle cup.

7. Install window regulator control switch housing.

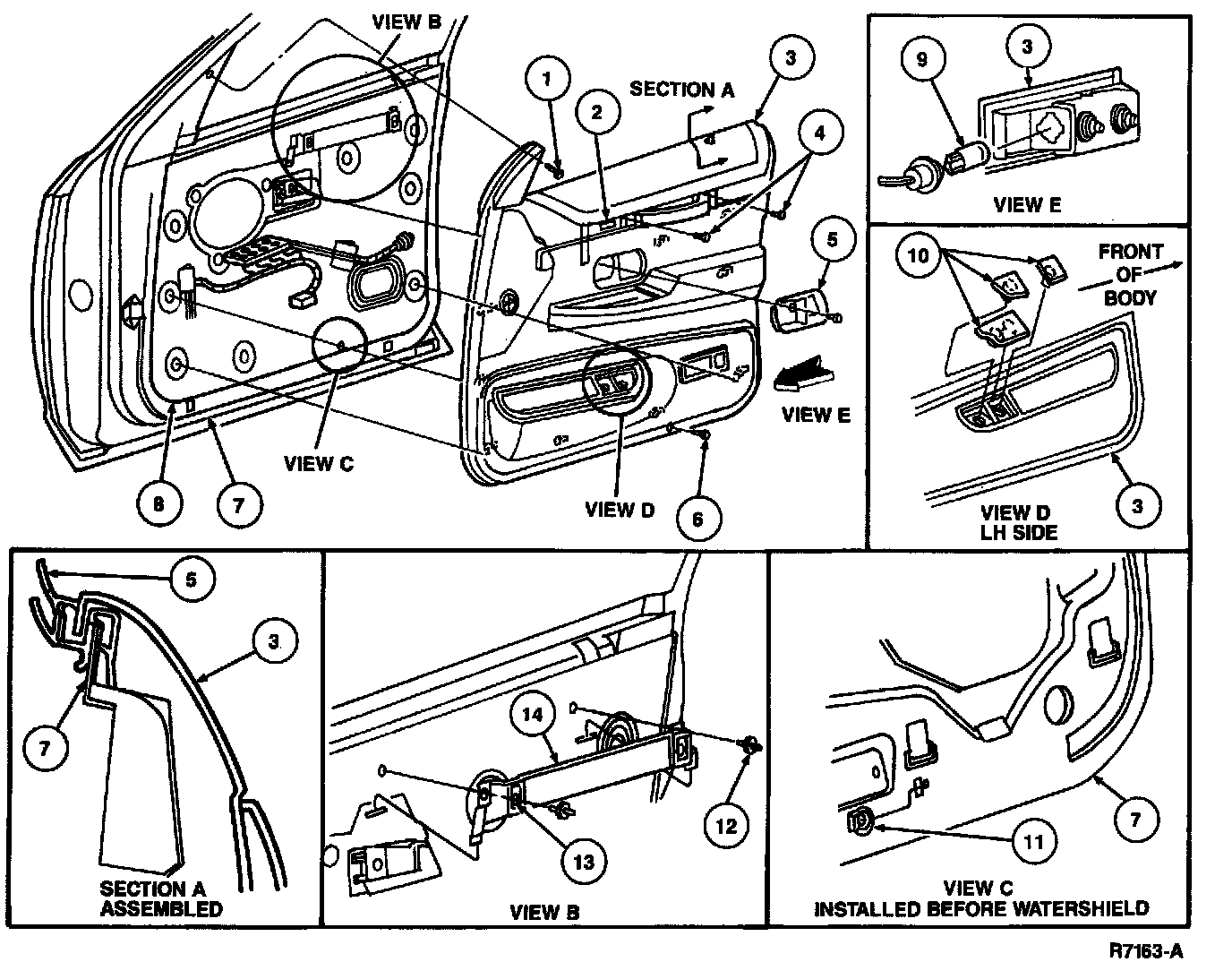

Front Door:
