Home >> Mercury >> 1994 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Part 1 of 2

Part 1 of 2

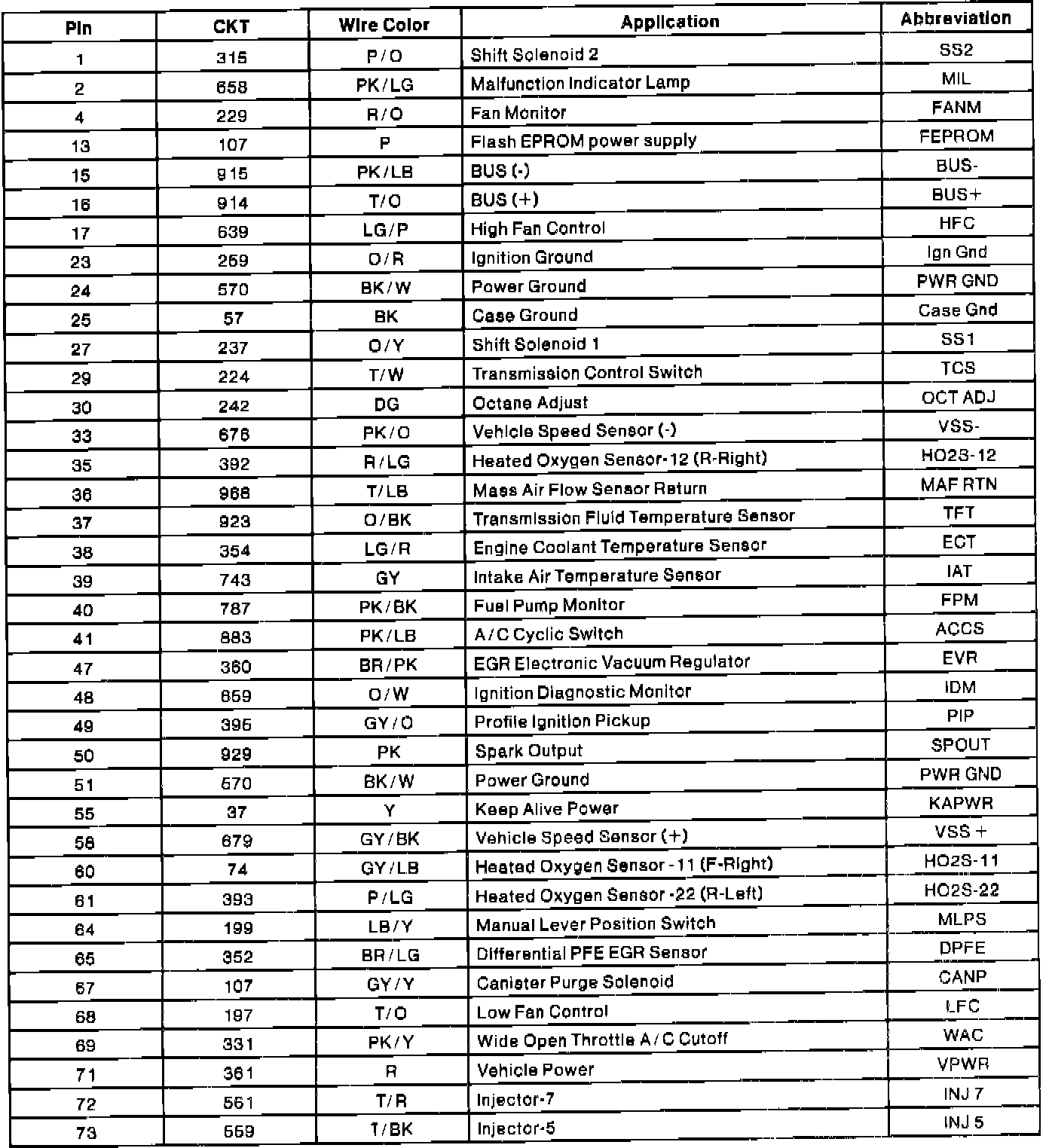

PCM Connector Pin Usage (Part 1 Of 2):
