Ignition Coil: Service and Repair

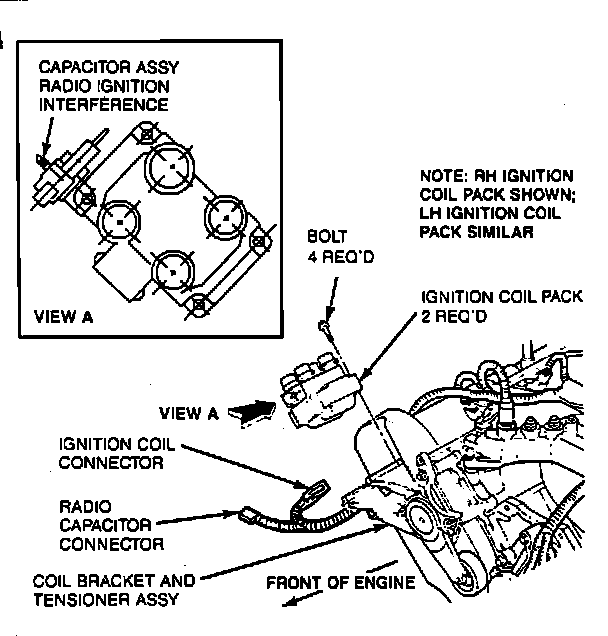

Coil Pack:

REMOVAL
1. Disconnect negative battery cable.
2. Disconnect electrical connectors from coil pack and capacitor.
3. Disconnect spark plug wires by squeezing locking tabs and twisting while pulling upward.
4. Remove the four coil pack retaining screws. Remove coil pack and capacitor. Save the capacitor for installation with the new coil pack.






INSTALLATION
1. Position the coil pack and capacitor to the mounting bracket.
2. Install retaining screws.
3. Tighten to 40-61 in lb (4.5-7.0 Nm).
4. Apply silicone dielectric compound D7AZ-19A331-A or equivalent to all spark plug wire boots.
5. Install each wire connector to the proper terminal on the coil pack. Make sure the boots are fully seated.
6. Connect coil pack and capacitor electrical connectors.
7. Connect the negative battery cable.
