9 - Lack/Loss of Power
9 - Lack/Loss of Power
*** THIS ARTICLE REFLECTS CHANGES MADE BY TSB #93-26B-5, DATED 12-93

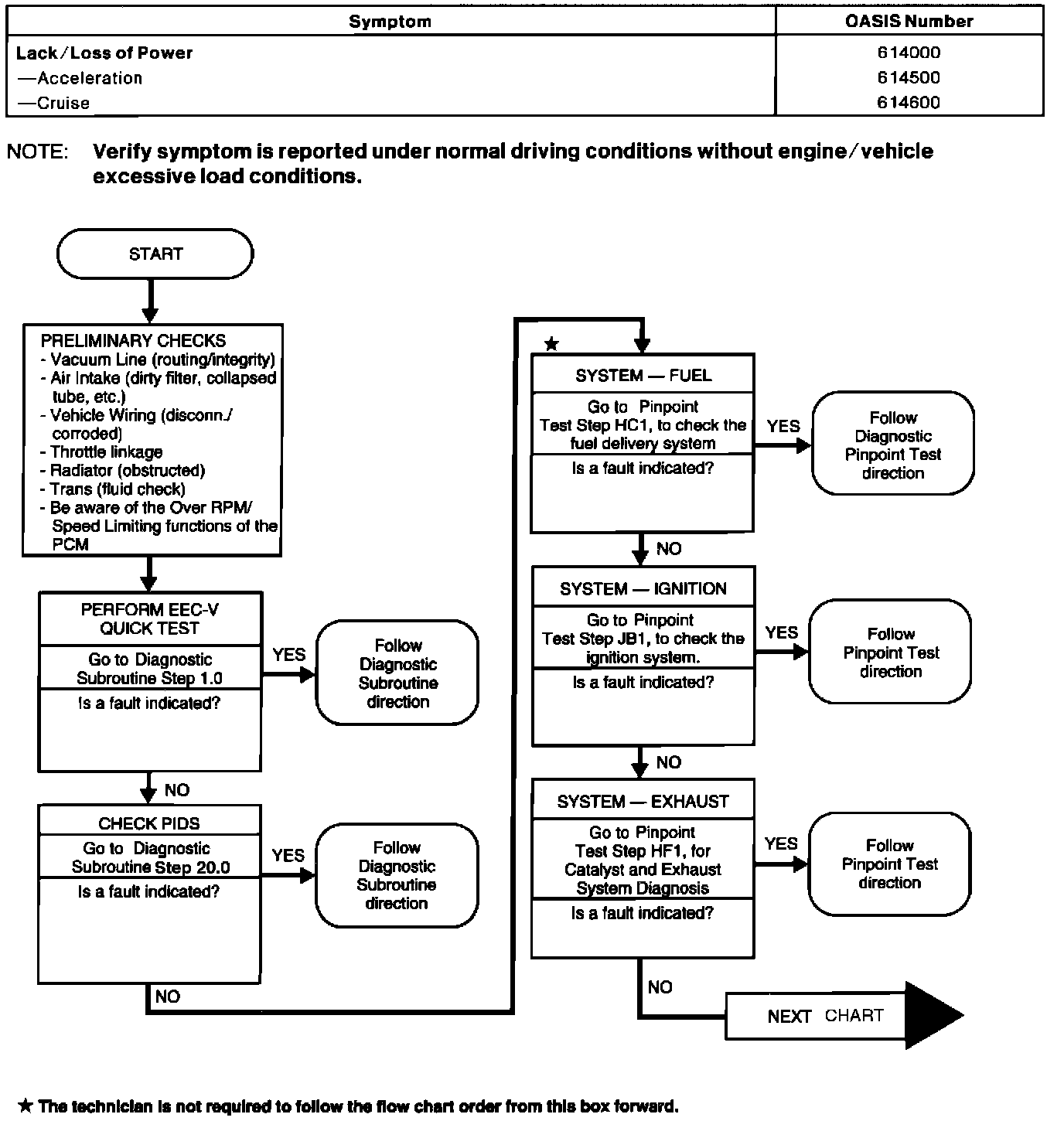

Chart 9 (Part 1 Of 2):

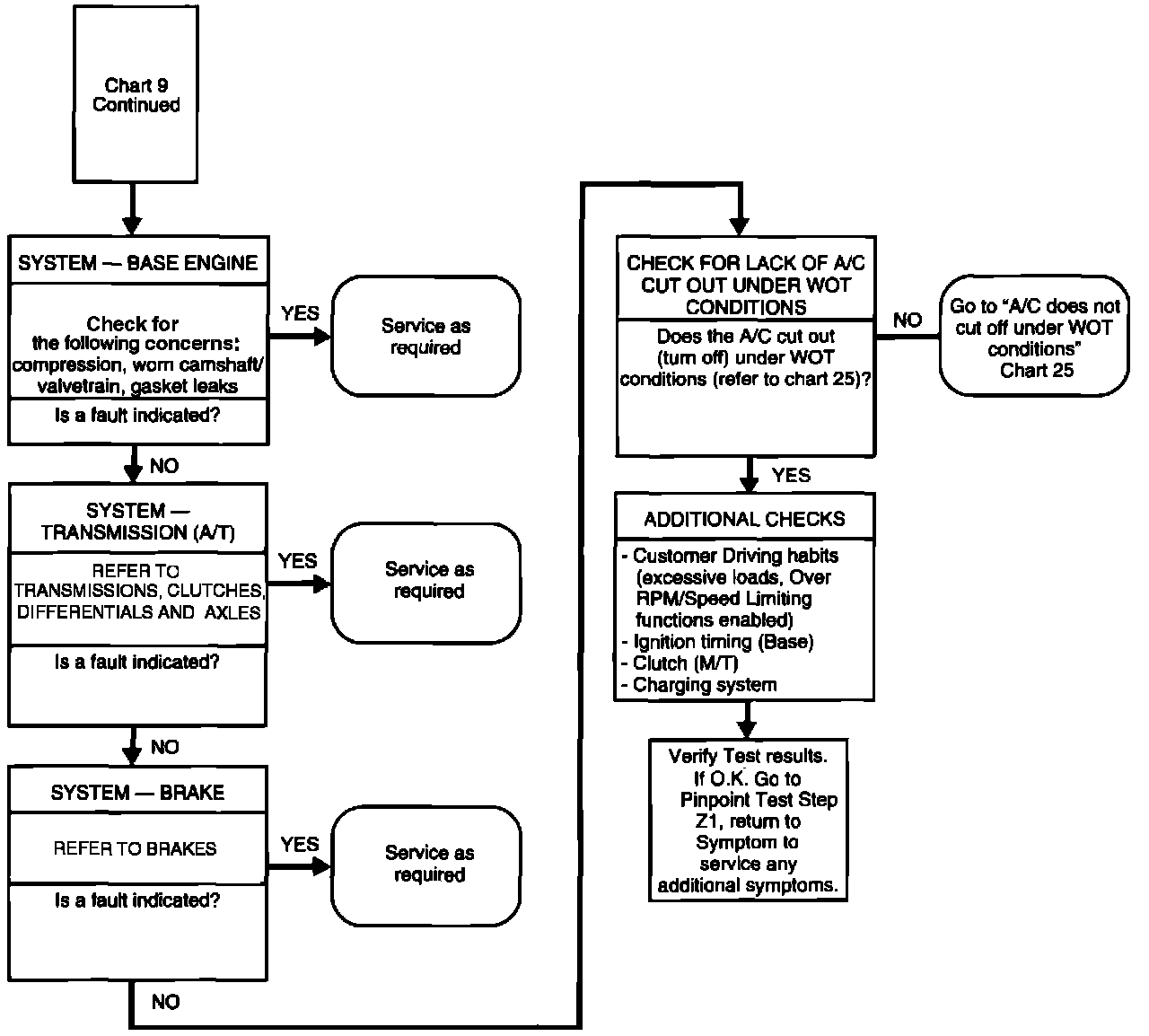

Chart 9 (Part 2 Of 2):
