18 - Runs Cold, Electric Cooling Fan Always On
18 - Runs Cold, Electric Cooling Fan Always On

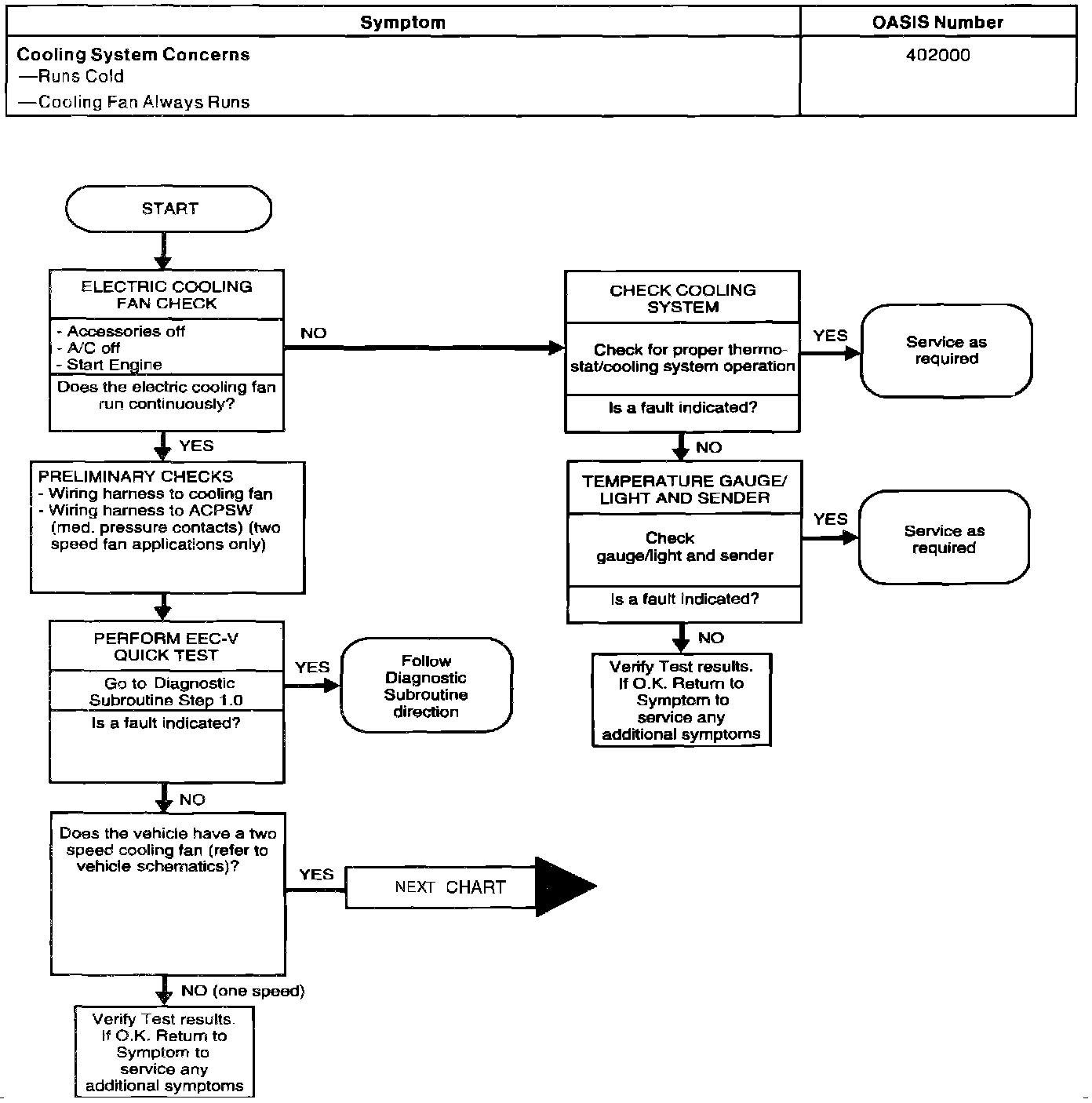

Chart 18 (Part 1 Of 2):

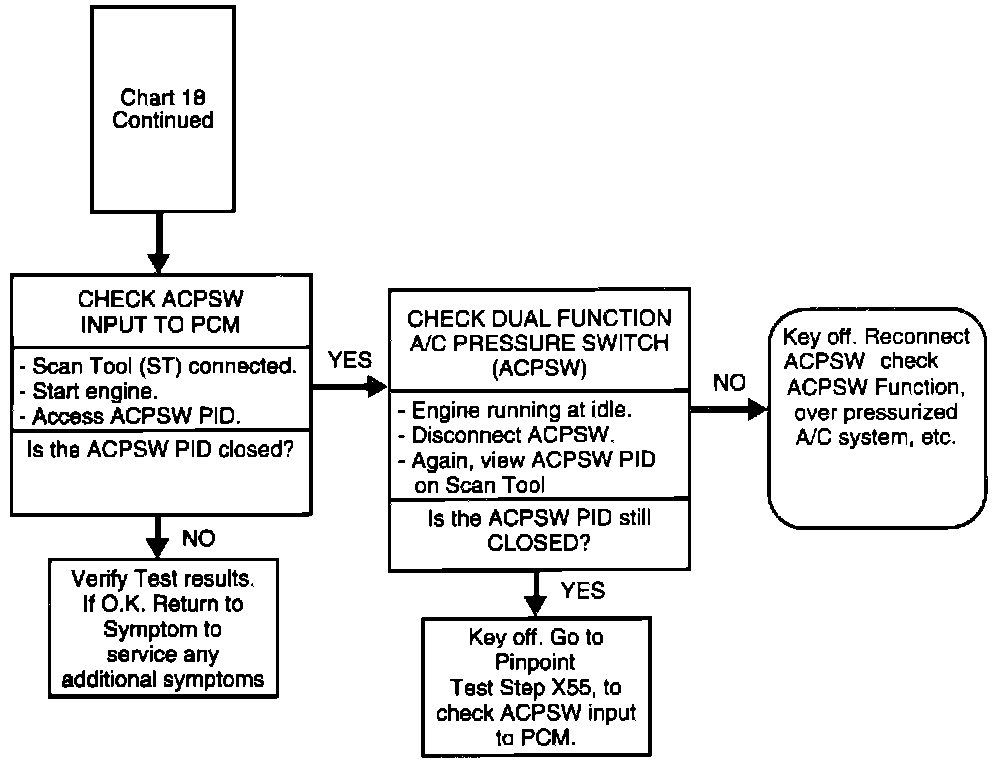

Chart 18 (Part 2 Of 2):
