TG - Electronic Transmission - Continuous Memory Service Codes
>>

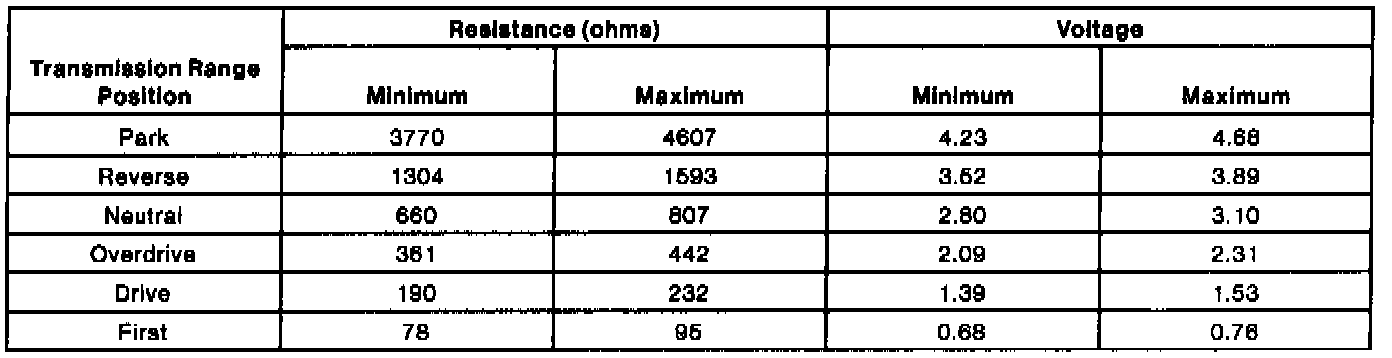

Manual Lever Position Sensor Resistance Specifications Table
Manual Lever Position Sensor Resistance Specifications Table
Manual Lever Position Sensor Resistance Specification Table:
