Pinpoint Test Schematics

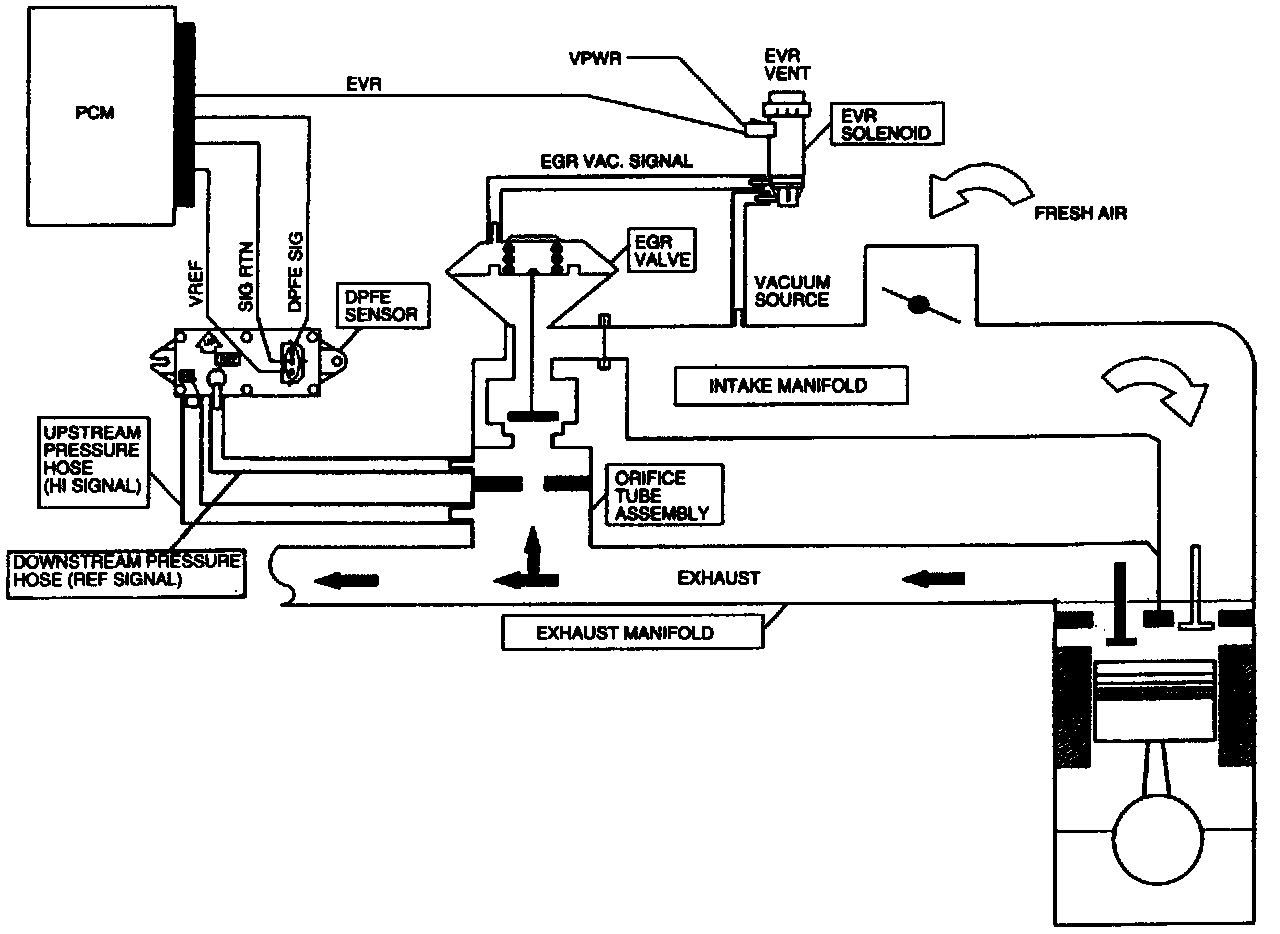

Differential Pressure Feedback Electronic EGR System:

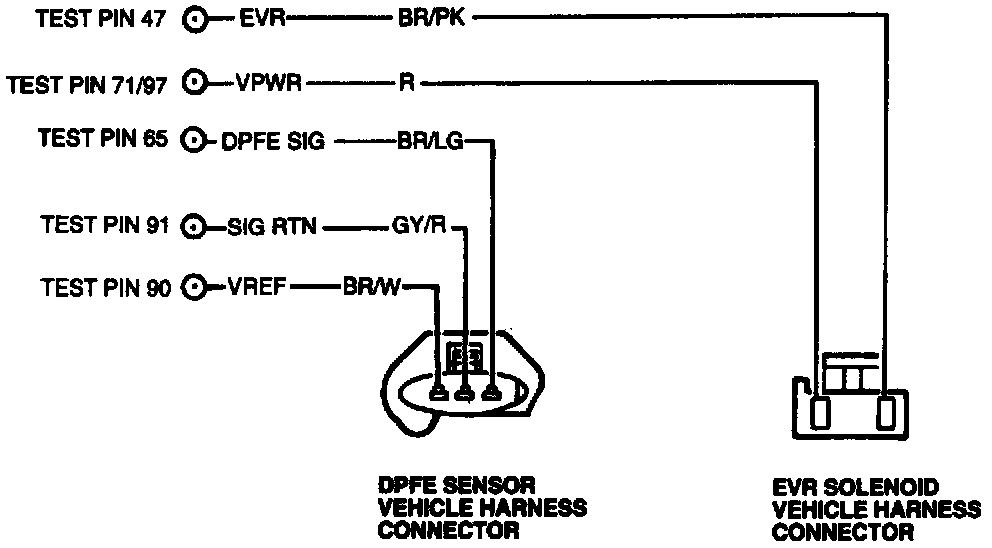

Pinpoint Test Schematic:
