Home >> Mercury >> 1994 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Integrated Control Relay Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

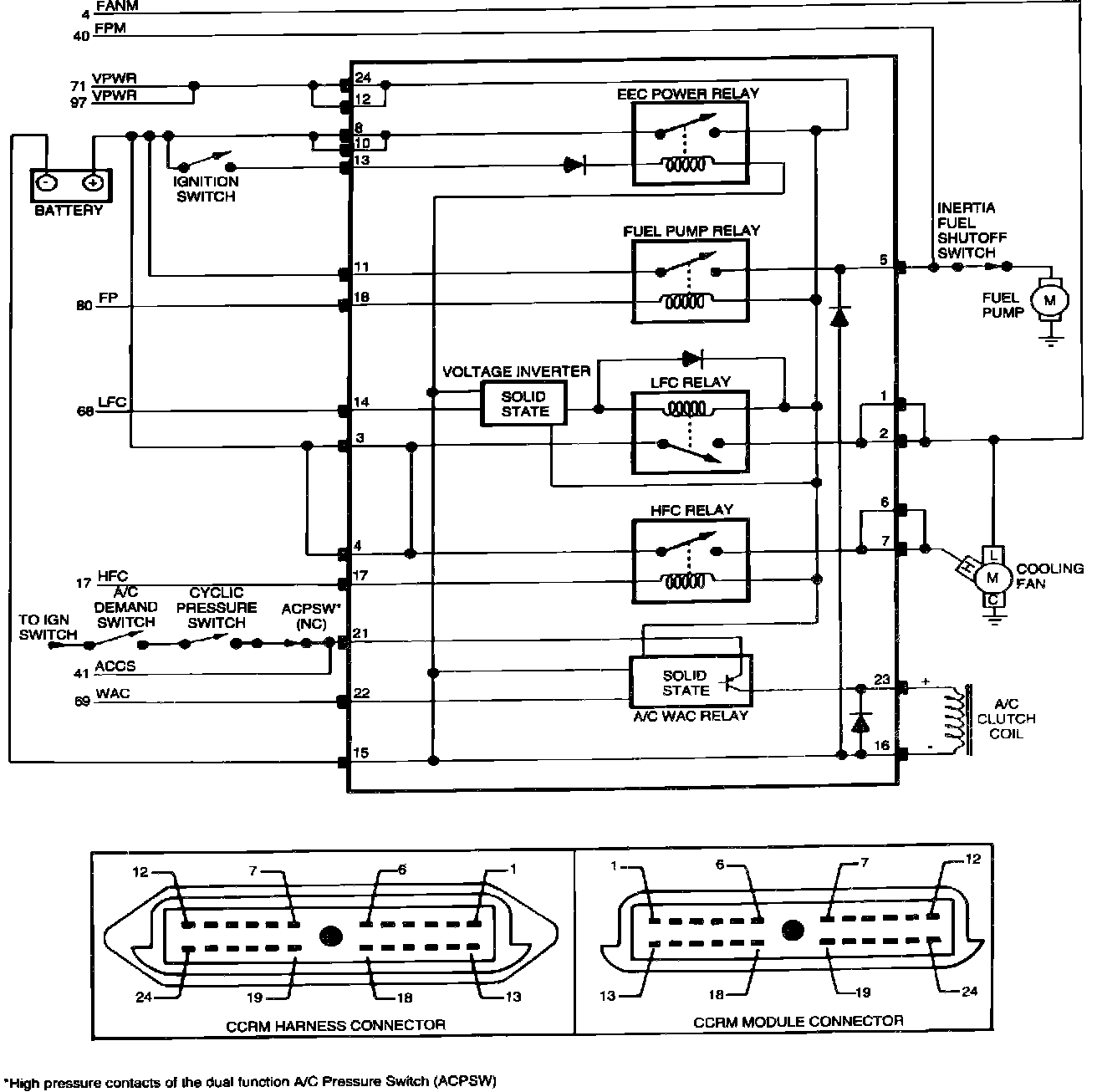

Constant Control Relay Module Schematic:

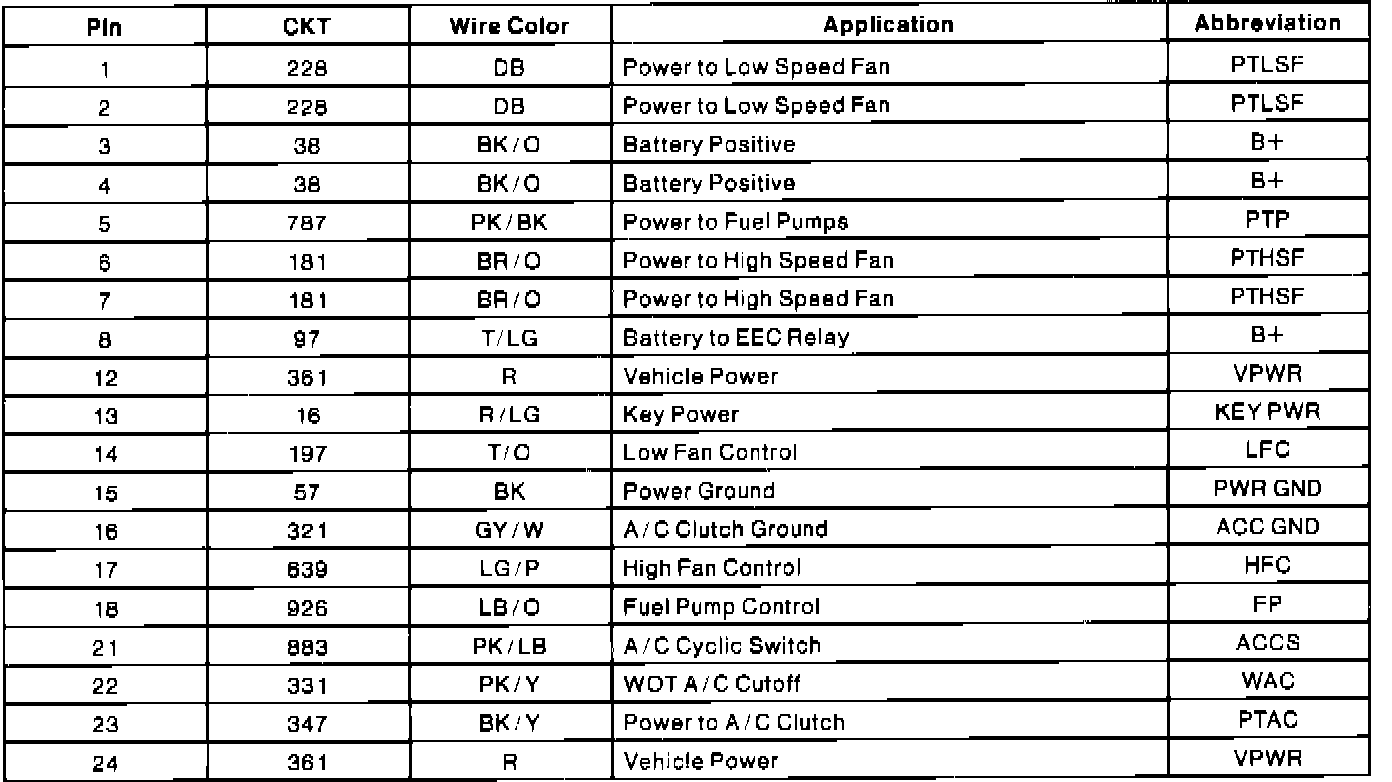

Constant Control Relay Module Pin Usage:
