Data Link Connector: Description and Operation

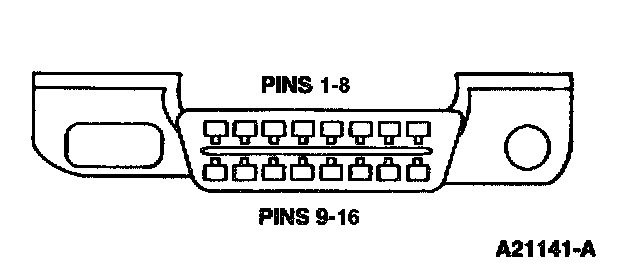

OBD II Data Link Connector (View From Vehicle Side):

PURPOSE
The Data Link Connector (DLC) provides access and/or control of the vehicle information, operating conditions and diagnostic information. The DLC is rectangular in design and capable of accommodating sixteen terminals.
