Rear

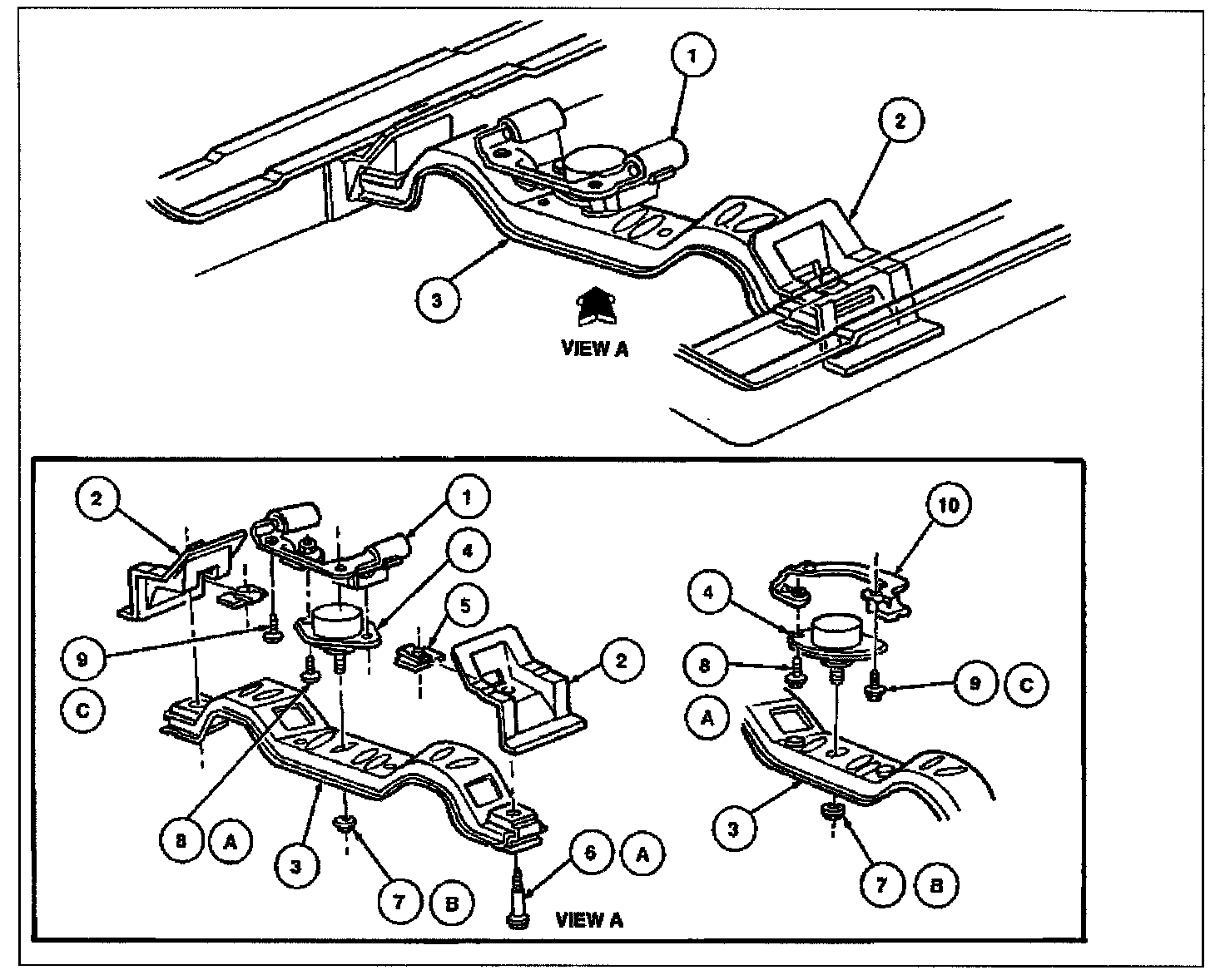

Rear Engine Mount Removal and Installation Procedure










Removal

1. Raise vehicle on hoist.

Note: Keep automatic transmission weight on the mount during nut removal.

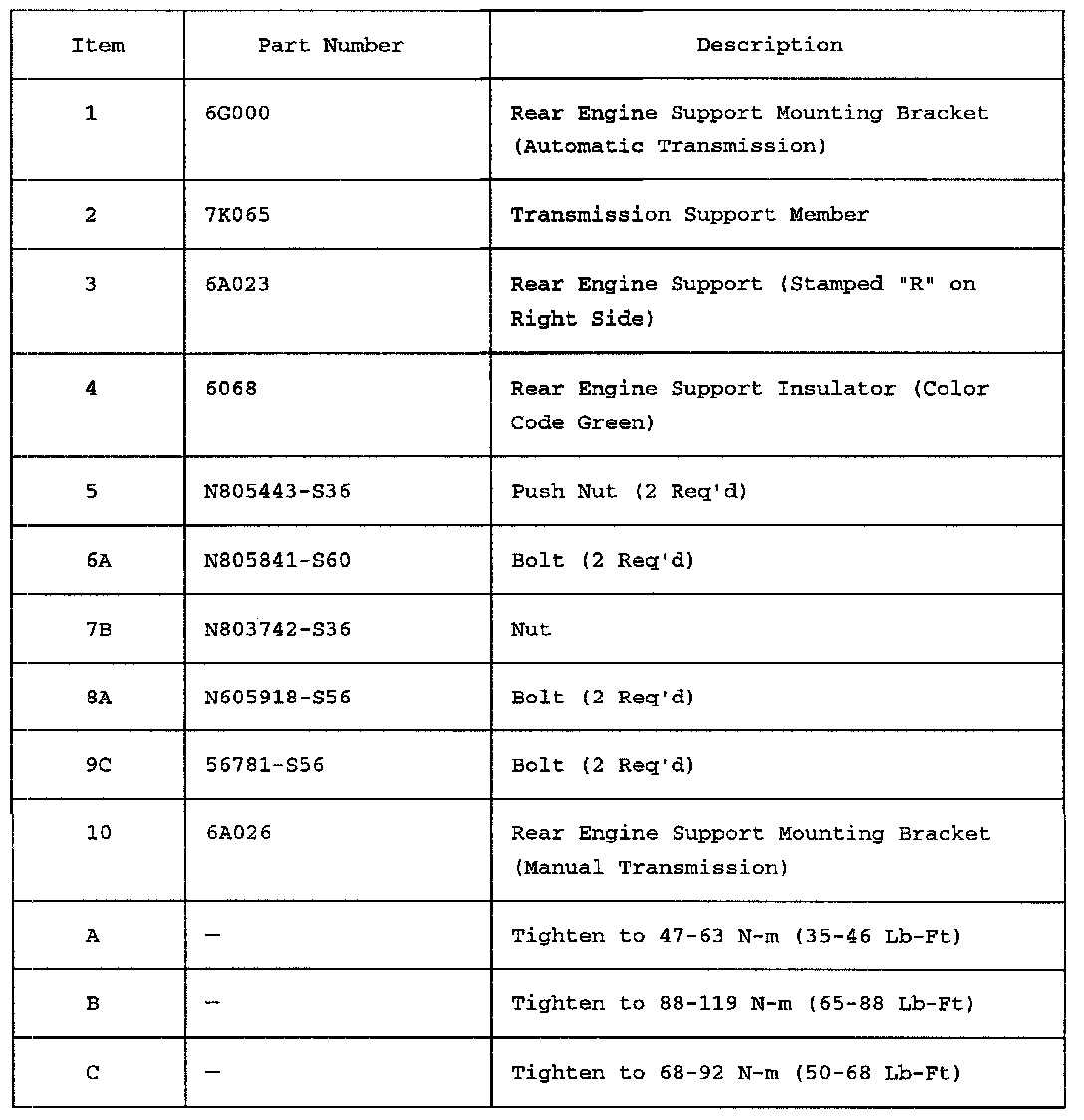

2. Support automatic transmission with a jack and wood block. Remove the rear nut retaining the rear engine support insulator (6068) to the rear engine support (6A023).
3. Remove two bolts retaining the rear engine support to the transmission support members (7K065). Remove rear engine support.
4. Remove two bolts retaining rear engine support insulator to the rear engine support mounting bracket (6A026). Remove rear engine support insulator.

Installation

1. Position rear support insulator on rear engine support mounting bracket, Install two retaining bolts. Tighten to 47 - 63 Nm ( 35 - 46 lb ft ).
2. Install rear engine support to the transmission support members. Tighten retaining bolts to 47 - 63 Nm ( 35 - 46 lb ft ).
3. Lower automatic transmission. Install rear engine support insulator to the rear engine support retaining nut. Tighten to 88 - 119 Nm ( 65 - 88 lb ft ).
4. Lower vehicle.
