Home >> Mercury >> 1994 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Testing and Inspection >> With Autolamps

With Autolamps

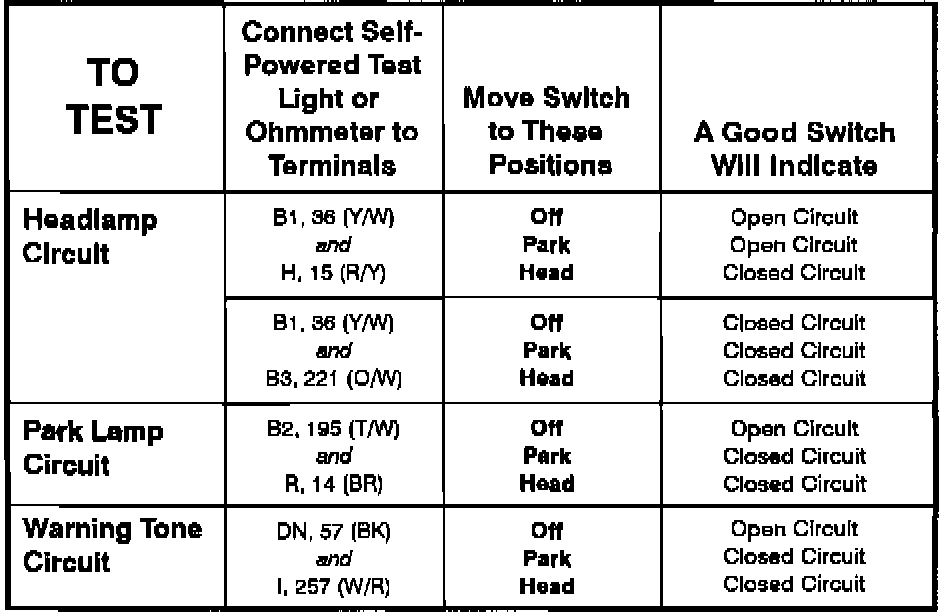

Component Testing Procedure:

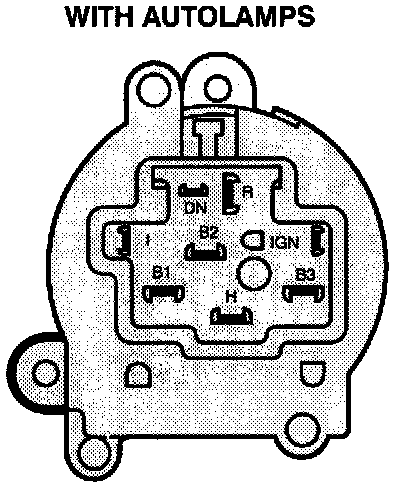

Main Light Switch - Terminal Locations (With Autolamps):

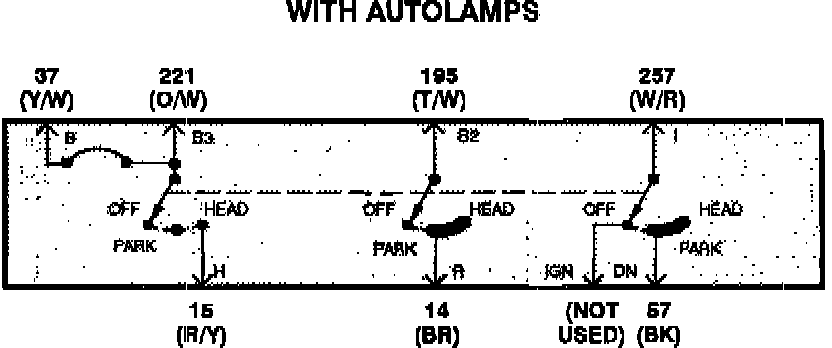

Schematic:
