Blower Motor Switch: Testing and Inspection

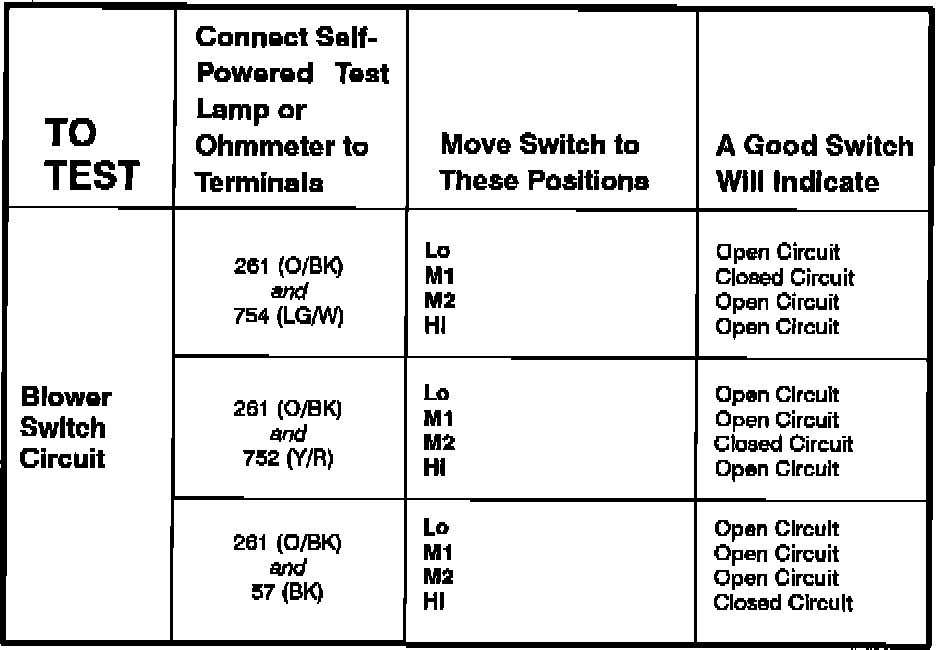

Component Testing Procedure:

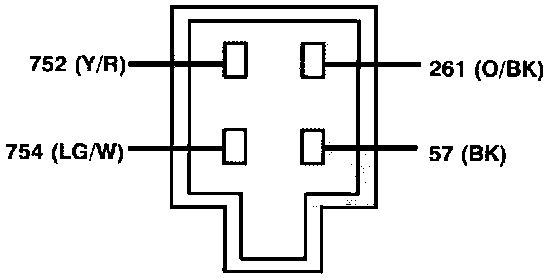

Blower Motor Switch - Terminal Locations:

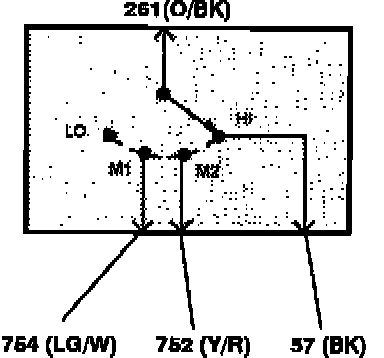

Schematic:
