Front Safety Belt

REMOVAL
1. Remove front seat and track assembly.
2. Remove inboard front safety belt buckle end assembly.
3. Remove safety bolt from slide bar.
4. Remove front safety belt buckle end assembly (on LH side of vehicle, disconnect safety belt warning chime wiring from floorpan wiring).

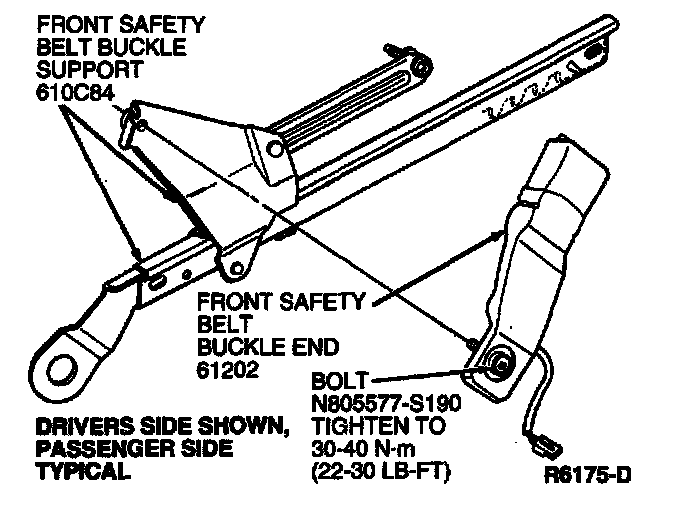

Lap Belt And Buckle Assembly:

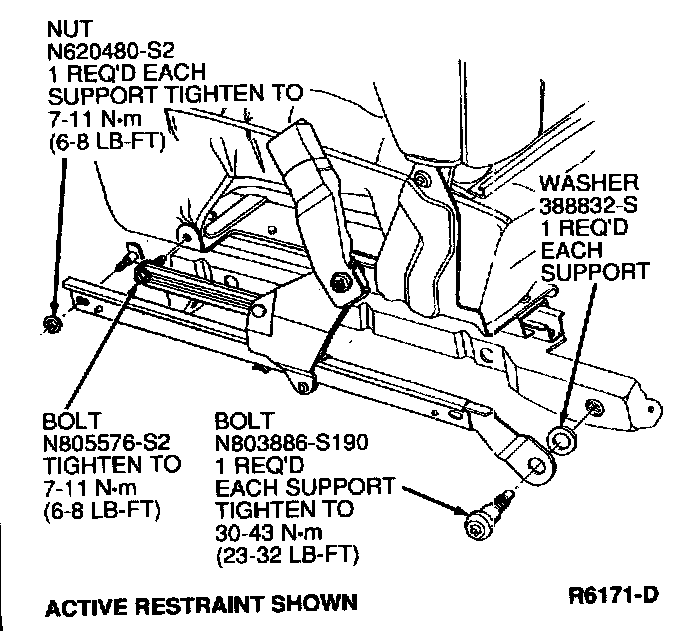

Seat Support Assembly:

INSTALLATION
1. Position buckle assembly to slide bar. Tighten bolt to 30-40 Nm (22-30 lb-ft).
2. Install seat and track assembly.
3. Check restraint system for proper operation.
