Pinout Values and Diagnostic Parameters

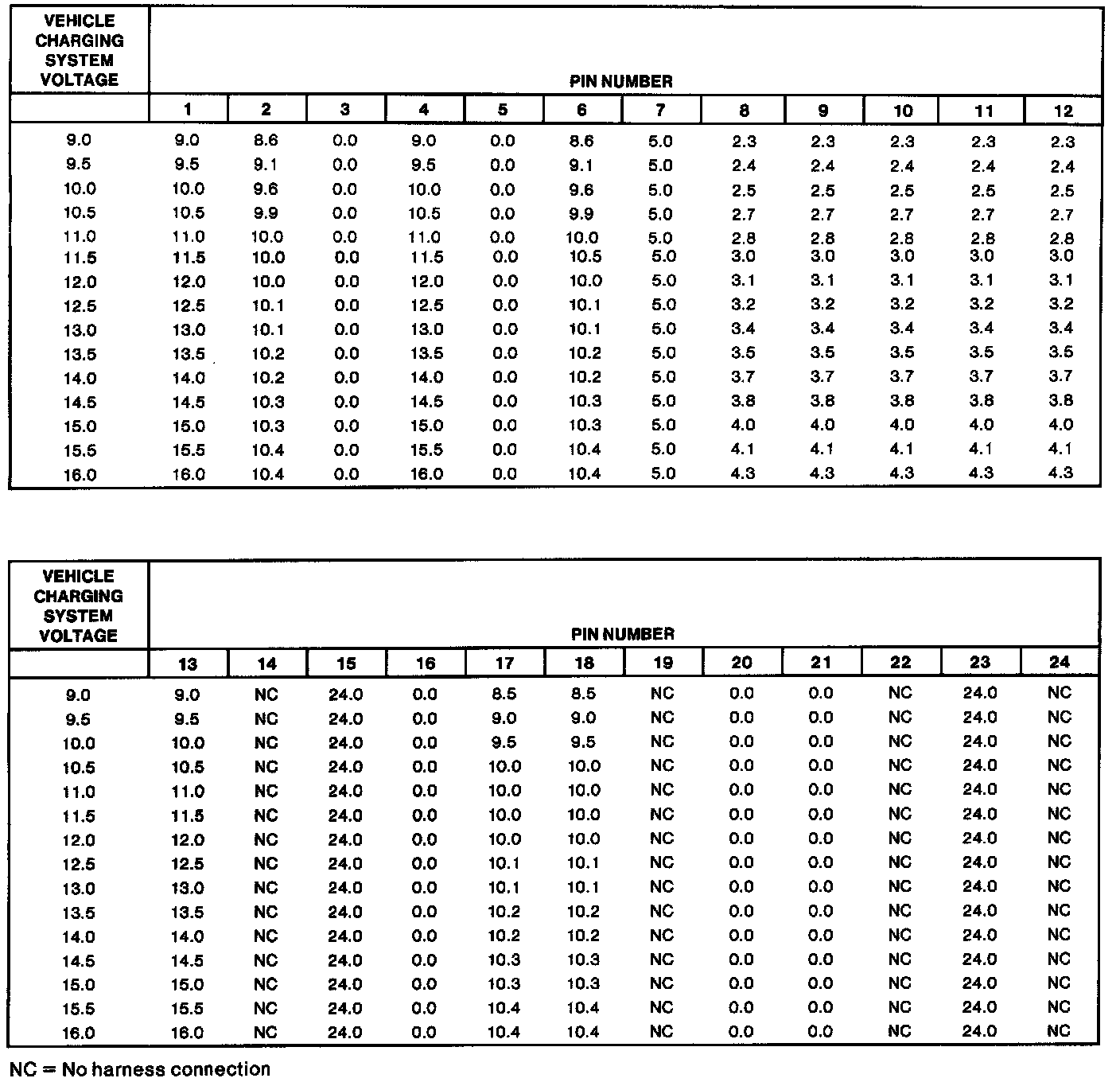

- Air Bag Diagnostic Monitor Typical Pin Voltages With System Connected and Engine Running
