PCV Valve Hose: Service and Repair

EGR Components:

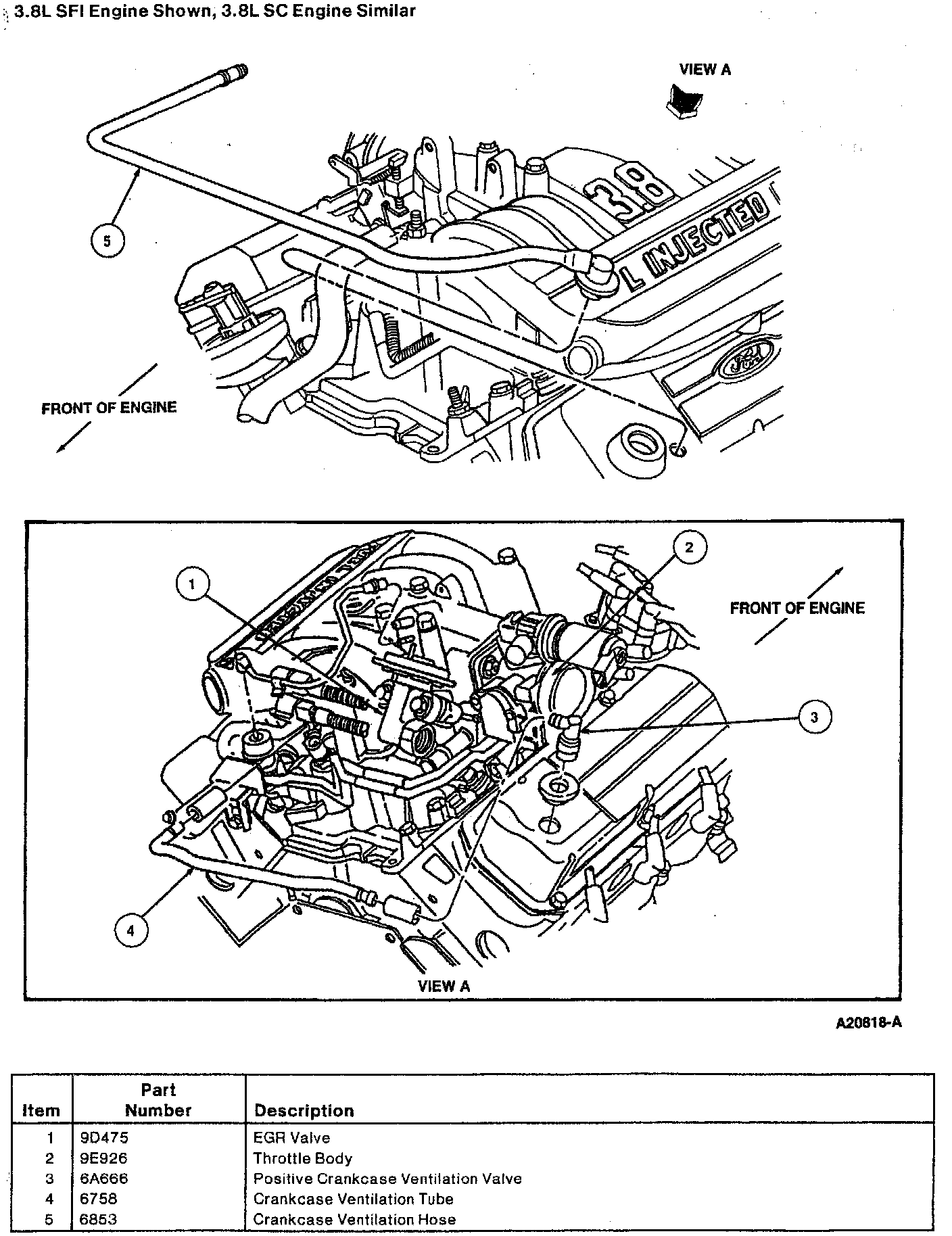

PCV System:

REMOVAL
^ Disconnect crankcase ventilation tube from Positive Crankcase Ventilation (PCV) valve.
^ Remove the PCV valve from the PCV crankcase ventilation valve grommet.
^ Inspect PCV valve and crankcase ventilation grommet for deterioration. Replace if necessary.

INSTALLATION
^ To install, reverse removal procedure.
