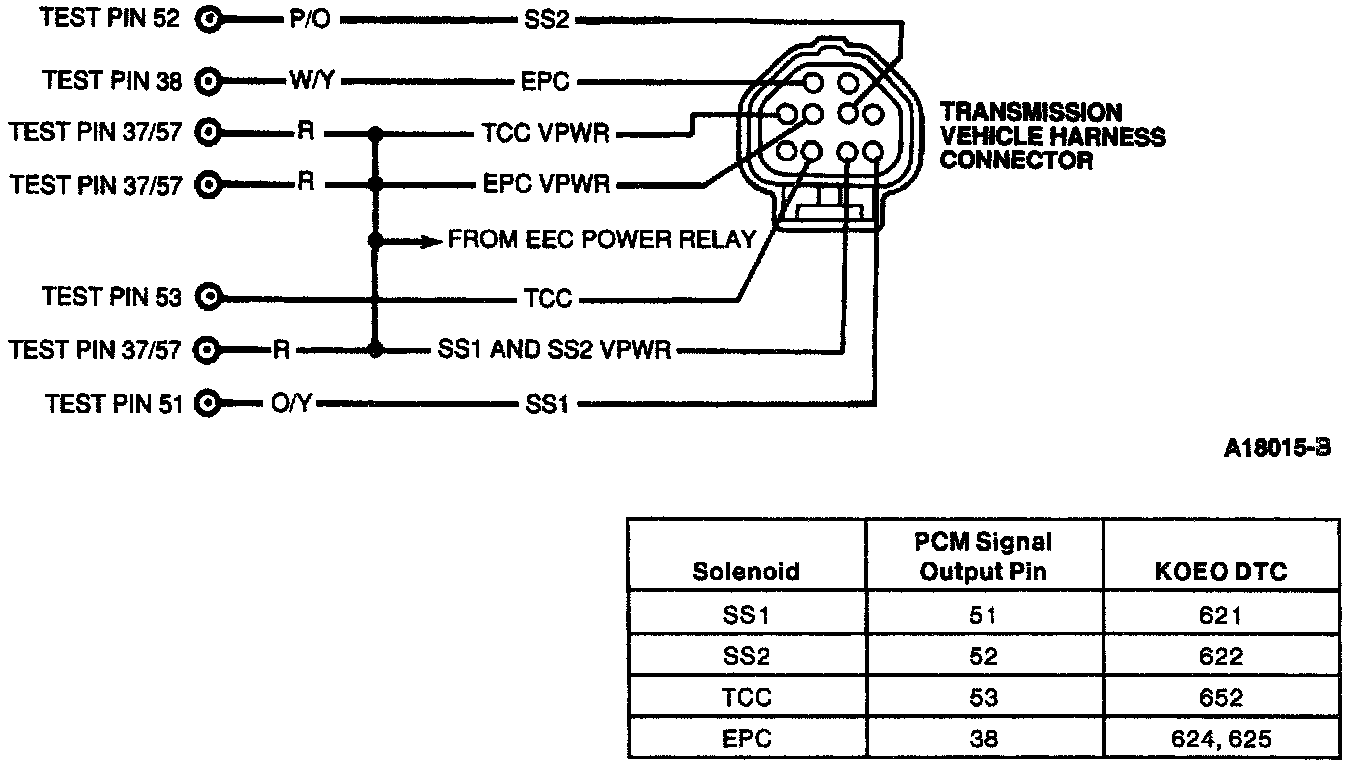

TC - Testing Schematic

Transmission Solenoids Connector View:






CIRCUIT / PIN / WIRE COLOR

TCC / 53 / brown/orange
