Mercury
>>
1994
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
AC - EEC-IV No Start (Electronic Ignition-High Data Rate)
>>

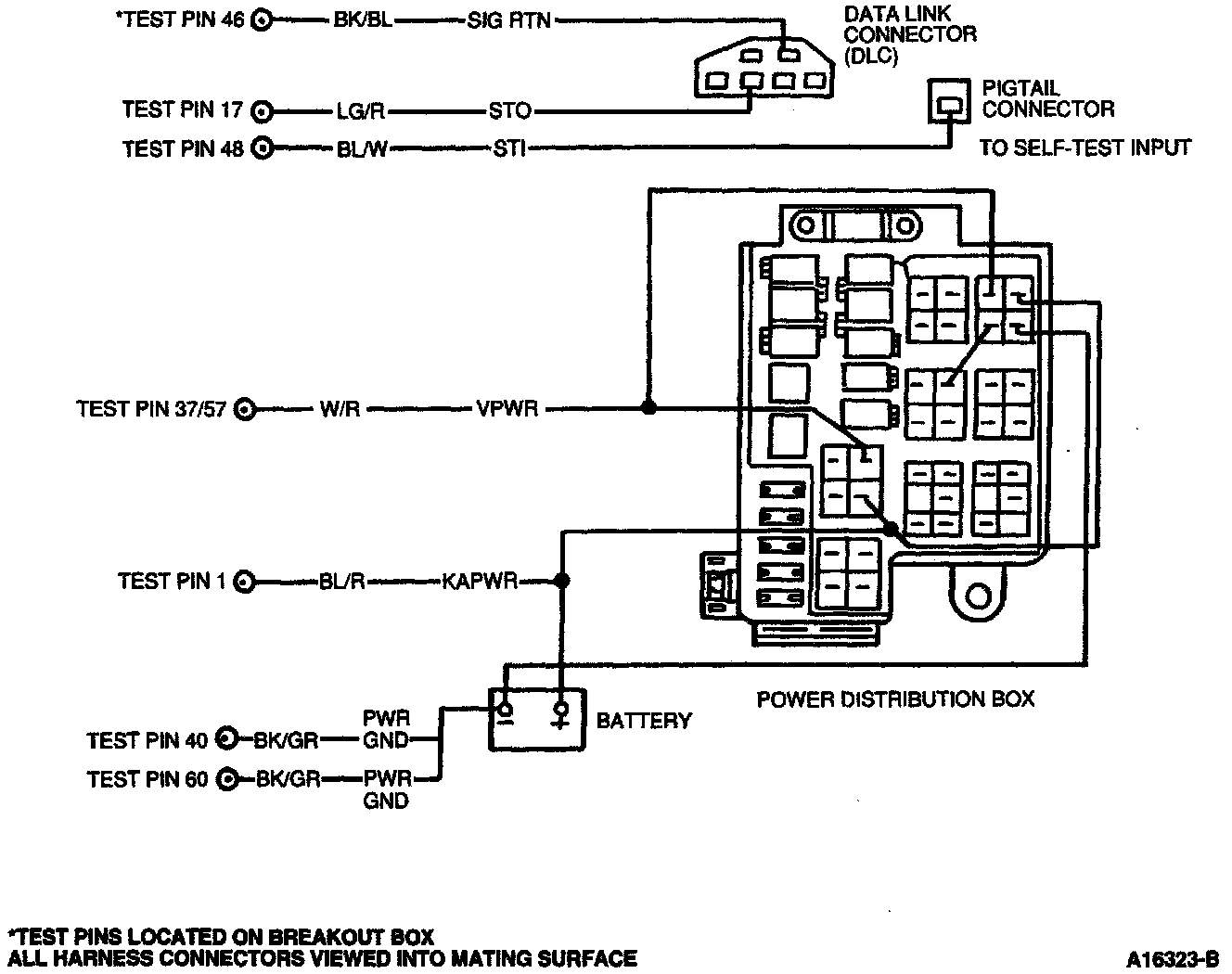

AC - Testing Schematic
AC - Testing Schematic
CIRCUIT / PIN / WIRE COLOR
IDM
/
pin 14
/
white/pink
IGN GND
/
pin 16
/
gray
