Instrument Cluster - Replacement

1. Disconnect battery ground cable and disarm airbag system.
2. Remove lower instrument panel steering column cover by removing three screws along bottom and pull on instrument panel steering column cover to unsnap three clips across top of instrument panel steering column cover.
3. Remove steering column shrouds.

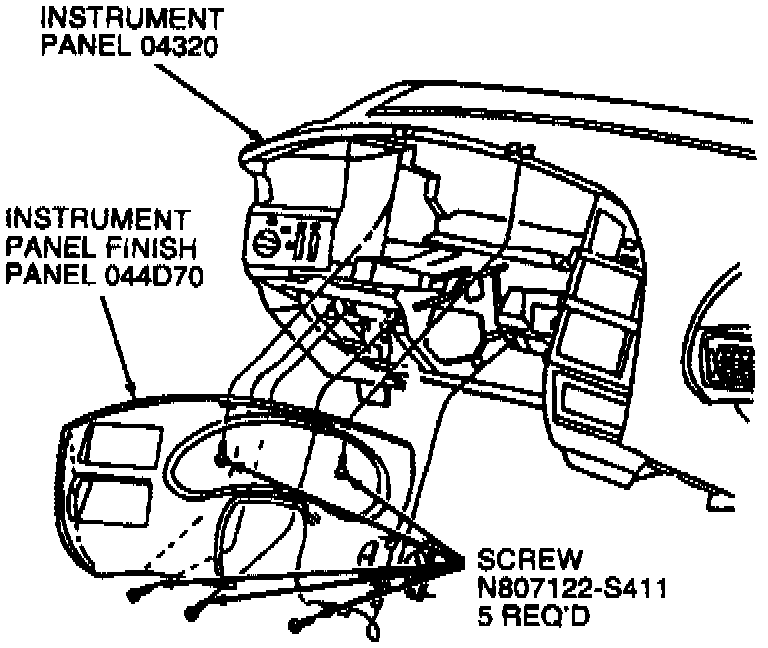

Instrument Panel Replacement (Part 1 Of 2):

Instrument Panel Replacement (Part 2 Of 2):

4. Remove two screws retaining cluster finish panel above the instrument cluster face.
5. Pull cluster instrument panel finish panel to unsnap one retaining clip above the lefthand A/C register.
6. Pull cluster finish panel to unsnap three retaining clips on right side vertical edge.
7. Pull cluster finish panel away from instrument panel far enough to disconnect the wiring connectors. Remove the finish panel.
8. Remove four screws retaining the instrument cluster to the instrument panel.
9. Pull instrument cluster out far enough to disconnect wiring and hoses.
10. Remove instrument cluster.
11. Reverse procedure to install.
