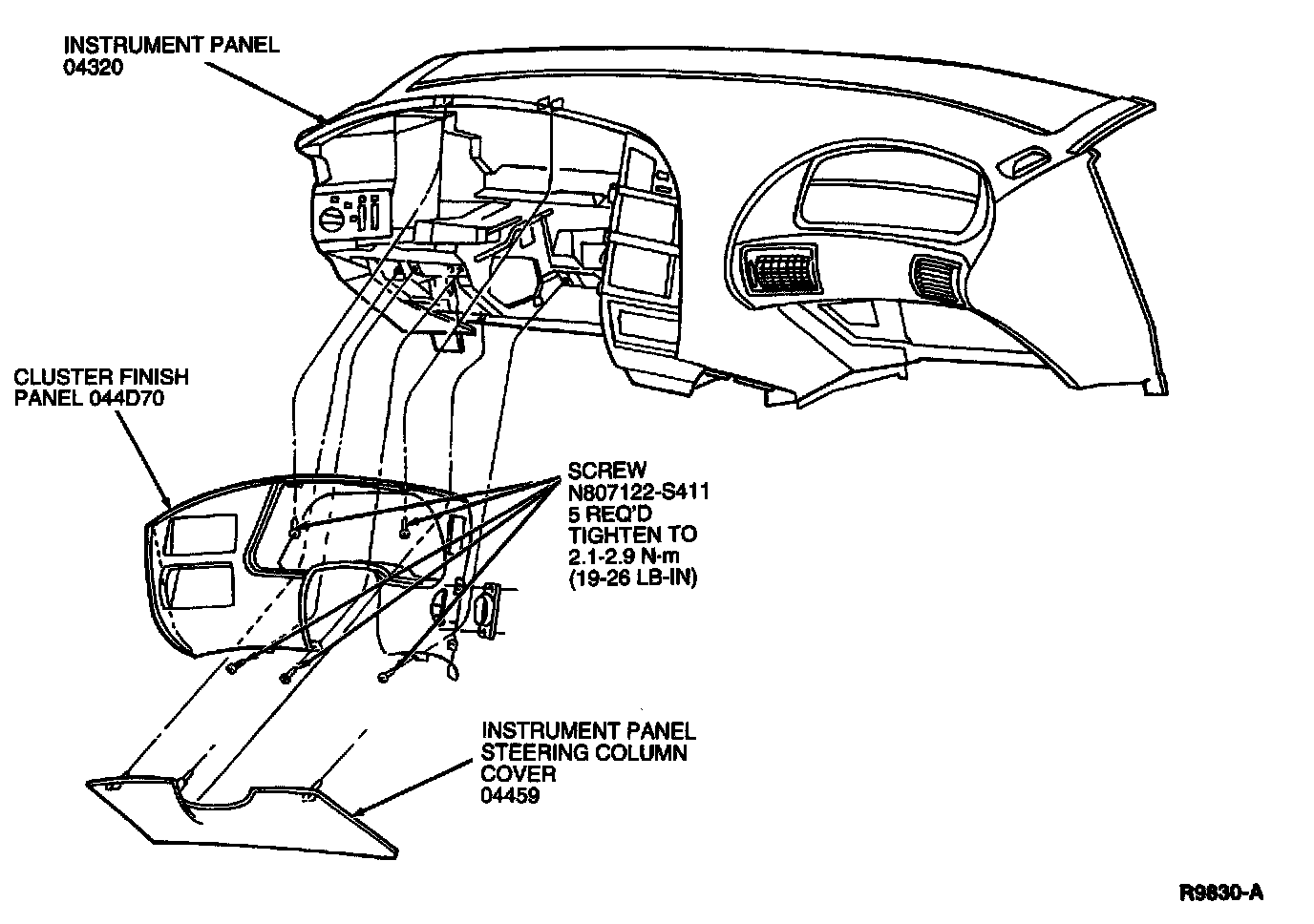

Instrument Cluster - Finish Panel

REMOVAL and INSTALLATION
1. Remove the lower instrument panel steering column cover by removing three screws along the bottom and pull on instrument panel steering column cover to unsnap the three clips across the top of the instrument panel steering column cover.
2. Remove the four screws retaining the steering column shrouds together and remove the steering column shrouds.
3. Remove the three screws retaining the bottom of the cluster instrument panel finish panel.
4. Remove two screws retaining the cluster instrument panel finish panel above the instrument cluster face.
5. Pull cluster instrument panel finish panel to unsnap one retaining clip above the left hand A/C register.
6. Pull cluster instrument panel finish panel to unsnap three retaining clips on the RH side vertical edge.
7. Pull cluster instrument panel finish panel away from instrument panel far enough to disconnect the wiring connector(s).
8. To install, reverse Removal procedure.
