FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1994
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
>>
Testing and Inspection
Fuel Gauge: Testing and Inspection

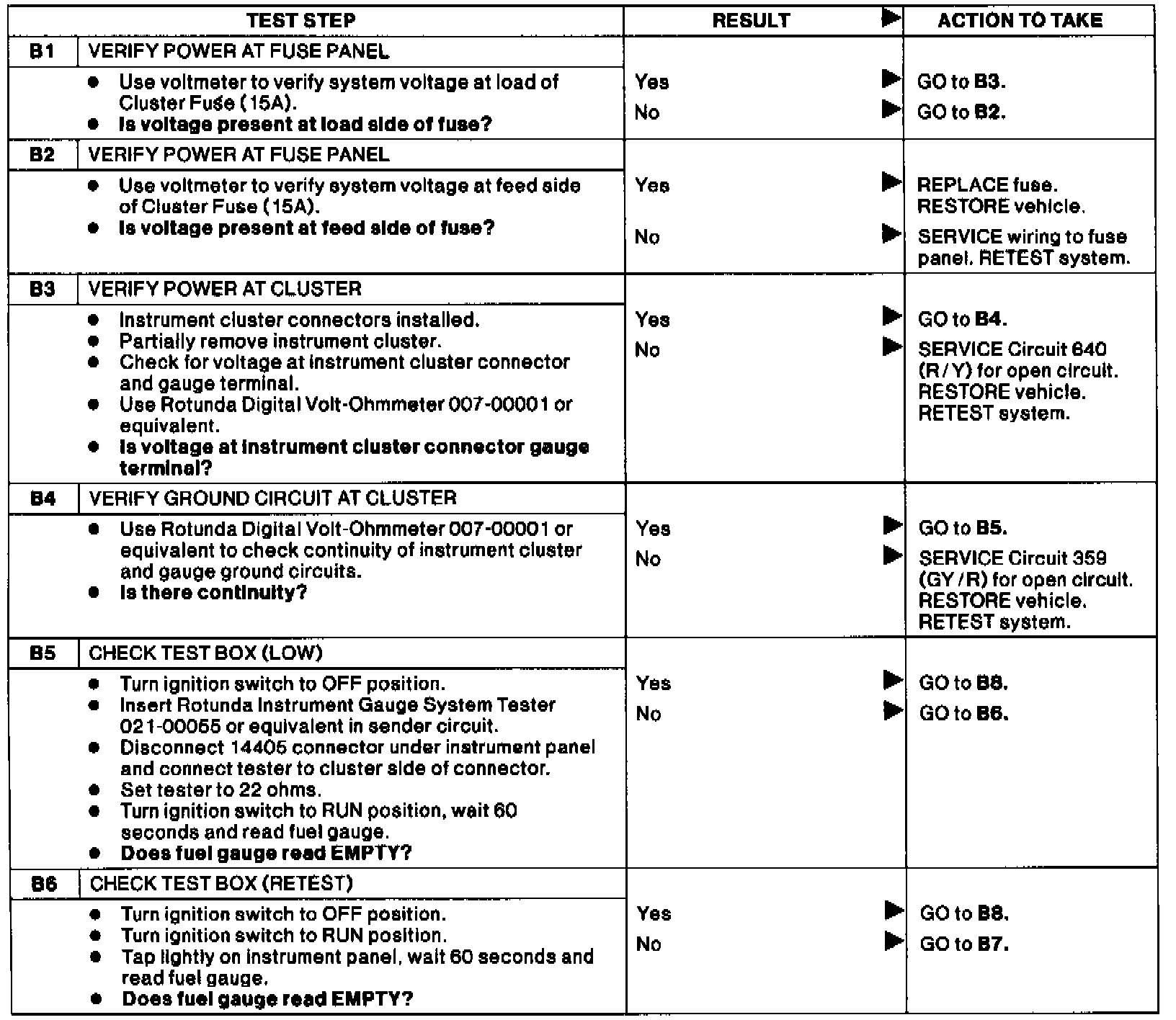

Test B: Fuel Level Reads Inaccurately.:
Test B1-B6

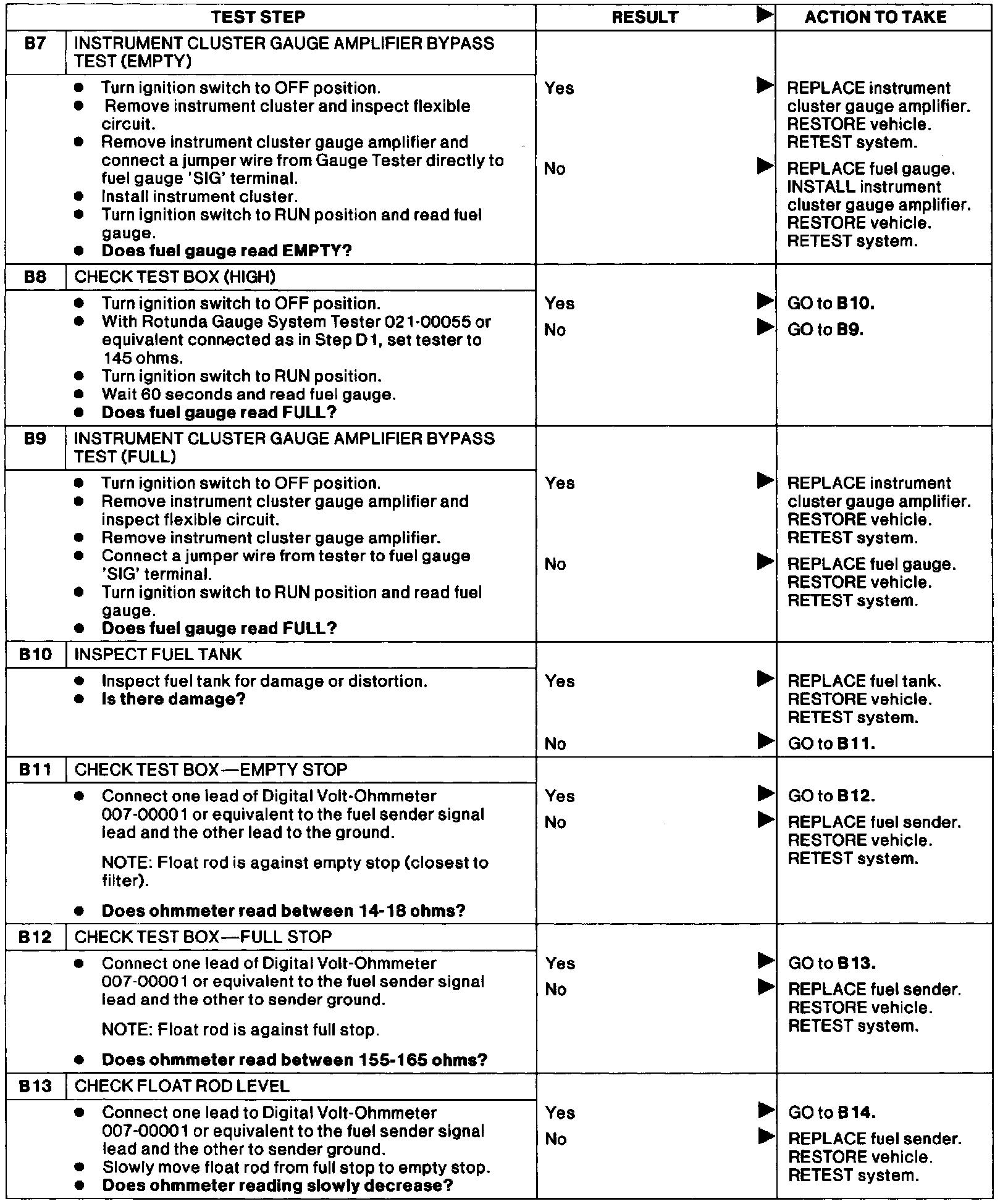

Test B: Fuel Level Reads Inaccurately.:
Test B7-B13

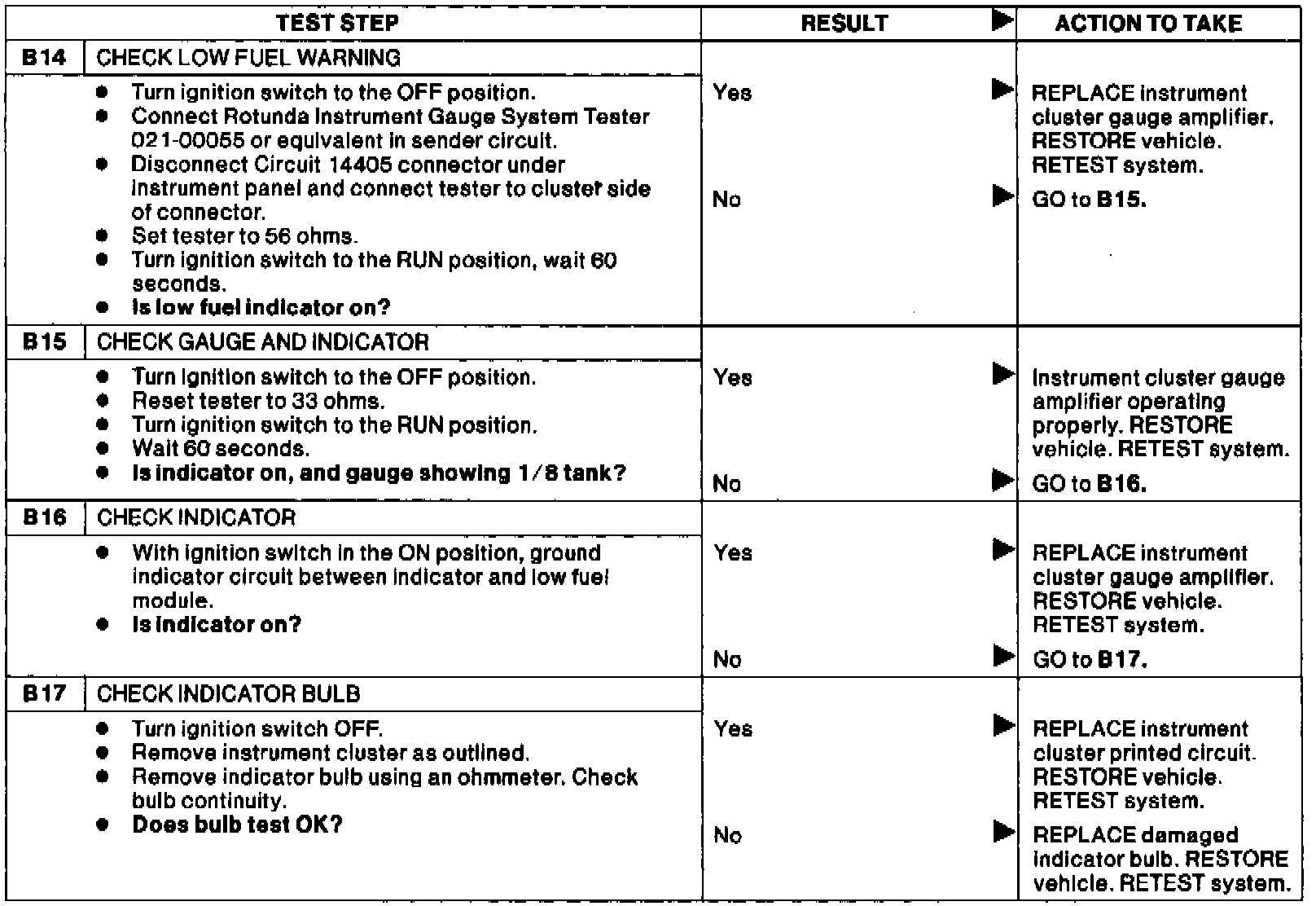

Test B: Fuel Level Reads Inaccurately.:
Test B14-B17
