Control Module HVAC: Locations

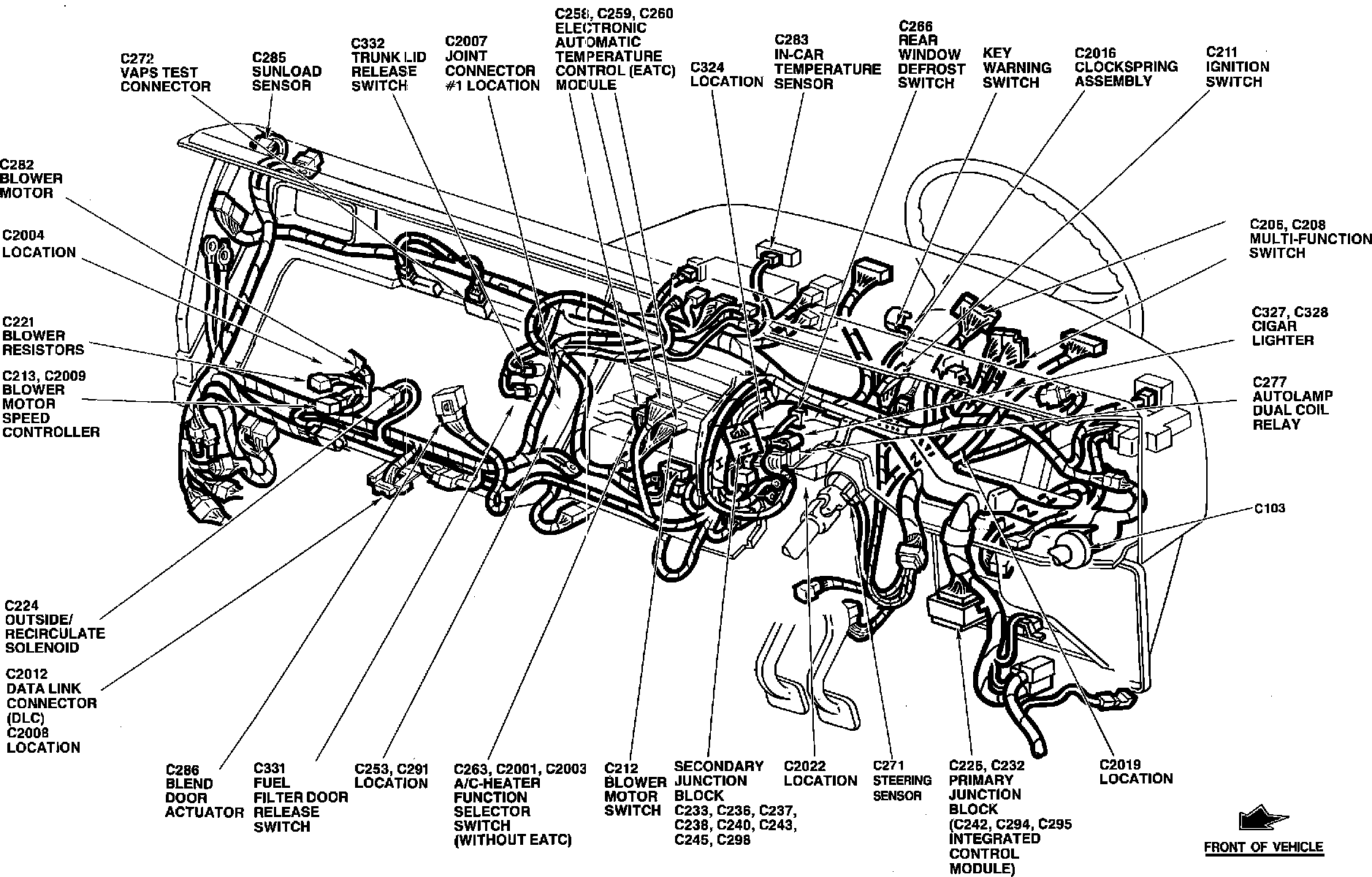

Component Locations:





The Electronic Automatic Temperature Control Module is located at center of instrument panel.
