Control Module HVAC: Diagrams

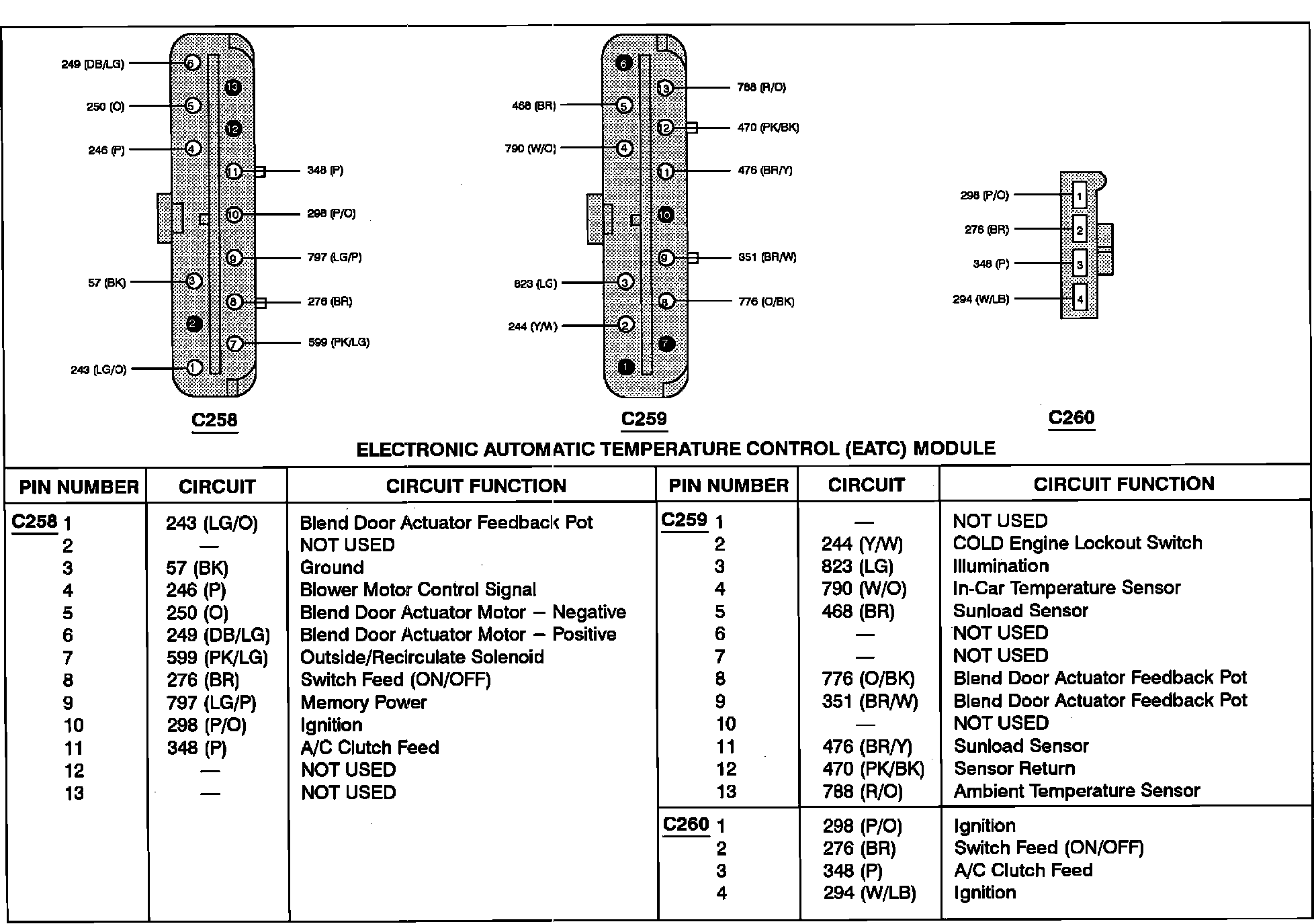

Electronic Automatic Temperature Control (EATC) Module:

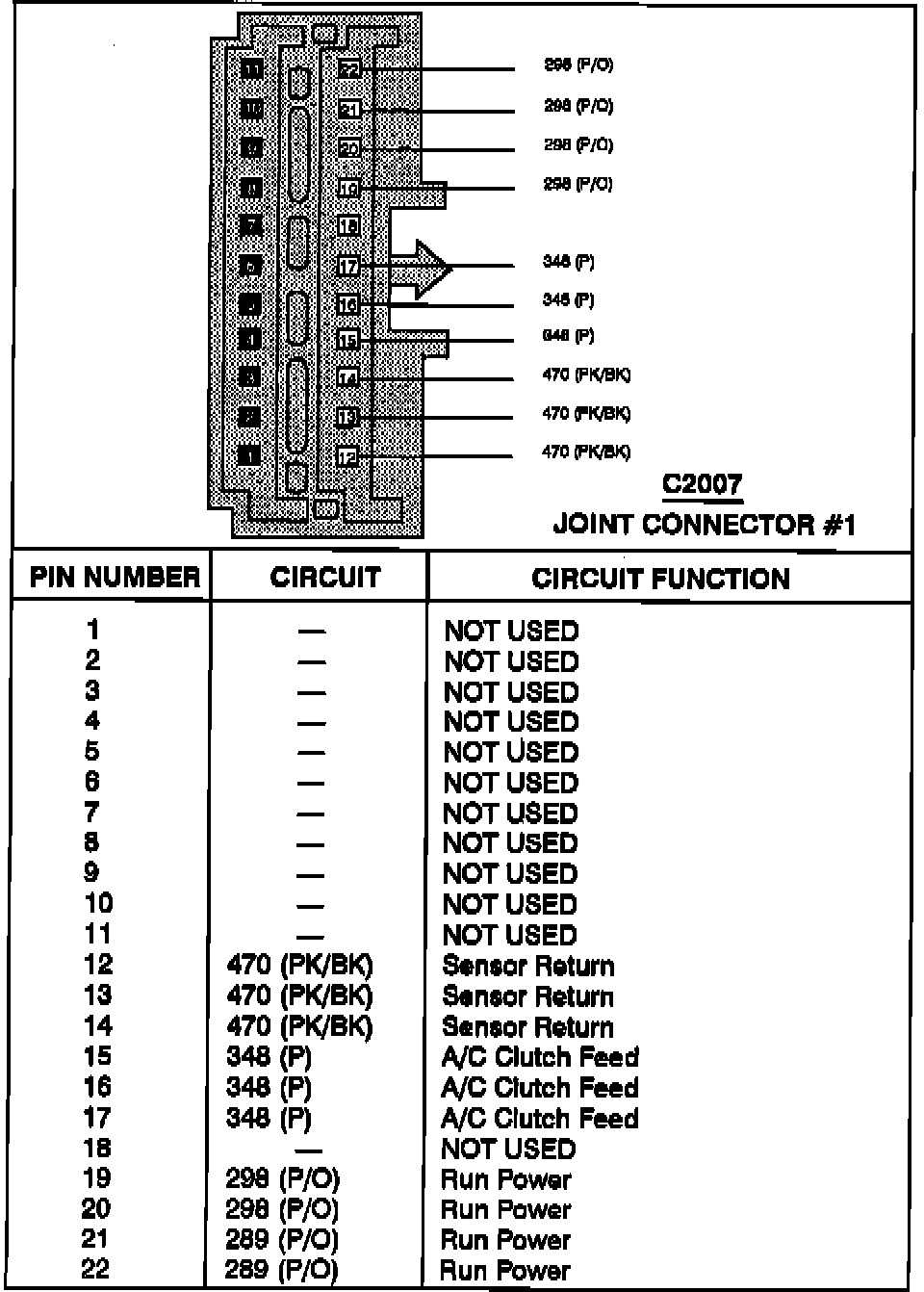

Joint Connector:
